Cisco

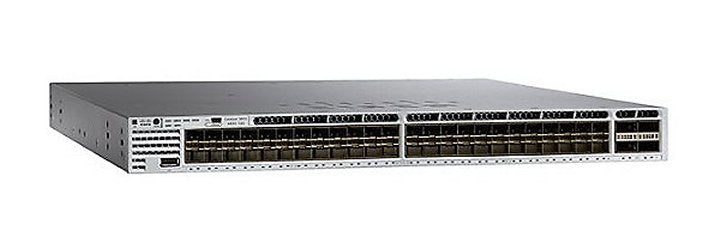

Cisco WS-C3850-48XS-F-E | Catalyst 3850 48-Port 10G SFP+ Switch, IP Services, 750W

SKU:WS-C3850-48XS-F-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-48XS-F-E is a stackable enterprise access and aggregation switch built for campus and wiring closet deployments that need 10G fibre downlinks. It combines wired switching with integrated wireless controller capability, so a single stack can carry converged wired and wireless services.

There are 48 fixed 1/10 Gigabit Ethernet SFP+ downlink ports and 4 fixed 40 Gigabit Ethernet QSFP+ uplinks. Switching capacity is 1280 Gbps with a forwarding rate of 909 Mpps, and StackWise-480 stacking provides 480 Gbps of stack bandwidth. This SKU runs the IP Services feature set (-E), which enables full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite. The -F suffix indicates front-to-back airflow, using the 750W AC PWR-C3-750WAC-F power supply. There is no PoE on this model.

The SFP+ downlink ports accept 1G and 10G SFP and SFP+ transceivers as well as CX1 cables. It is a 1RU rack-mount unit with 8 GB of DRAM and 8 GB of flash, and two power supply slots that can mix AC and DC supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise-480 stacking with 480 Gbps stack throughput
- Integrated wireless controller capability with mobility agent and mobility controller roles
- UADP ASIC with programmability for converged wired and wireless services
- Two power supply slots with redundant, field-replaceable power supplies and fans
- IP Services feature set with full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite
- Supports Cisco DNA Essentials and Advantage term licences with Cisco DNA Center
- Supports 1G and 10G SFP and SFP+ transceivers and CX1 cables on downlink ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C3850-48XS-F-E
- Downlink ports: 48 x 1/10G SFP+
- Uplinks: 4 x fixed 40G QSFP+
- Feature set: IP Services (-E)
- Airflow: Front-to-back (-F)
- Default power supply: PWR-C3-750WAC-F (750W AC)
- PoE: None
- Switching capacity: 1280 Gbps
- Forwarding rate: 909 Mpps
- Stacking: StackWise-480, 480 Gbps
- StackPower: No
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 8 GB
- Flash: 8 GB
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 51.1 cm
- Weight: 7.45 kg
- MTBF: 286,900 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, non-condensing
- Acoustic noise: 43 dB typical, 45 dB maximum

FAQs

Q: Which feature set does this SKU run?
A: The -E suffix denotes the IP Services feature set, which enables full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite.

Q: Is a Cisco DNA licence required?
A: No. Cisco DNA Essentials and Advantage term licences, such as C3850-DNA-E-48 and C3850-DNA-A-48, are optional and are not required to operate the switch.

Q: Does this switch provide PoE?
A: No. This model has no PoE budget. The default power supply is the PWR-C3-750WAC-F, a 750W AC unit with front-to-back airflow.

Q: What does the -F suffix mean?
A: It indicates front-to-back airflow, using the PWR-C3-750WAC-F power supply. This is the key difference from sibling SKUs with other airflow or power options.

Q: What can be connected to the downlink ports?
A: The 48 SFP+ downlink ports accept 1G and 10G SFP and SFP+ transceivers as well as CX1 cables. Stacking uses StackWise-480 stacking cables.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
