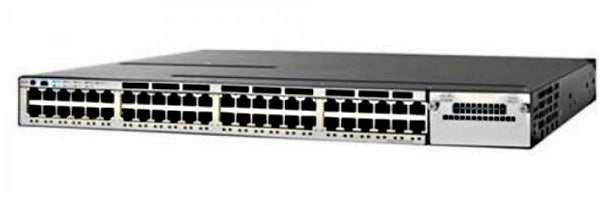

• Cisco WS-C3850-48W-S 48-port Gigabit PoE+ Ethernet Switch
1 1

Cisco

Cisco WS-C3850-48W-S | Catalyst 3850 48-Port Gigabit PoE+ Switch, 435W, IP Base

WS-C3850-48W-S

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3850-48W-S is an enterprise-class stackable access switch featuring 48 Gigabit Ethernet PoE+ ports with 435W power budget and integrated wireless controller capabilities. Built on the Unified Access Data Plane ASIC, it delivers converged wired and wireless services on a single platform with IP Base feature set, supporting up to 100 access points and 2000 wireless clients. Ideal for enterprise campus and branch deployments requiring high-density PoE connectivity with advanced Layer 2/3 switching and wireless convergence.

Features

Cisco StackWise-480 stacking technology with 480 Gbps bandwidth and stateful switchover for high availability
- Cisco StackPower technology for shared power redundancy across stack members in power-sharing or redundant mode
- Integrated wireless controller with Mobility Agent and Mobility Controller roles for converged wired-wireless deployment
- 40 Gbps wireless throughput per 48-port switch supporting 802.11ac Wave 2 access points
- Flexible NetFlow (FNF) for enhanced application visibility across wired and wireless traffic, up to 48,000 flow entries
- Advanced QoS and traffic shaping for voice, video, and data with up to 8 egress queues per port
- Comprehensive Layer 2 security: DHCP snooping, Dynamic ARP Inspection, IP Source Guard, port security
- 802.1X authentication with RADIUS, TACACS+, and downloadable ACLs
- Dual hot-swappable redundant power supplies and field-replaceable fans for maximum uptime
- Energy Efficient Ethernet (EEE) IEEE 802.3az for reduced power consumption during low traffic periods
- Cisco TrustSec and MACsec support for end-to-end network security
- AutoQoS for simplified deployment of voice and video applications
- Hot-swappable network modules for flexible uplink configurations without downtime
- Cisco Smart Operations tools including Auto Smartports, Smart Configuration, and Auto Install for simplified deployment
- IPv4 and IPv6 dual-stack support with comprehensive routing protocols

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Ethernet PoE+ (802.3at) ports, up to 30W per port
- PoE budget: 435W total with 1100W AC power supply included
- 1x modular network module slot supporting 4x 1G SFP, 2x 10G SFP+, or 4x 10G SFP+ uplinks (modules sold separately)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- MAC address table: 32,000 entries
- StackWise-480 technology: up to 9 switches with 480 Gbps stack bandwidth
- StackPower support: shared power redundancy across up to 4 switches
- Integrated wireless controller: supports up to 100 APs and 2000 clients per switch/stack (includes 5 AP licenses)
- Wireless throughput: 40 Gbps per 48-port switch
- Memory: 4GB DRAM, 2GB Flash
- IP Base feature set with 1K VLANs, Layer 3 routing, and wireless controller functionality
- Management: CLI, web UI, SNMP, 1x RJ-45 console, 1x Gigabit Ethernet management port, USB Type-A and mini-USB
- Dual redundant hot-swappable power supply bays (1x PSU included, second sold separately)
- Dimensions: 1RU (44.5 x 445 x 349 mm)
- Energy Efficient Ethernet (EEE) support

FAQs

Q: What network modules are compatible with the WS-C3850-48W-S?
A: The WS-C3850-48W-S supports the C3850-NM-4-1G (4x 1G SFP), C3850-NM-2-10G (4x 1G SFP / 2x 10G SFP+), and C3850-NM-4-10G (4x 10G SFP+) modules. Network modules are sold separately and are hot-swappable.

Q: Does the WS-C3850-48W-S support Layer 3 routing?
A: Yes, the IP Base feature set included with this model provides entry-level Layer 3 routing capabilities including static routing, RIP, OSPF, EIGRP, and policy-based routing. For advanced features like VRF-Lite and multicast routing, an IP Services license upgrade is required.

Q: How many wireless access points can this switch manage?
A: The WS-C3850-48W-S includes an integrated wireless controller that can manage up to 100 access points and 2000 wireless clients per switch or stack. It ships with 5 access point licenses included; additional licenses can be purchased separately.

Q: Can the WS-C3850-48W-S be stacked with other Catalyst 3850 models?
A: Yes, it supports StackWise-480 technology allowing stacking of up to 9 Catalyst 3850 switches with 480 Gbps of stack throughput. Stack members must run the same IOS feature set. StackWise cables are sold separately.

Q: What is the total PoE power budget available on this switch?
A: The WS-C3850-48W-S provides 435W of PoE+ power budget with the included 1100W AC power supply, delivering up to 30W per port (IEEE 802.3at). A second redundant power supply can be added for increased PoE capacity and redundancy.
