Cisco

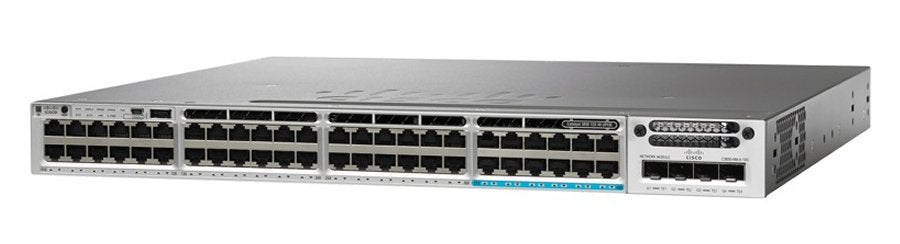

Cisco WS-C3850-48UW-S | Catalyst 3850 48-Port UPOE Switch, 800W, IP Base, 5 AP

SKU:WS-C3850-48UW-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port UPOE switch is a stackable access layer switch for enterprise campus and branch networks that need high-density UPOE and PoE+ for IP phones, wireless access points and UPOE devices. It combines wired and wireless access through an integrated wireless controller, with StackWise-480 stacking for resilient growth.

This SKU provides 48 x 10/100/1000 RJ-45 ports with Cisco UPOE delivering up to 60W per port, and 176 Gbps of switching capacity. It uses the 1100W AC power supply (PWR-C1-1100WAC) for an 800W PoE budget, which rises to 1900W with a second 1100W supply. Full 60W UPOE is available on up to 30 ports with two PWR-C1-1100WAC supplies. It ships with the IP Base feature set and a 5 access point licence bundle, which separates it from other 48-port 3850 variants.

Uplinks are added through the optional network modules C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. The two power supply slots accept PWR-C1-1100WAC, PWR-C1-715WAC, PWR-C1-350WAC and PWR-C1-440WDC units, and Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE delivers up to 60W per port for devices such as VDI clients, compact switches and physical access control
- Integrated wireless controller with mobility agent by default and mobility controller mode with IP Base
- StackWise-480 stacking and StackPower for shared power across stack members
- Dual modular power supply slots for redundancy, with AC or 440W DC options
- UADP ASIC with programmability for SDN readiness and Cisco ONE
- IP Base routing: static, RIP, EIGRP stub, OSPF for routed access and PBR
- Supports Cisco DNA Essentials and Advantage add-on term licences and SD-Access
- Optional uplink modules for 1G and 10G SFP and SFP+

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 RJ-45 with Cisco UPOE (60W per port)
- Default power supply: PWR-C1-1100WAC (1100W)
- Available PoE power (single 1100W PSU): 800W
- PoE budget with second 1100W PSU: 1900W
- UPOE (60W) on up to 30 ports requires two PWR-C1-1100WAC
- Switching capacity: 176 Gbps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- Forwarding rate: 130.95 Mpps
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Access points per switch or stack: 100
- Wireless clients per switch or stack: 2000
- Uplink module options: C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
- Dimensions (H x W x D): 4.45 x 44.5 x 48.8 cm (1RU)
- Weight: 8.0 kg
- Operating temperature (AC PSU): -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95% non-condensing
- PSU input: 115-240 VAC, 50-60 Hz

FAQs

Q: Which licence does this switch ship with?
A: It ships with the IP Base feature set, as indicated by the -S suffix, and the 5 AP licence bundle. IP Base is also what mobility controller mode requires. Cisco DNA Essentials or Advantage term licences are optional and only needed for SD-Access and DNA Center features.

Q: What is the PoE budget with one power supply?
A: A single PWR-C1-1100WAC provides an 800W PoE budget. A second 1100W supply raises this to 1900W.

Q: How many ports can deliver full 60W UPOE?
A: Full 60W UPOE is available on up to 30 ports of this 48-port switch, and it requires two PWR-C1-1100WAC power supplies. Ports also supply standard 802.3af and 802.3at PoE+.

Q: Which uplink modules does it support?
A: The supported network modules are C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. These add 1G or 10G SFP and SFP+ uplinks.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes. It supports StackWise-480 stacking at 480 Gbps with other Catalyst 3850 switches, plus StackPower for sharing power across the stack.

Q: How does this SKU differ from other 48-port Catalyst 3850 models?
A: This model has 48 UPOE ports, the IP Base feature set, a 5 AP licence bundle and an 1100W power supply giving 800W of PoE.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
