Cisco

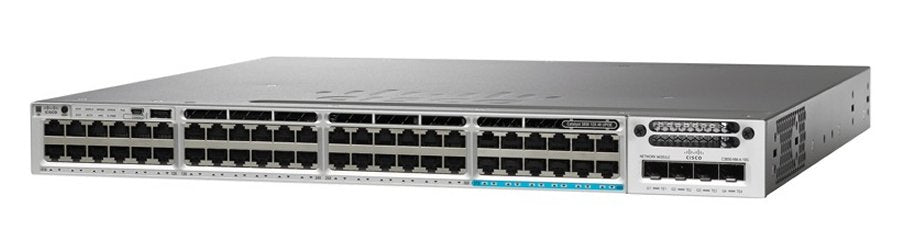

Cisco WS-C3850-48U-S | Catalyst 3850 48-Port UPOE Switch, 1100WAC, IP Base

SKU:WS-C3850-48U-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-48U-S is a stackable 1 RU enterprise access switch with 48 10/100/1000 Cisco UPOE ports, each able to deliver up to 60W. It suits campus and branch access layers that need converged wired and wireless access, as well as high-power endpoints such as VDI clients, IP turret systems, TelePresence units and access control hardware.

This model ships with the IP Base feature set and a default PWR-C1-1100WAC power supply providing 800W of PoE budget. A second 1100W supply raises the budget to 1900W. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and StackWise-480 provides 480 Gbps of stacking bandwidth. Uplinks are added through optional network modules, and the switch supports up to 100 access points and 2000 wireless clients through its integrated wireless controller capability.

It works with the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules, StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M) and StackPower cables. It stacks only with other Catalyst 3850 IP Base switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability with mobility agent and mobility controller modes
- Cisco UPOE delivering up to 60W per port
- StackWise-480 stacking with up to nine switches per stack
- StackPower power sharing across stack members
- Dual redundant modular power supplies and three modular fans
- Flexible NetFlow across wired and wireless traffic
- 802.1X, MACsec-128, DHCP snooping, Dynamic ARP Inspection and IP Source Guard
- IPv4/IPv6 routing, policy-based routing and OSPF routed access in IP Base
- Cisco Catalyst SmartOperations including Smart Install and Auto Smartports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C3850-48U-S
- Ports: 48 x 10/100/1000 Cisco UPOE (up to 60W per port)
- Feature set: IP Base
- Default power supply: PWR-C1-1100WAC
- Available PoE power: 800W
- PoE budget with 1100W secondary power supply: 1900W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackWise-480 / StackPower: Yes / Yes
- Compatible network modules: C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 8.0 kg (17.6 lb)
- Input voltage (PWR-C1-1100WAC): 115-240 VAC, 50-60 Hz
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, noncondensing

FAQs

Q: Which licence does this switch run?
A: It ships with the IP Base feature set. IP Services is available as an upgrade through the C3850-48-S-E RTU licence. Optional Cisco DNA Essentials or Advantage term licences enable SD-Access.

Q: How much PoE power does it provide?
A: With the default PWR-C1-1100WAC supply it provides 800W of PoE budget. Adding a second 1100W supply raises this to 1900W. UPOE at 60W on up to 30 ports requires two PWR-C1-1100WAC supplies.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules for 1G and 10G uplinks.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M). It can only stack with other Catalyst 3850 IP Base switches, as LAN Base, IP Base and IP Services models cannot be mixed in one stack.

Q: How does it differ from other 3850 48-port models?
A: This SKU combines 48 UPOE ports, the 1100WAC power supply and the IP Base feature set. Sibling models differ by PoE type, power supply or feature set.
