Cisco

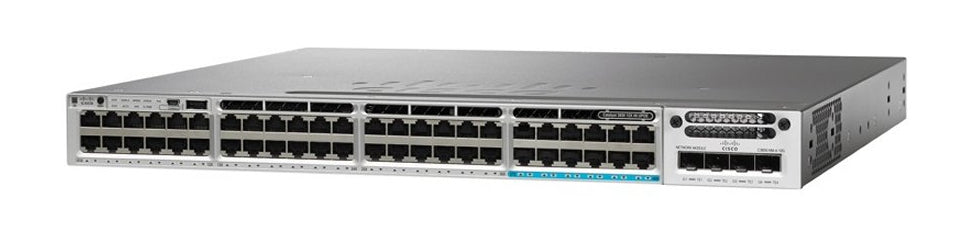

Cisco WS-C3850-48U-L | Catalyst 3850 48-Port UPOE Switch, 800W, LAN Base

SKU:WS-C3850-48U-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-48U-L is a stackable 1RU access switch with 48 10/100/1000 Cisco UPOE ports, each able to deliver up to 60W. It suits enterprise campus and branch access layers that need high-power PoE for IP phones, access points, video endpoints and other powered devices, and it also suits converged wired and wireless deployments that use the integrated wireless controller.

This model provides 800W of available PoE power with the default 1100W AC power supply, rising to 1900W with a second 1100W supply. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps. StackWise-480 gives 480 Gbps of stacking bandwidth, and StackPower shares power across stack members. It ships with the LAN Base feature set on the universal Cisco IOS XE image, so full dynamic routing such as OSPF, EIGRP and BGP needs the IP Services feature set.

Uplinks are provided by optional network modules: C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G are supported on this 48-port UPOE model. The integrated controller supports up to 100 access points and 2000 clients per switch or stack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE delivers up to 60W per port, with IEEE 802.3at PoE+ (30W) also supported
- Cisco StackWise-480 stacking with 480 Gbps of stack throughput
- Cisco StackPower for power redundancy across stack members
- Dual redundant modular power supplies and three modular fans
- Integrated wireless LAN controller for converged wired and wireless deployments
- Energy-Efficient Ethernet (EEE) on copper ports
- Single universal Cisco IOS XE image across all feature sets
- UADP ASIC enabling uniform wired and wireless policy, Flexible NetFlow and application visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 Cisco UPOE (up to 60W per port)
- Available PoE power: 800W with the default 1100W AC power supply
- PoE budget with second 1100W power supply: 1900W
- Default power supply: PWR-C1-1100WAC
- Optional power supply: PWR-C1-440WDC
- Uplink network modules: C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking: StackWise-480, 480 Gbps
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Wireless: up to 100 access points, 2000 clients, 64 WLANs
- Dimensions (H x W x D): 4.45 x 44.5 x 48.8 cm (1RU)
- Weight: 8.0 kg
- Operating temperature: -5 to 45 C
- Storage temperature: -40 to 70 C
- Operating humidity: 5 to 90% non-condensing
- MTBF: 205,110 hours

FAQs

Q: Which feature set does the WS-C3850-48U-L run?
A: The -L suffix denotes the LAN Base feature set. IP Base and IP Services are higher feature sets on the same universal image, and full OSPF, EIGRP and BGP routing requires IP Services.

Q: What PoE budget does this switch provide?
A: With the default PWR-C1-1100WAC power supply it provides 800W of available PoE power. Adding a second 1100W supply raises the budget to 1900W.

Q: Which uplink network modules work with this model?
A: The C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G modules are supported on this 48-port UPOE switch.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes. It supports StackWise-480 stacking at 480 Gbps with other Catalyst 3850 switches, and StackPower for shared power redundancy.

Q: How does this differ from other 48-port Catalyst 3850 variants?
A: This SKU has 48 UPOE ports delivering up to 60W each, 800W of available PoE and the LAN Base feature set. Other variants differ in PoE type, PoE budget or feature set.
