Cisco

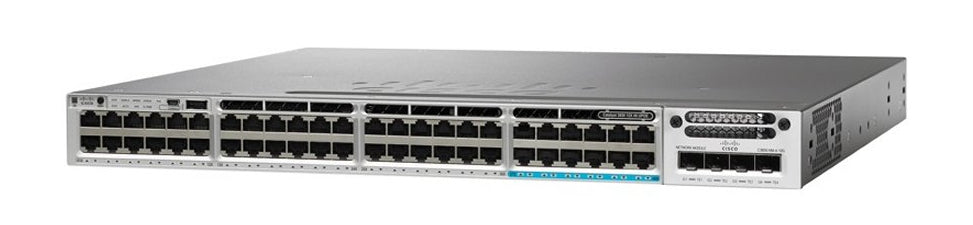

Cisco WS-C3850-48U-E | Catalyst 3850 48-Port Gigabit UPOE Switch, IP Services

SKU:WS-C3850-48U-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port UPOE switch is a stackable 1 RU enterprise access switch for converged wired and wireless campus and branch networks. It suits UPOE-powered endpoints such as VDI clients, IP turrets, compact switches, TelePresence and physical access control, alongside PoE+ phones and access points, and it supports SD-Access deployments through Cisco DNA licensing.

This model provides 48 x 10/100/1000 Ethernet ports with Cisco UPOE at up to 60W per port. It has 176 Gbps switching capacity and a 130.95 Mpps forwarding rate, with 4 GB DRAM and 2 GB flash. It ships as the IP Services model with a PWR-C1-1100WAC power supply, giving 800W of available PoE. A second 1100WAC supply raises the PoE budget to 1900W and allows UPOE on up to 30 ports. StackWise-480 delivers 480 Gbps of stacking bandwidth, with StackPower for power sharing across the stack. The integrated wireless controller handles up to 100 access points and 2000 clients.

Optional uplink modules are C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. StackWise-480 cables STACK-T1-50CM, STACK-T1-1M and STACK-T1-3M and StackPower cables CAB-SPWR-30CM and CAB-SPWR-150CM are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE at 60W per port, with up to 30 ports at full UPOE using two 1100WAC supplies
- Integrated wireless controller in mobility agent and mobility controller modes
- Cisco StackWise-480 stacking with SSO resiliency, up to nine switches per stack
- Cisco StackPower power sharing and redundancy across stack members
- Layer 3 routing including OSPF, EIGRP, BGP, IS-IS, PIM and IPv6 with IP Services
- Security features including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and MACsec
- Flexible NetFlow for wired and wireless application visibility
- Modular redundant power supplies and field-replaceable fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 Cisco UPOE (60W per port)
- Feature set: IP Services
- Power supply: PWR-C1-1100WAC
- Available PoE power: 800W
- PoE budget with 1100W secondary PS: 1900W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking bandwidth: StackWise-480, 480 Gbps
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Jumbo frame: 9198 bytes
- Wireless access points per switch or stack: 100
- Wireless clients per switch or stack: 2000
- Wireless bandwidth per switch: up to 40 Gbps
- Dimensions (H x W x D): 1.75 x 17.5 x 17.7 in (4.45 x 44.5 x 45.0 cm)
- Weight: 17.6 lb (8.0 kg)
- PSU input: 115-240 VAC, 50-60 Hz
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 10% to 95%, noncondensing

FAQs

Q: Which feature set does this switch run?
A: The -E suffix indicates the IP Services feature set, the highest tier. It can only stack with other Catalyst 3850 switches running the same feature set.

Q: How many ports can deliver full 60W UPOE?
A: Up to 30 ports can deliver full UPOE at once, and this requires two PWR-C1-1100WAC power supplies. With a single 1100WAC supply the switch provides 800W of available PoE.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules.

Q: Which cables are used for stacking?
A: StackWise-480 stacking uses STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables. StackPower uses CAB-SPWR-30CM or CAB-SPWR-150CM.

Q: Does it need extra licences to act as a wireless controller?
A: Additional access point licences are required if the switch operates in mobility controller mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
