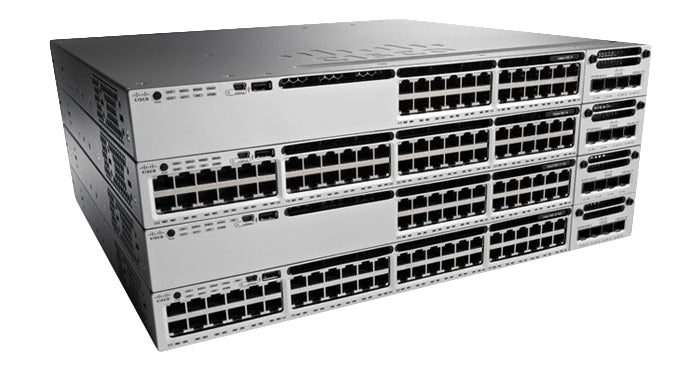

Cisco WS-C3850-48T-L | Catalyst 3850 48-Port Gigabit Switch, LAN Base

SKU:WS-C3850-48T-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable, fixed-configuration 1RU access switch for enterprise campus and branch networks. This 48-port data-only model suits deployments that need dense gigabit wired connectivity with no PoE requirement, and it combines wired and wireless services with an integrated wireless controller on a single IOS XE platform.

It provides 48 x 10/100/1000 Ethernet ports with 176 Gbps switching capacity and a 130.95 Mpps forwarding rate. StackWise-480 delivers 480 Gbps of stacking bandwidth, and StackPower is supported for power redundancy across stack members. The unit has dual redundant power supply slots, and the LAN Base feature set provides Layer 2 focused switching with limited static routing. Table sizes include 32,000 MAC addresses, 4,000 VLAN IDs and 1,000 SVIs.

Uplink connectivity is added through optional network modules, with the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G modules supported on this model. An SFP+ port accepts both 10G and 1G modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability for up to 100 access points and 2000 wireless clients per switch or stack
- Cisco StackWise-480 stacking with 480 Gbps of stack throughput
- Cisco StackPower for power sharing and redundancy among stack members
- Dual redundant modular power supplies and field-replaceable fans
- Optional uplink network modules for 1G and 10G uplinks
- UADP ASIC with programmability for SDN readiness
- Single universal IOS XE image across all licence levels
- Energy-Efficient Ethernet (EEE) support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet (data only, no PoE)
- Uplinks: optional network modules C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
- Feature set: LAN Base
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking: StackWise-480, 480 Gbps
- StackPower: Yes
- Default power supply: PWR-C1-350WAC, dual redundant PSU slots
- Input voltage: 100-240 VAC auto-ranging
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1RU)
- Weight: 7.7 kg (excluding uplink module)
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, non-condensing
- MTBF: 303,660 hours

FAQs

Q: Which licence tier does this SKU ship with?
A: The -L suffix indicates the LAN Base feature set, which is Layer 2 focused with limited static routing. A single universal IOS XE image is used across licence levels, with an upgrade path to IP Base and IP Services.

Q: Does this switch provide PoE?
A: No. This is the data-only 48-port model, so there is no PoE budget available. For powered devices, a PoE variant of the Catalyst 3850 is required.

Q: Which uplink modules does it support?
A: The supported uplink network modules for this model are C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. An SFP+ port accepts both 10G and 1G modules.

Q: Which power supply does it use?
A: The default power supply is the PWR-C1-350WAC, which accepts 100-240 VAC. A second power supply can be added for redundancy, with the first installed in bay 1.

Q: Can it be stacked?
A: Yes. It supports StackWise-480 stacking with other Catalyst 3850 switches for 480 Gbps of stack bandwidth, and StackPower is also supported.
