Cisco

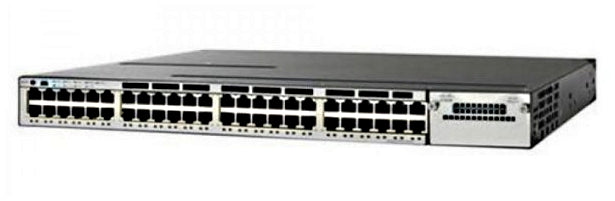

Cisco WS-C3850-48PW-S | Catalyst 3850 48-Port PoE+ Switch, 715W, IP Base, 5 AP Licences

SKU:WS-C3850-48PW-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 48-port Gigabit PoE+ Layer 3 access switch with built-in wireless controller capability. It suits enterprise campus and branch access layers where one platform needs to deliver wired access, power IP phones and wireless access points, and act as the wireless mobility controller. It also suits stackable wiring-closet deployments that need resiliency.

This SKU provides 48 x 10/100/1000 PoE+ ports (IEEE 802.3at, up to 30W per port) and ships with a 715WAC power supply, giving 435W of available PoE power. A second supply such as the PWR-C1-1100WAC raises the PoE budget to 1535W. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and StackWise-480 provides 480 Gbps of stack bandwidth. It is licensed with the IP Base feature set plus 5 access point licences, and can support up to 100 access points and 2000 wireless clients per switch or stack.

Optional uplink network modules (C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G) add 1G or 10G uplinks. Stacking is with other Catalyst 3850 switches running the same feature set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability, in mobility agent and mobility controller modes
- Cisco UADP ASIC for uniform wired and wireless policy enforcement and application visibility
- StackWise-480 stacking with SSO resiliency for up to nine switches, plus StackPower for power redundancy
- Dual redundant modular power supplies and field-replaceable fans
- Flexible NetFlow for wired and wireless traffic visibility
- Hierarchical wireless QoS per AP, radio, SSID and user, with MQC-based wired QoS
- Security features including 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, CoPP and MACsec
- IPv4/IPv6 routing, multicast and Energy-Efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+ (IEEE 802.3at, up to 30W per port)
- Default power supply: PWR-C1-715WAC (715W)
- Available PoE power: 435W (1535W with 1100W secondary power supply)
- Feature set: IP Base with 5 access point licences
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (with 4 x 10G uplinks)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackPower: Supported
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces (SVIs): 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients per switch or stack, 64 WLANs per switch
- Wireless bandwidth per switch: up to 40 Gbps
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 7.9 kg
- Input voltage (PWR-C1-715WAC): 100-240VAC, 50-60 Hz
- Operating temperature (AC supply): -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, non-condensing
- MTBF: 241,050 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the IP Base feature set plus 5 access point licences. IP Base can be upgraded to IP Services through an RTU licence. Additional AP licences (LIC-CTIOS-1A) are needed beyond the 5 bundled when it operates as a mobility controller.

Q: How much PoE power does it provide?
A: With the 715WAC power supply it provides 435W of available PoE power. Adding a second supply such as the PWR-C1-1100WAC raises this to 1535W. Delivering 30W PoE+ on all 48 ports requires one 1100WAC plus one 715WAC supply, or two 1100WAC supplies.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules for 1G and 10G uplinks.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3850 switches over StackWise-480 using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables. All stack members must run the same feature set, in this case IP Base.

Q: Which access points does it support as a wireless controller?
A: It supports Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points, up to 100 APs and 2000 clients per switch or stack.
