Cisco

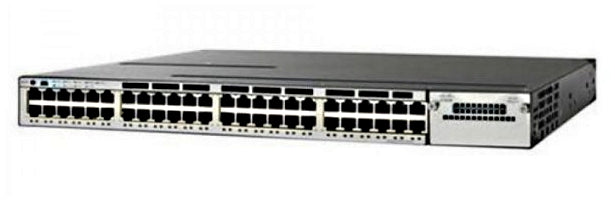

Cisco WS-C3850-48P-S | Catalyst 3850 48-Port PoE+ Switch, 435W, IP Base

SKU:WS-C3850-48P-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 1RU enterprise access switch for campus and branch wiring closets that need converged wired and wireless access. This IP Base model powers PoE+ devices such as IP phones, Aironet access points and cameras from its 48 Gigabit ports.

It provides 48 x 10/100/1000 PoE+ ports (IEEE 802.3at, up to 30W per port) with 176 Gbps switching capacity and a 130.95 Mpps forwarding rate. The default PWR-C1-715WAC power supply delivers 435W of PoE budget, rising to 1535W with a secondary 1100W supply. StackWise-480 offers 480 Gbps of stack bandwidth, StackPower is supported, and optional uplink modules add 1G or 10G ports. The integrated wireless controller handles up to 100 access points and 2000 clients.

It ships with the IP Base feature set and stacks only with other 3850 IP Base switches. Supported uplink modules are C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G, with StackWise-480 cables in 50cm, 1m and 3m lengths.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller
- Cisco UADP ASIC for uniform wired and wireless policy, QoS and Flexible NetFlow visibility
- StackWise-480 stacking with SSO resiliency for up to nine switches, plus StackPower sharing
- Full IEEE 802.3at PoE+ with 30W available on all copper ports, subject to power supply configuration
- Dual redundant modular power supply bays and three field-replaceable fans
- Hierarchical wireless QoS per AP, radio, SSID and user, plus MQC-based QoS
- Security including 802.1X, port security, DHCP snooping, DAI, IP source guard, CoPP and MACsec-128
- Cisco Catalyst SmartOperations with Smart Install, Auto Smartports and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+ (Gigabit Ethernet)
- PoE standard: IEEE 802.3at, up to 30W per port
- Default power supply: PWR-C1-715WAC (715W AC)
- Available PoE power: 435W (1535W with 1100W secondary power supply)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (with 4 x 10GbE uplinks)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients, 64 WLANs, up to 40 Gbps
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1U)
- Weight: 7.9 kg
- MTBF: 241,050 hours
- Operating temperature (AC supply): -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing
- Power supply input: 100-240 VAC, 50-60 Hz

FAQs

Q: What licence does the WS-C3850-48P-S use?
A: It ships with the IP Base feature set. It can be upgraded to IP Services through an RTU licence (C3850-48-S-E), and Cisco DNA Essentials or Advantage term licences are optional add-ons.

Q: How much PoE power does it provide?
A: With the default PWR-C1-715WAC supply it provides 435W of PoE. Adding a secondary 1100W supply raises this to 1535W. Full 30W PoE+ on all 48 ports needs two PWR-C1-1100WAC supplies or one 1100WAC plus one 715WAC.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules. The C3850-NM-8-10G and 2-40G modules are not supported on this model.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M). It can only be stacked with other 3850 IP Base switches, not with LAN Base or IP Services units.

Q: Does it need an AP licence to manage wireless access points?
A: An AP licence is only required when the switch operates as a mobility controller. In the default mobility agent mode no AP licence is needed.
