Cisco

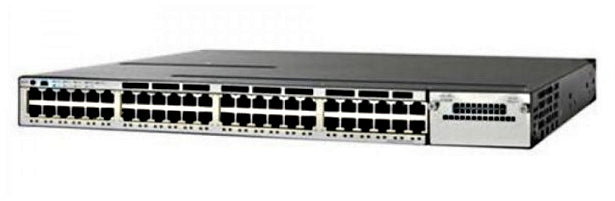

Cisco WS-C3850-48P-L | Catalyst 3850 48-Port PoE+ Switch, 715W AC, LAN Base

SKU:WS-C3850-48P-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port Gigabit PoE+ switch is a stackable 1RU enterprise access switch for wiring closets that need converged wired and wireless access. It suits campus and office deployments powering IP phones, access points and cameras over PoE+, and it integrates wireless controller capability on the UADP ASIC.

This SKU provides 48 10/100/1000 PoE+ ports (IEEE 802.3at, up to 30W per port) and ships with the 715W AC power supply, giving 435W of available PoE. Fitting a secondary 1100W supply raises the PoE budget to 1535W. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and StackWise-480 provides 480 Gbps of stack bandwidth with StackPower support. It runs the LAN Base feature set, with up to 255 VLANs, and can be upgraded to IP Base or IP Services using Right-To-Use licences.

Optional uplink network modules (C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G) add 1G or 10G uplinks. It stacks with other Catalyst 3850 LAN Base switches and works with a wide range of Cisco Aironet access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, mobility agent by default with mobility controller mode supported
- Full IEEE 802.3at PoE+ with 30W on all copper ports in 1RU
- Cisco StackWise-480 stacking with Stateful Switchover (SSO) resiliency
- Cisco StackPower for power sharing and redundancy across stack members
- Dual redundant modular power supplies and three field-replaceable fans
- Flexible NetFlow for wired and wireless traffic visibility
- Hierarchical wired and wireless QoS with 8 egress queues per port
- Security features including 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and MACsec-128
- Energy-Efficient Ethernet (EEE) on RJ-45 ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+ (IEEE 802.3at, up to 30W per port)
- Default power supply: PWR-C1-715WAC (715W AC)
- Available PoE power: 435W with the default supply
- PoE budget with 1100W secondary supply: 1535W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (with 4 x 10G uplinks)
- Stacking: StackWise-480, 480 Gbps stack bandwidth
- StackPower: Supported
- Feature set: LAN Base (up to 255 VLANs)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1RU)
- Weight: 7.9 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing
- Management connectors: RJ-45 Ethernet management port and RJ-45 console
- Optional uplink modules: C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G

FAQs

Q: What licence does this switch ship with?
A: It ships with the LAN Base feature set, indicated by the -L suffix. It can be upgraded to IP Base or IP Services using Right-To-Use licences. Mixed stacks of LAN Base with IP Base or IP Services are not supported.

Q: How much PoE budget does it provide?
A: With the default 715W AC power supply it provides 435W of PoE. Adding a secondary 1100W supply raises the budget to 1535W. PoE+ at 30W on all 48 ports needs two PWR-C1-1100WAC supplies or one 1100W plus one 715W.

Q: Does it include uplink ports?
A: Uplinks are provided by optional network modules: C3850-NM-4-1G, C3850-NM-2-10G or C3850-NM-4-10G. Choose the module that matches your required uplink speed.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3850 LAN Base switches over StackWise-480 using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables, giving 480 Gbps of stack bandwidth. StackPower cables CAB-SPWR-30CM and CAB-SPWR-150CM are sold separately.

Q: Which power supplies are compatible?
A: Compatible supplies are PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC and the 440W DC supply. The switch has dual redundant power supply bays.
