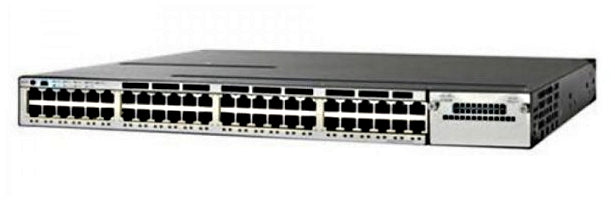

Cisco WS-C3850-48P-E | Catalyst 3850 48-Port Gigabit PoE+ Switch, IP Services

SKU:WS-C3850-48P-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port PoE+ switch is a stackable 1RU enterprise access switch for campus and branch networks that need converged wired and wireless access. It suits deployments powering IP phones, wireless access points and other PoE+ devices, with StackWise-480 and StackPower for resilient stacked access.

This SKU provides 48 x 10/100/1000 PoE+ RJ-45 ports (IEEE 802.3at, up to 30W per port), a PWR-C1-715WAC power supply with 435W of available PoE, and the IP Services feature set. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and stacking bandwidth is 480 Gbps. The integrated wireless controller capability supports up to 100 access points, 2000 wireless clients and 40 Gbps of wireless capacity. IP Services adds full Layer 3 routing including EIGRP, OSPF, BGP, PIM, IPv6 routing and VRF-Lite.

Uplinks are provided through the optional C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules. It stacks with other Catalyst 3850 switches running the same feature set using STACK-T1 cables, and works with Cisco Aironet access points, Cisco ISE and DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability (mobility agent and mobility controller modes)
- Cisco StackWise-480 stacking of up to nine switches, plus StackPower for power sharing and redundancy
- Full IEEE 802.3at PoE+ with 30W on all copper ports in 1 RU
- Cisco UADP ASIC with programmable architecture and hierarchical wired and wireless QoS
- Flexible NetFlow for application visibility across wired and wireless traffic
- MACsec 128-bit encryption with 802.1x, DHCP snooping, DAI, IP Source Guard and CoPP
- Dual redundant modular power supplies and three field-replaceable fans
- Cisco Smart Install, Auto Smartports and Energy-Efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Port configuration: 48 x 10/100/1000 PoE+ (RJ-45)
- PoE standard: IEEE 802.3at, up to 30W per port
- Available PoE power: 435W with the default power supply (1535W with an 1100W secondary power supply)
- Default power supply: PWR-C1-715WAC (715W AC)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (with 4 x 10G uplinks)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- Feature set: IP Services
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned): 24,000
- Flexible NetFlow entries: 48,000 flows
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Wireless capacity: up to 40 Gbps, 100 access points, 2000 clients, 64 WLANs
- Input voltage: 100-240VAC, 50-60 Hz
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 7.9 kg
- MTBF: 241,050 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing

FAQs

Q: Which feature set and licence does this switch have?
A: The -E suffix denotes the IP Services feature set, the highest tier, which adds EIGRP, OSPF, BGP, IS-IS, PIM multicast, IPv6 routing and VRF-Lite. An access point licence is only needed when operating in mobility controller mode. DNA Essentials or Advantage term licences are optional add-ons for SD-Access and DNA features.

Q: How much PoE power does it provide?
A: With the default PWR-C1-715WAC power supply the PoE budget is 435W. Adding an 1100W secondary power supply raises it to 1535W. Delivering 30W on all 48 ports requires two PWR-C1-1100WAC supplies, or one PWR-C1-1100WAC plus one PWR-C1-715WAC.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules. SFP and SFP+ optics are used with these modules per the Cisco transceiver compatibility matrix.

Q: What can I stack it with?
A: It stacks only with other Catalyst 3850 switches running the same feature set, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M). StackPower cables are CAB-SPWR-30CM and CAB-SPWR-150CM.

Q: Which wireless access points does it work with?
A: It is compatible with Cisco Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points. It supports up to 100 access points and 2000 wireless clients per switch or stack.
