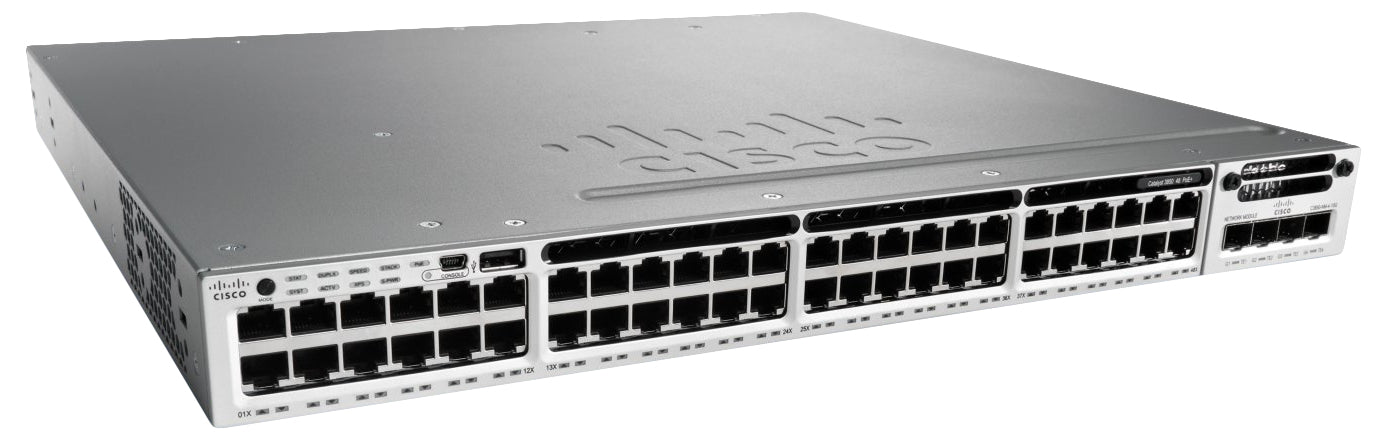

Cisco WS-C3850-48F-L | Catalyst 3850 48-Port Gigabit PoE+ Switch, 800W, LAN Base

SKU:WS-C3850-48F-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 1RU enterprise access switch for campus and branch wiring closets where wired and wireless access are converged. It suits deployments powering IP phones, wireless access points and other 802.3at PoE+ devices, including stacked installations.

This model provides 48 x 10/100/1000 ports with full PoE+, delivering 30W on every copper port. It is supplied with one PWR-C1-1100WAC (1100W AC) power supply, which gives 800W of PoE budget, rising to 1900W with a second 1100W unit. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and StackWise-480 provides 480 Gbps of stacking bandwidth. It runs the LAN Base feature set, with IP Base and IP Services available as higher feature sets on the same universal image.

Uplinks are added through optional network modules: C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. The 8x10G and 2x40G modules are not supported on this model. It stacks with other Catalyst 3850 switches over StackWise-480 cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, mobility agent by default with mobility controller mode available
- Full IEEE 802.3at PoE+ with 30W on all 48 copper ports in 1RU
- Cisco StackWise-480 stacking, up to 9 switches per stack
- Cisco StackPower for power sharing and redundancy across up to 4 switches
- Dual redundant modular power supply bays and three field-replaceable fans
- UADP ASIC for unified wired and wireless policy, QoS and Flexible NetFlow
- Energy-Efficient Ethernet on RJ-45 ports
- 128-bit MACsec on all models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+ (30W per port)
- Default power supply: PWR-C1-1100WAC (1100W AC)
- Available PoE power: 800W
- PoE budget with 1100W secondary PSU: 1900W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackPower: Yes
- Feature set: LAN Base
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 48.8 cm (1RU)
- Weight: 8.0 kg without uplink module
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95% noncondensing
- MTBF: 241,050 hours

FAQs

Q: Which feature set does this switch run?
A: The -L suffix indicates the LAN Base feature set. IP Base and IP Services are higher feature sets on the same universal Cisco IOS XE image, and Cisco DNA Essentials and Advantage term licences are optional add-ons.

Q: How much PoE power does it provide?
A: With the 1100W AC power supply fitted it provides 800W of PoE budget. Adding a second 1100W supply raises this to 1900W, which allows full 30W PoE+ on all 48 ports.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules. The 8x10G and 2x40G modules are not supported on this model.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3850 switches over StackWise-480 for 480 Gbps of stacking bandwidth. StackPower uses separate proprietary cables.

Q: Can it act as a wireless controller?
A: Yes. It has integrated wireless controller capability and supports up to 100 access points and 2000 wireless clients per switch or stack.
