Cisco

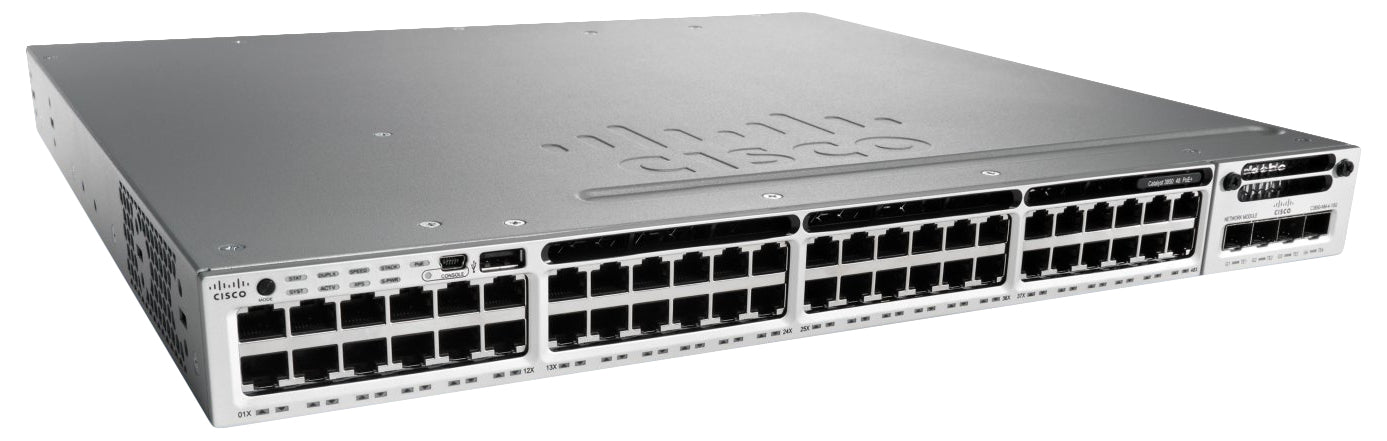

Cisco WS-C3850-48F-E | Catalyst 3850 48-Port PoE+ Switch, 800W, IP Services

SKU:WS-C3850-48F-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 1RU Layer 3 access switch built for campus and branch access layers where wired and wireless access are converged. It suits wiring closets that need to power IP phones, wireless access points and other PoE+ devices from a single stacked platform.

This model provides 48 x 10/100/1000 ports with full PoE+ on every port. Its 1100W AC power supply gives an 800W PoE budget, rising to 1900W with a second 1100W supply. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps, and StackWise-480 delivers 480 Gbps of stacking bandwidth with StackPower support. It ships with the IP Services feature set, the highest traditional licence level, which is required for full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite. The integrated wireless controller can manage up to 100 access points and 2000 clients per switch or stack.

Uplinks are provided through optional network modules, including C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G. Power supply options are PWR-C1-1100WAC and PWR-C1-715WAC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller for up to 100 access points and 2000 clients per switch or stack
- Full IEEE 802.3at PoE+ on all 48 ports
- Cisco StackWise-480 stacking with StackPower power sharing
- Modular, field-replaceable uplink network modules
- Dual redundant, field-replaceable power supplies and field-replaceable fans
- Energy-Efficient Ethernet (EEE)
- MACsec-128 encryption
- Flexible NetFlow, IPv4/IPv6 routing, multicast routing and modular QoS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet, full PoE+
- Default power supply: 1x PWR-C1-1100WAC (1100W AC)
- Available PoE power: 800W
- PoE budget with 1100W secondary power supply: 1900W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking: StackWise-480, 480 Gbps stacking bandwidth
- StackPower: Supported
- Feature set: IP Services (-E)
- Uplink network modules (optional): C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 1.75 x 17.5 x 19.2 in (4.45 x 44.5 x 48.8 cm)
- Weight: 17.6 lb (8.0 kg)
- Form factor: 1 RU
- MTBF: 241,050 hours
- Operating temperature (AC PSU): -5 C to +45 C up to 1500 m, -5 C to +40 C up to 3000 m
- Relative humidity: 10% to 95% non-condensing
- PSU input: 115-240 VAC, 50-60 Hz

FAQs

Q: Which licence level does the -E suffix indicate?
A: The -E suffix denotes the IP Services feature set, the highest traditional licence level. It is required for full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite. A single universal IOS XE image is used across licence levels.

Q: How much PoE power is available?
A: With the 1100W AC power supply, the switch provides an 800W PoE budget. A second 1100W supply raises this to 1900W.

Q: Can it deliver full PoE+ on all 48 ports?
A: Full 30W PoE+ on all 48 ports needs two 1100W power supplies, or one 1100W and one 715W. A single 1100W supply covers full 15.4W PoE on all 48 ports.

Q: Which uplink modules does it work with?
A: It accepts the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G network modules for uplinks.

Q: Can it be stacked with other switches?
A: Yes. It supports StackWise-480 stacking with other Catalyst 3850 switches at 480 Gbps of stacking bandwidth, plus StackPower.

Q: Can it act as a wireless controller?
A: Yes. The integrated wireless controller supports up to 100 access points and 2000 wireless clients per switch or stack.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
