Cisco

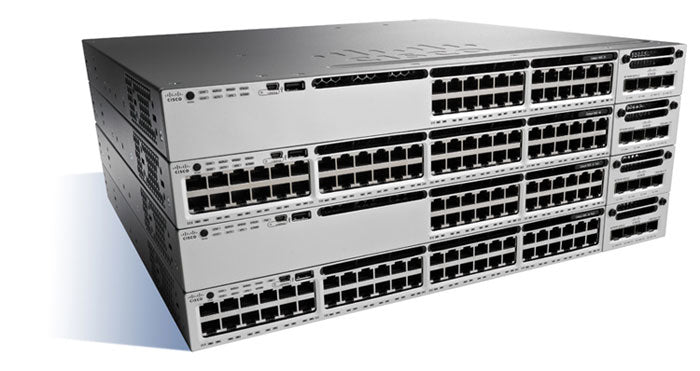

Cisco WS-C3850-32XS-E | Catalyst 3850 32-Port 10G SFP+ Switch, IP Services, 715W

SKU:WS-C3850-32XS-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 32-port SFP+ switch is a stackable Layer 3 enterprise access and aggregation switch built for fibre-based campus and branch networks. It suits environments that aggregate smaller access switches over fibre, including secure or EMI-sensitive sites, and it can also act as a wireless mobility controller or agent for converged wired and wireless deployments.

This WS-C3850-32XS-E provides 32 x 1/10G SFP+ ports, made up of 24 fixed ports plus 8 more from the C3850-NM-8-10G network module, with one network module slot. It carries the IP Services feature set, a 715W AC power supply, and StackWise-480 stacking at 480 Gbps across up to 9 switches. Switching capacity is 640 Gbps with a forwarding rate of 454.55 Mpps. The integrated wireless controller supports up to 100 access points and 2000 clients. There is no PoE on this SFP+ model.

It supports 1G SFP and 10G SFP+ optics (SR, LR, LRM, ER, ZR and DWDM) and CX1 cables. Compatible network modules for the 24XS base are C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise-480 stacking with up to 9 switches and SSO resiliency
- Cisco StackPower power sharing across stack members
- Dual redundant modular power supplies and three modular fans
- Integrated wireless controller with CAPWAP termination
- UADP ASIC with Flexible NetFlow across wired and wireless traffic
- 256-bit MACsec on SFP+ models, with 128-bit AES on all ports
- IP Services routing: OSPF, EIGRP, BGPv4, IS-ISv4, VRF-Lite, PIM multicast and IP SLAs
- Smart Install, Auto Smartports and Smart Troubleshooting for simpler operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 32 x 1/10G SFP+ (24 fixed + 8 via C3850-NM-8-10G module)
- Network module slots: 1
- Feature set: IP Services (Layer 3)
- Default power supply: PWR-C1-715WAC, 715W AC, 100-240 VAC, 50-60 Hz
- Optional power supply: PWR-C1-440WDC, 440W DC, dual redundant PSU bays
- PoE: None (SFP+ model)
- Switching capacity: 640 Gbps
- Forwarding rate: 454.55 Mpps
- Stacking: StackWise-480, 480 Gbps, up to 9 switches
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points, 2000 clients, 64 WLANs
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm, 1 RU
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95% noncondensing
- Acoustic noise: 43 dB typical, 45 dB maximum

FAQs

Q: Does this switch need an extra licence to run IP Services?
A: No. The IP Services feature set is included with this -E SKU. Optional Cisco DNA Essentials or Advantage term licences are only needed for SD-Access and DNA Center features.

Q: Does it provide PoE?
A: No. This is an SFP+ model with no PoE. It ships with a 715W AC power supply (PWR-C1-715WAC) and has dual redundant PSU bays.

Q: How do I reach all 32 SFP+ ports?
A: The 32 ports are available when the C3850-NM-8-10G network module is installed in the 24-port base. Other supported modules for this base are C3850-NM-4-10G and C3850-NM-2-40G.

Q: Which optics and cables does it use?
A: It takes 1G SFP and 10G SFP+ optics (SR, LR, LRM, ER, ZR and DWDM) and CX1 cables. Stacking uses StackWise-480 cabling and power sharing uses StackPower cabling.

Q: Can it act as a wireless controller?
A: Yes. It has an integrated wireless controller that supports up to 100 access points and 2000 clients per switch or stack, and it can also run in mobility agent mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
