Cisco

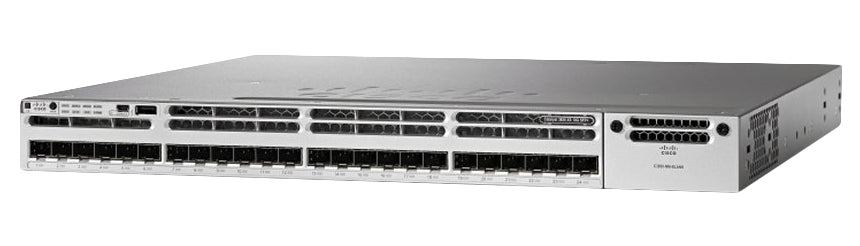

Cisco WS-C3850-24XUW-S | Catalyst 3850 24-Port Multigigabit UPOE Switch, IP Base, 5 AP

SKU:WS-C3850-24XUW-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port Multigigabit UPOE switch is a stackable 1RU access-layer switch for campus and branch networks that need converged wired and wireless access. It is aimed at aggregating 802.11ac and Wi-Fi access points that need multigigabit speeds over existing Cat5e or Cat6 cabling, as well as IoT, VDI clients and other high-power PoE endpoints.

All 24 front-panel RJ45 ports support 100Mbps, 1G, 2.5G, 5G and 10G Multigigabit Ethernet with Cisco UPOE delivering up to 60W per port. Available PoE power is 580W, rising to 1680W with a second 1100W power supply. Switching capacity is 640 Gbps with a forwarding rate of 500 Mpps, and StackWise-480 provides 480 Gbps of stack bandwidth. This SKU ships with the IP Base feature set and 5 access point licences, and its integrated wireless controller supports up to 100 APs and 2000 clients per switch or stack.

Optional uplink modules include the C3850-NM-4-1G, 2-10G, 4-10G, 8-10G and 2-40G. The switch stacks only with other Catalyst 3850 units running the same feature set, and works with Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multigigabit Ethernet (IEEE 802.3bz 2.5G and 5G) over existing Cat5e and Cat6 cabling
- Cisco UPOE delivering 60W per port for high-power endpoints
- StackWise-480 stacking for up to 9 switches with StackPower sharing and redundancy
- Converged wired and wireless access built on the Cisco UADP ASIC
- Integrated wireless controller with Mobility Agent mode by default and Mobility Controller mode with IP Base
- Security features including 802.1X, DHCP snooping, DAI, IP source guard and MACsec-256
- Flexible NetFlow and hierarchical wireless QoS
- Redundant modular power supplies and three field-replaceable fans
- Software-Defined Access support with Cisco DNA add-on licences

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 100Mbps/1/2.5/5/10 Gbps Multigigabit UPOE RJ-45
- PoE: Cisco UPOE, up to 60W per port
- Available PoE power: 580W (1680W with 1100W secondary power supply)
- Default power supply: PWR-C1-1100WAC (1100W), dual redundant PSU bays
- Switching capacity: 640 Gbps
- Forwarding rate: 500 Mpps (80B packets)
- Stacking: StackWise-480, 480 Gbps stack bandwidth, StackPower supported
- Optional uplink modules: C3850-NM-4-1G, 2-10G, 4-10G, 8-10G, 2-40G
- Feature set: IP Base with 5 access point licences
- Wireless: up to 100 APs and 2000 clients per switch or stack
- WLANs per switch: 64
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned): 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- DRAM: 4 GB
- Flash: 2 GB
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 8.0 kg
- Power input: 115-240VAC, 50-60Hz
- Operating temperature (AC supply): -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, non-condensing
- MTBF: 203,150 hours

FAQs

Q: What licence does this switch ship with?
A: It ships with the IP Base feature set and 5 access point licences. IP Base includes the Mobility Agent and Mobility Controller wireless roles, with additional AP licences needed for Mobility Controller mode. An upgrade to IP Services is available via RTU licence.

Q: How many power supplies are needed to run UPOE on all ports?
A: A 24-port Multigigabit UPOE switch needs two PWR-C1-1100WAC power supplies to run UPOE on every port. With a single 1100W supply the available PoE budget is 580W, rising to 1680W with the second supply.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G network modules.

Q: What can it be stacked with?
A: It stacks only with other Catalyst 3850 switches running the same feature set, using STACK-T1 cables for 480 Gbps StackWise-480. StackPower uses CAB-SPWR cables.

Q: Which access points does it work with?
A: It supports Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 access points, and also works with WLC 5760, WLC 5508 and WiSM2 as mobility controllers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
