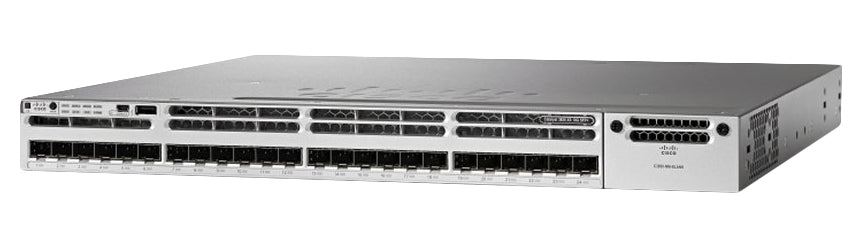

Cisco WS-C3850-24XU-S | Catalyst 3850 24-Port Multigigabit UPOE Switch, IP Base

SKU:WS-C3850-24XU-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port Multigigabit UPOE switch is a stackable 1RU enterprise access switch for wiring closets, campus and branch access layers. It is built for high-power endpoints and Multigigabit 802.11ac Wave 2 access points, and it combines wired and wireless access with an integrated wireless controller that supports up to 100 access points and 2000 clients per switch or stack.

All 24 ports run at 100Mbps, 1, 2.5, 5 or 10 Gbps, with Cisco UPOE delivering up to 60W per port. This SKU uses the 1100W AC PWR-C1-1100WAC power supply, which provides 580W of PoE budget, rising to 1680W with a second 1100W supply. Switching capacity is 640 Gbps with a 500 Mpps forwarding rate, and StackWise-480 provides 480 Gbps of stacking bandwidth. It ships with the IP Base feature set, which includes routed access, policy-based routing and Flexible NetFlow.

For expansion, it accepts the C3850-NM uplink network modules (4x 1G, 2x 10G, 4x 10G, 8x 10G and 2x 40G), and it stacks with other Catalyst 3850 switches at the same feature-set level. Dual modular power supply bays and three modular fans support resilient deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller
- Cisco UPOE with 60W per port, plus IEEE 802.3at PoE+ and 802.3af
- Multigigabit Ethernet (IEEE 802.3bz) with 2.5/5 Gbps over Cat5e/Cat6 and 10 Gbps over Cat6a
- StackWise-480 stacking with SSO resiliency, up to nine switches per stack
- Cisco StackPower for power sharing and redundancy across stack members
- UADP ASIC with hierarchical QoS and Flexible NetFlow
- MACsec encryption up to 256-bit AES
- Smart Install, Auto Smartports and EEM for simplified operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 100Mbps/1/2.5/5/10 Gbps Multigigabit UPOE
- PoE standard: Cisco UPOE up to 60W per port, plus IEEE 802.3at and 802.3af
- Power supply: PWR-C1-1100WAC (1100W AC)
- Available PoE power: 580W (1680W with a second 1100W supply)
- Feature set: IP Base
- Switching capacity: 640 Gbps
- Forwarding rate: 500 Mpps (80B packets)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 8.0 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 10% to 95% noncondensing
- MTBF: 203,150 hours

FAQs

Q: Which licence does this switch run?
A: It runs the IP Base feature set. You can upgrade to IP Services via an RTU licence. Cisco DNA Essentials or Advantage term licences are optional and are needed for SD-Access and DNA Center features.

Q: Can it deliver 60W UPOE on all 24 ports?
A: Full UPOE on all 24 ports requires two PWR-C1-1100WAC power supplies. With one 1100W supply the PoE budget is 580W, and a second supply raises it to 1680W.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G network modules.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes. It stacks over StackWise-480 using STACK-T1 cables, and StackPower cables allow power sharing. All stack members must run the same feature set, as mixed LAN Base, IP Base and IP Services stacks are not supported.

Q: What multigigabit speeds do the ports support?
A: Each port supports 100Mbps, 1, 2.5, 5 and 10 Gbps, so existing Cat5e or Cat6 cabling can carry up to 5 Gbps and Cat6a cabling up to 10 Gbps.
