Cisco

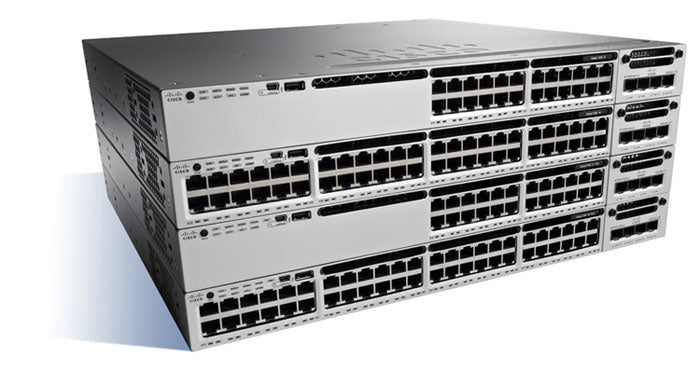

Cisco WS-C3850-24XU-E | Catalyst 3850 24-Port Multigigabit UPoE Switch, IP Services

SKU:WS-C3850-24XU-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-24XU-E is a stackable 1RU access and aggregation switch for enterprise campus and branch networks that need converged wired and wireless access. It suits high-bandwidth Wi-Fi access point deployments that need multigigabit uplinks, UPoE-powered endpoints such as IP turrets, VDI clients, compact switches and access control, and Software-Defined Access fabric deployments.

The switch provides 24 multigigabit RJ-45 ports running at 100Mbps, 1, 2.5, 5 or 10 Gbps, with Cisco UPoE delivering up to 60W per port. It ships with a 1100W AC power supply giving 580W of PoE power, rising to 1680W with a second 1100W supply. Switching capacity is 640 Gbps with a 500 Mpps forwarding rate, and StackWise-480 stacking provides 480 Gbps of stack bandwidth. This SKU carries the IP Services feature set, adding advanced Layer 3 routing such as full OSPF, EIGRP, BGP, IS-IS, PIM and VRF-Lite.

Optional uplink modules include the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G. It stacks only with other Catalyst 3850 switches running the same feature set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with an integrated wireless controller in mobility agent or mobility controller mode
- Cisco UPoE at 60W per port and IEEE 802.3at PoE+
- Multigigabit Ethernet (IEEE 802.3bz) with 2.5G and 5G over Cat5e and Cat6 cabling
- Cisco StackWise-480 stacking of up to nine switches, with StackPower power sharing
- MACsec encryption and hierarchical wired and wireless QoS with Flexible NetFlow
- Full IPv4 and IPv6 routing including OSPF, EIGRP, BGP, IS-IS, PIM and VRF-Lite
- Dual redundant modular power supplies and three modular fans
- Software-Defined Access capable with Cisco DNA Essentials or Advantage licences

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 100Mbps/1/2.5/5/10 Gbps Multigigabit UPoE (RJ-45)
- PoE standard: Cisco UPoE, up to 60W per port, plus IEEE 802.3at PoE+
- Feature set: IP Services
- Power supply: PWR-C1-1100WAC, 1100W AC
- Available PoE power: 580W (1680W with a second 1100W supply)
- UPoE at 60W per port requires two PWR-C1-1100WAC
- Switching capacity: 640 Gbps
- Forwarding rate: 500 Mpps (80B packets)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- Total MAC addresses: 32,000
- Total IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Total SVIs: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 100 APs, 2000 clients and 64 WLANs per switch or stack, up to 40 Gbps
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1RU)
- Weight: 8.0 kg
- Input voltage: 115-240 VAC, 50-60 Hz
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, non-condensing
- MTBF: 203,150 hours

FAQs

Q: Which licence tier does the WS-C3850-24XU-E carry?
A: The -E suffix denotes the IP Services feature set, which includes IP Base features plus advanced Layer 3 such as full OSPF, EIGRP, BGP, IS-IS, PIM, VRF-Lite and IP SLA. Optional Cisco DNA Essentials or Advantage term licences add SD-Access and analytics.

Q: How much PoE power does it provide?
A: With one 1100W AC supply fitted it provides 580W of PoE power. Adding a second 1100W supply raises the PoE budget to 1680W. Delivering the full 60W UPoE per port requires two PWR-C1-1100WAC supplies.

Q: Do I need access point licences?
A: Access point licences (LIC-CTIOS-1A) are only required when the switch operates in mobility controller mode. None are needed in mobility agent mode.

Q: Which uplink modules does it work with?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G network modules.

Q: Can it be stacked with other switches?
A: Yes, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M). It stacks only with other Catalyst 3850 switches running the same feature set, so a mixed feature-set stack is not supported.
