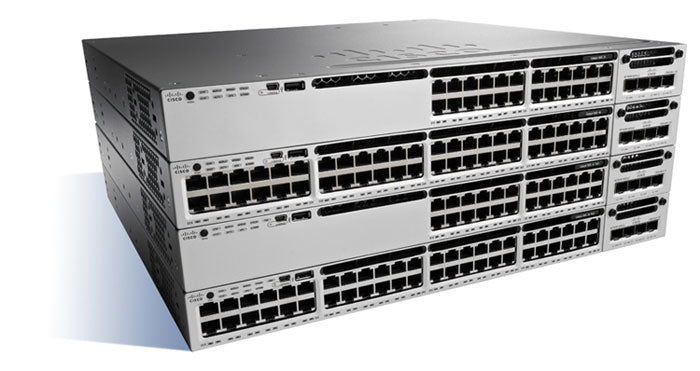

Cisco WS-C3850-24XS-E | Catalyst 3850 24-Port 10G SFP+ Switch, IP Services, Layer 3

WS-C3850-24XS-E

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst WS-C3850-24XS-E is an enterprise-class stackable Layer 3 switch with 24 x 10G SFP+ ports and IP Services license. Designed for high-performance campus and data center access deployments, it delivers 480 Gbps StackWise stacking, integrated wireless controller capability supporting up to 100 access points, and advanced features including Flexible NetFlow, IPv4/IPv6 routing, and comprehensive security. The modular design supports optional network modules for additional 10G or 40G uplinks.

Features

Layer 3 switching with full IPv4 and IPv6 routing (OSPF, EIGRP, ISIS, BGP)
- Integrated wireless LAN controller (supports up to 100 APs, 2,000 clients per stack)
- StackWise-480 stacking technology with 480 Gbps stack bandwidth
- StackPower for shared power across up to 4 switches in a stack
- Flexible NetFlow (FNF) for advanced traffic analytics and monitoring
- Modular and field-replaceable network modules, power supplies, and fans
- Comprehensive Layer 2 features: VLANs, STP, RSTP, MSTP, LACP, VTP
- Advanced QoS with 8 egress queues and modular QoS CLI
- Security features: 802.1X, MACSec encryption (AES-256), dynamic ARP inspection, DHCP snooping, IP Source Guard
- IEEE 802.1ba Audio Video Bridging (AVB) for enhanced AV streaming
- Energy Efficient Ethernet (EEE) IEEE 802.3az support
- Hot-swappable redundant power supplies and fan modules
- Cisco IOS XE software with single universal image across all license levels
- SNMP v1/v2c/v3, RMON, sFlow, CLI, web-based management
- Dual bootloader for software resiliency and simplified upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10 Gigabit Ethernet SFP+ ports (support 1G or 10G SFP modules)
- Optional network module slot supports C3850-NM-8x10G or C3850-NM-2x40G modules
- Switching capacity: 320 Gbps
- Forwarding rate: 454.55 Mpps
- Stackable up to 9 switches with StackWise-480 technology (480 Gbps stack bandwidth)
- Memory: 4 GB RAM, 4 GB Flash
- MAC address table: 32,000 entries
- VLAN support: Up to 4,000 VLAN IDs
- Integrated wireless controller supporting up to 100 access points and 2,000 wireless clients per stack
- Flexible NetFlow: 48,000 flow entries
- Power supply: 715W AC (redundant, field-replaceable)
- Form factor: 1RU rack-mountable
- Dimensions: 44.5 cm (W) x 45 cm (D) x 4.45 cm (H)
- Weight: 13.45 lbs (6.1 kg)
- Management: RJ-45 console, Mini-USB console, 1 Gigabit Ethernet management port, USB Type A
- Operating temperature: -5°C to 45°C (23°F to 113°F)
- IP Services feature set included

FAQs

Q: What is the difference between IP Services and IP Base license?
A: IP Services provides advanced Layer 3 routing protocols including OSPF, EIGRP, ISIS, and BGP, along with enhanced security and QoS features. IP Base offers basic Layer 3 routing with static routes, RIP, and up to 1,000 VLANs. The WS-C3850-24XS-E comes with IP Services pre-installed.

Q: Can this switch stack with other Catalyst 3850 models?
A: Yes, the WS-C3850-24XS-E can stack with other Catalyst 3850 Series switches using StackWise-480 cables, up to 9 switches per stack. However, it can only stack with other IP Services licensed switches. It cannot stack with IP Base or LAN Base models.

Q: Does this model support PoE?
A: No, the WS-C3850-24XS-E does not provide Power over Ethernet. It has 24 x 10G SFP+ fiber ports only. For PoE requirements, consider Catalyst 3850 models with RJ45 copper ports and PoE+ or UPOE capability.

Q: What network modules are compatible with this switch?
A: The WS-C3850-24XS-E supports the C3850-NM-8x10G (8 x 10G SFP+) and C3850-NM-2x40G (2 x 40G QSFP+) network modules. The C3850-NM-4-1G and C3850-NM-2-10G modules are not supported on 24-port SFP+ models.

Q: Can I use 1G SFP modules in the SFP+ ports?
A: Yes, the 10G SFP+ ports are backward compatible with 1G SFP modules, allowing flexible deployment and future migration to 10G as network requirements evolve. The switch will auto-negotiate to the appropriate speed.
