• Cisco WS-C3850-24U-S switch with 24x 1G UPOE ports
1 1

Cisco

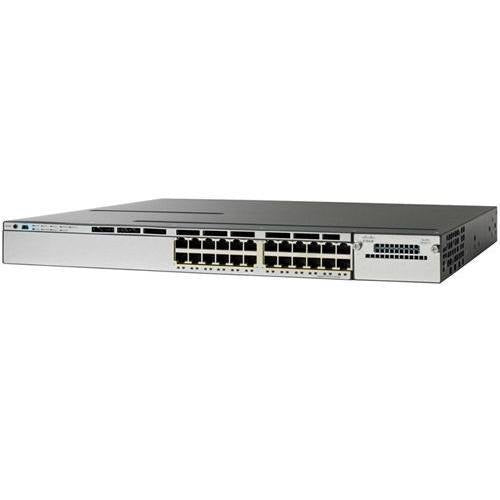

Cisco WS-C3850-24U-S | Catalyst 3850 24-Port Gigabit UPOE Switch, 800W, IP Base

WS-C3850-24U-S

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3850-24U-S is a stackable Layer 3 enterprise switch delivering 24 Gigabit Ethernet ports with Cisco Universal Power over Ethernet, providing up to 60W per port and 800W total PoE budget. Designed for converged wired and wireless campus deployments, it features modular uplink expansion, StackWise-480 technology for high-availability stacking, and the IP Base feature set. Ideal for powering high-demand devices such as wireless access points, IP phones, and surveillance cameras in enterprise access layer networks.

Features

Layer 2 and Layer 3 switching with IP Base feature set
- Cisco UPOE delivering up to 60W per port for high-power devices
- StackWise-480 technology with 480 Gbps stacking throughput
- StackPower for power sharing and redundancy across stacked switches
- Integrated wireless LAN controller supporting 100 APs and 2,000 clients
- Flexible NetFlow (FNF) for advanced traffic visibility and analytics
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Advanced QoS with 8 egress queues per port
- Comprehensive security: 802.1X, MACsec, TrustSec, Access Control Lists
- Redundant power supply and fan support for high availability
- Hot-swappable network modules and power supplies
- Support for static routing, RIP, and HSRP in IP Base
- VLAN support for up to 4,000 VLANs with VTP and private VLANs
- Spanning Tree Protocol: PVST+, Rapid PVST+, MST
- Link aggregation with LACP and PAgP
- DHCP snooping, Dynamic ARP Inspection, and IP Source Guard
- SNMP v1/v2c/v3, RMON, and syslog for comprehensive network monitoring
- Cisco DNA Center ready for intent-based networking and automation
- Field-replaceable fans and dual power supply bays
- USB and console management ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 Gigabit Ethernet RJ-45 ports with Cisco UPOE (60W per port)
- Total PoE budget: 800W with 1100W AC power supply included
- 1 x modular network module slot (supports C3850-NM-4-1G or C3850-NM-2-10G modules sold separately)
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- MAC address table: 32,000 entries
- VLAN support: Up to 4,000 VLANs
- StackWise-480 technology: 480 Gbps stacking bandwidth, supports up to 9 switches per stack
- StackPower technology for power redundancy across stack members
- Memory: 4 GB DRAM, 2 GB Flash
- Management: CLI, web GUI, SNMP v1/v2c/v3, RMON, Cisco DNA Center ready
- Dual redundant power supply bays (second PSU sold separately)
- Form factor: 1RU rack-mountable
- Feature set: IP Base (supports Layer 2 and limited Layer 3 routing)
- Integrated wireless controller capability: Supports up to 100 APs and 2,000 wireless clients per stack
- Operating temperature: -5°C to 45°C (23°F to 113°F)

FAQs

Q: What is Cisco UPOE and how much power does it provide?
A: Cisco Universal Power over Ethernet (UPOE) delivers up to 60W per port, exceeding the 30W limit of standard PoE+ (802.3at). This enables power for high-demand devices such as next-generation wireless access points, video collaboration endpoints, and building automation systems. The WS-C3850-24U-S provides 800W total PoE budget.

Q: What network modules are compatible with the WS-C3850-24U-S?
A: The switch includes one modular uplink slot supporting C3850-NM-4-1G (4x 1G SFP) and C3850-NM-2-10G (4x 1G SFP or 2x 10G SFP+) network modules. Note that C3850-NM-4-10G is not supported on 24-port models. Network modules are sold separately and are hot-swappable.

Q: Can the WS-C3850-24U-S stack with other Catalyst 3850 switches?
A: Yes, using StackWise-480 technology, this switch stacks with other Catalyst 3850 IP Base switches, providing 480 Gbps stacking bandwidth. However, IP Base switches cannot stack with LAN Base or IP Services models. Up to 9 switches can be stacked and managed as a single unit.

Q: Does this switch include a wireless controller?
A: Yes, the Catalyst 3850 Series includes an integrated wireless controller supporting up to 100 Cisco Aironet access points and 2,000 wireless clients per switch or stack with 40 Gbps wireless throughput, enabling unified wired and wireless management.

Q: What is the difference between IP Base and IP Services feature sets?
A: IP Base provides essential Layer 2 switching and limited Layer 3 routing capabilities including static routing and RIP. IP Services (available on -E models) adds advanced routing protocols such as OSPF, EIGRP, BGP, and full multicast routing. The IP Base license is upgradeable to IP Services.
