Cisco

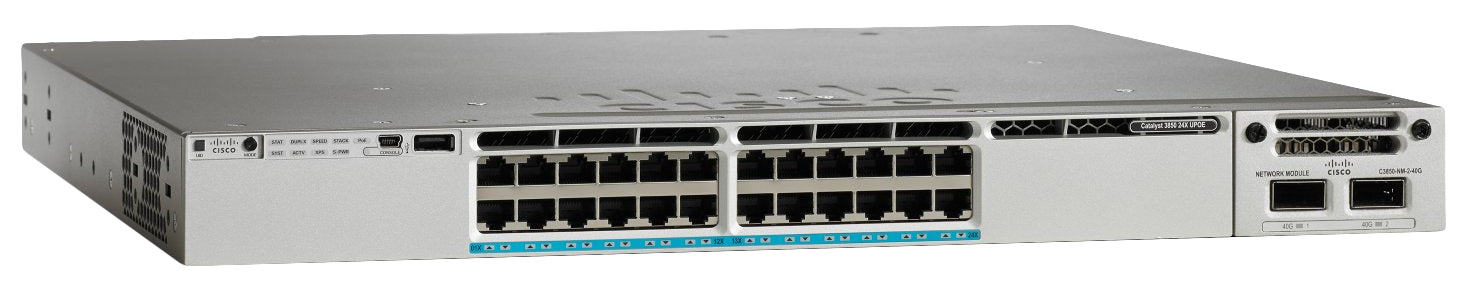

Cisco WS-C3850-24U-L | Catalyst 3850 24-Port UPOE Switch, 800W PoE, LAN Base

SKU:WS-C3850-24U-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port UPOE switch is a stackable 1RU enterprise access switch for campus and branch networks that need converged wired and wireless access. Its 24 10/100/1000 ports support Cisco UPOE at up to 60W per port, which suits IP phones, access points, VDI clients, IoT devices and compact switches.

This SKU ships with one PWR-C1-1100WAC 1100W AC power supply, giving 800W of PoE budget, and rises to 1900W with a second 1100W supply. It delivers 92 Gbps of switching capacity and 68.4 Mpps forwarding, with Cisco StackWise-480 providing 480 Gbps of stack bandwidth. The chassis has dual modular power supply bays, three modular fans, 4 GB DRAM and 2 GB flash. It runs the LAN Base feature set and can be upgraded to IP Base or IP Services with Right-To-Use licences.

Optional uplink network modules for this model are the C3850-NM-4-1G and C3850-NM-2-10G. It supports Aironet access points and works with Cisco WLC 5760, WLC 5508 and WiSM2 controllers, and can be managed through Cisco Prime Infrastructure and Cisco DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE up to 60W per port, plus IEEE 802.3at PoE+ and 802.3af
- Integrated wireless controller capability, with mobility controller mode available on IP Base or higher
- Cisco StackWise-480 stacking with up to nine switches per stack and SSO resiliency
- Cisco StackPower for power sharing and redundancy across stack members
- Dual redundant modular power supplies and three field-replaceable fans
- Unified Access Data Plane ASIC with uniform wired and wireless policy enforcement
- Security features including 802.1x, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and MACsec
- Hierarchical wired and wireless QoS with 8 egress queues per port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Cisco UPOE (up to 60W per port)
- Default power supply: PWR-C1-1100WAC, 1100W AC, 115-240VAC, 50-60 Hz
- Available PoE power: 800W (1900W with a second 1100W power supply)
- Feature set: LAN Base
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking: Cisco StackWise-480, 480 Gbps stack bandwidth
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Optional uplink modules: C3850-NM-4-1G, C3850-NM-2-10G
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1RU)
- Weight: 7.5 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, noncondensing
- MTBF: 237,310 hours

FAQs

Q: Which feature set does this switch run and can it be upgraded?
A: It ships with the LAN Base feature set. It can be upgraded with Right-To-Use licences to IP Base or IP Services. LAN Base switches can only stack with other Catalyst 3850 LAN Base switches.

Q: How much PoE power does it provide?
A: With the default 1100W AC power supply it provides 800W of PoE budget. Adding a second 1100W power supply raises this to 1900W.

Q: What is needed to run UPOE at 60W on all 24 ports?
A: Running UPOE on all 24 ports needs one PWR-C1-1100WAC and one PWR-C1-715WAC power supply. PoE+ at 30W per port on all ports needs one PWR-C1-1100WAC or two PWR-C1-715WAC.

Q: Which uplink modules and stacking cables does it use?
A: Optional uplink modules for this model are the C3850-NM-4-1G and C3850-NM-2-10G. StackWise-480 stacking uses STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables.

Q: Does it support StackPower?
A: Yes. StackPower is supported using CAB-SPWR-30CM or CAB-SPWR-150CM cables, which are purchased separately with LAN Base.
