Cisco

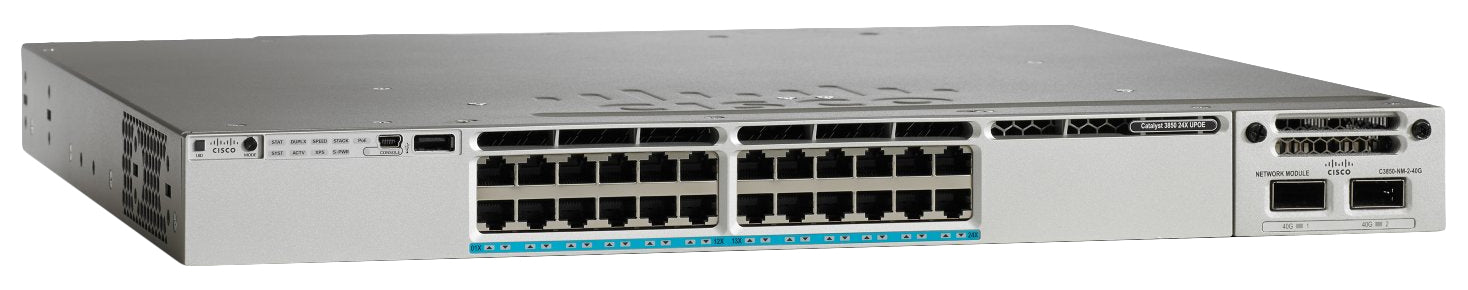

Cisco WS-C3850-24U-E | Catalyst 3850 24-Port UPoE Switch, 800W, IP Services

SKU:WS-C3850-24U-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port UPoE switch is a stackable 1RU enterprise access switch for campus and branch networks that need high-power PoE for IP phones, access points, thin clients, compact switches and building or IoT devices. It combines converged wired and wireless access with stackable resiliency and advanced Layer 3 routing.

It provides 24 x 10/100/1000 Cisco UPOE ports delivering up to 60W per port, with 800W of available PoE power from the default PWR-C1-1100WAC supply (1900W with a second 1100W supply). Switching capacity is 92 Gbps with a forwarding rate of 68.4 Mpps. Cisco StackWise-480 provides 480 Gbps of stacking bandwidth across up to 9 switches, and StackPower shares power across stack members. This SKU ships with the IP Services feature set on a single universal Cisco IOS XE image, and the integrated wireless controller supports up to 100 access points and 2000 wireless clients per switch or stack.

Optional uplink network modules are C3850-NM-4-1G (4 x 1G SFP) and C3850-NM-2-10G (2 x 10G SFP+ or 4 x 1G SFP). Stacking uses STACK-T1 cables and the second power supply bay accepts PWR-C1-350WAC, 715WAC, 1100WAC or 440WDC supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE delivering 60W per port in a 1RU form factor
- Cisco StackWise-480 stacking with SSO resiliency
- Cisco StackPower for power sharing and redundancy across stack members
- Integrated wireless controller with CAPWAP termination
- Cisco UADP ASIC for uniform wired and wireless policy, QoS and Flexible NetFlow
- MACsec AES-128 encryption
- Layer 3 routing with EIGRP, OSPF, BGP, PIM, VRF-Lite and IPv6 routing
- Cisco Smart Install, Auto Smartports, AutoQoS and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Cisco UPOE
- PoE per port: up to 60W (UPOE)
- Available PoE power: 800W (1900W with 1100W secondary power supply)
- Default power supply: PWR-C1-1100WAC (1100W AC)
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480, up to 9 switches)
- Optional uplink modules: C3850-NM-4-1G, C3850-NM-2-10G
- Feature set: IP Services
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: 100 access points and 2000 clients per switch or stack
- Form factor: 1 RU
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 7.5 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, noncondensing

FAQs

Q: Which licence tier does this switch ship with?
A: The -E suffix means it ships with the IP Services feature set on a single universal Cisco IOS XE image. Switches in a stack must share the same feature set.

Q: What power supply does it need for UPOE on all 24 ports?
A: The default supply is the PWR-C1-1100WAC. Full 60W UPOE on all 24 ports requires one PWR-C1-1100WAC plus one PWR-C1-715WAC. Full 30W PoE+ on all ports needs only one PWR-C1-1100WAC.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G (4 x 1G SFP) and C3850-NM-2-10G (2 x 10G SFP+ or 4 x 1G SFP) network modules. It does not support the C3850-NM-4-10G, C3850-NM-8-10G or C3850-NM-2-40G.

Q: How do I stack multiple switches?
A: Use StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M) to stack up to 9 switches. StackPower cables CAB-SPWR-30CM and CAB-SPWR-150CM share power across the stack.

Q: Does it need an access point licence for wireless?
A: IP Base and above includes wireless controller functionality. An access point licence is only required when the switch runs in mobility controller mode.
