• Cisco WS-C3850-24T-S 24-port 1G Ethernet switch with modular uplinks
1 1

Cisco

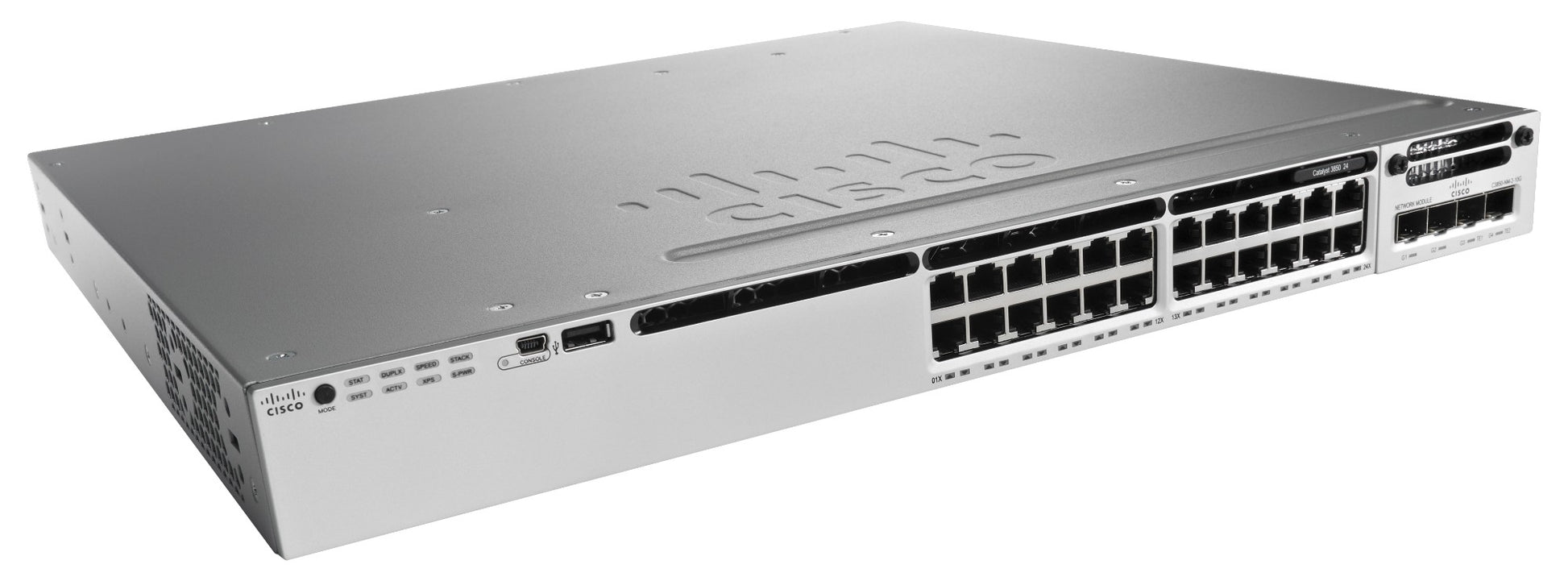

Cisco WS-C3850-24T-S | Catalyst 3850 24-Port Gigabit Switch, IP Base, Layer 3

WS-C3850-24T-S

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3850-24T-S is an enterprise-class stackable Layer 3 switch featuring 24 Gigabit Ethernet ports with IP Base licensing. Built on Cisco's Unified Access Data Plane (UADP) ASIC, this switch delivers 92 Gbps switching capacity and supports up to 9 units in a StackWise-480 stack with 480 Gbps stack bandwidth. Ideal for converged wired-wireless campus deployments, it includes a modular uplink slot supporting optional 1G or 10G SFP network modules and built-in wireless controller functionality for managing up to 100 access points.

Features

Layer 3 routing with IP Base: OSPF stub, EIGRP stub, RIPv1, RIPv2, PIM stub
- StackWise-480 technology: Stack up to 9 switches with 480 Gbps stack bandwidth and SSO redundancy
- StackPower: Share power resources across stacked switches for improved redundancy
- Integrated wireless controller: Mobility agent and controller roles for converged wired-wireless management
- Unified Access Data Plane (UADP) ASIC for uniform wired-wireless policy enforcement
- Hot-swappable and field-replaceable network modules, fans, and power supplies
- Advanced QoS: MQC-based Quality of Service for traffic prioritization
- Advanced security: IEEE 802.1X, MACsec (128-bit AES), TrustSec, port security, DHCP snooping, Dynamic ARP Inspection
- Flexible NetFlow (FNF): 24,000 flow entries for application visibility and monitoring
- Spanning Tree Protocol: MSTP (802.1s), PVRST+, PortFast, BPDU Guard/Filter
- Energy Efficient Ethernet (EEE): IEEE 802.3az support for reduced power consumption
- IPv6 ready: Dual-stack IPv4/IPv6 support with IPv6 ACLs, MLD snooping, and DHCPv6
- EtherChannel and LACP: Link aggregation for increased bandwidth and redundancy
- USB storage support: Configuration and IOS image management via USB Type A port
- Smart Operations: Auto Smartports, Auto Configuration, Cisco IOS XE zero-touch provisioning

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 Ethernet RJ-45 ports (non-PoE)
- 1 x modular network module slot (supports C3850-NM-4-1G or C3850-NM-2-10G, sold separately)
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking: Up to 9 switches via StackWise-480 (480 Gbps stack bandwidth)
- Memory: 4 GB RAM, 2 GB Flash
- VLANs: 4,000 VLAN IDs supported
- MAC address table: 32,000 entries
- Wireless controller support: Up to 100 access points and 2,000 wireless clients per switch/stack
- Power supply: 350W AC (included)
- Form factor: 1U rack-mountable
- Dimensions: 4.45 cm x 44.5 cm x 45.0 cm (H x W x D)
- Management: Console port (RJ-45), USB mini-Type B console, USB Type A storage, Ethernet management port
- Operating system: Cisco IOS XE
- Certifications: FCC Part 15 Class A, EN 60950-1, EN 55022 Class A, EN 55024, ICES-003 Class A

FAQs

Q: What is the difference between IP Base and IP Services licensing on this switch?
A: IP Base includes Layer 3 routing features such as OSPF stub, EIGRP stub, RIPv1, RIPv2, and PIM stub, along with wireless controller functionality and support for up to 1,000 VLANs. IP Services adds full enterprise routing features including full OSPF, EIGRP, BGP, PIM, and IPv6 routing (OSPFv3, EIGRPv6). The license can be upgraded via RTU (right-to-use) software activation.

Q: Does the WS-C3850-24T-S support Power over Ethernet (PoE)?
A: No, this model does not provide PoE. The 24T designation indicates data-only ports. For PoE support, consider the WS-C3850-24P (PoE+) or WS-C3850-24U (UPOE) models.

Q: Can I stack this switch with Catalyst 3850 models that have different feature sets?
A: No, the WS-C3850-24T-S with IP Base can only stack with other Catalyst 3850 Series switches running IP Base. Mixed stacks with LAN Base or IP Services feature sets are not supported. All switches in the stack must have the same license level.

Q: What uplink modules are compatible with this switch?
A: The WS-C3850-24T-S has one hot-swappable network module slot that supports the C3850-NM-4-1G (4 x 1G SFP) or C3850-NM-2-10G (2 x 1G SFP + 2 x 10G SFP+) modules. The C3850-NM-4-10G is not supported on 24-port models. Modules are sold separately and the switch ships with a blank module installed.

Q: What is the wireless controller capability of this switch?
A: With IP Base licensing, the WS-C3850-24T-S can operate as a mobility agent or mobility controller, supporting up to 100 access points and 2,000 wireless clients per switch or stack. This enables converged wired-wireless management on a single platform, ideal for branch and campus deployments. Additional AP licenses may be required for mobility controller role.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
