Cisco

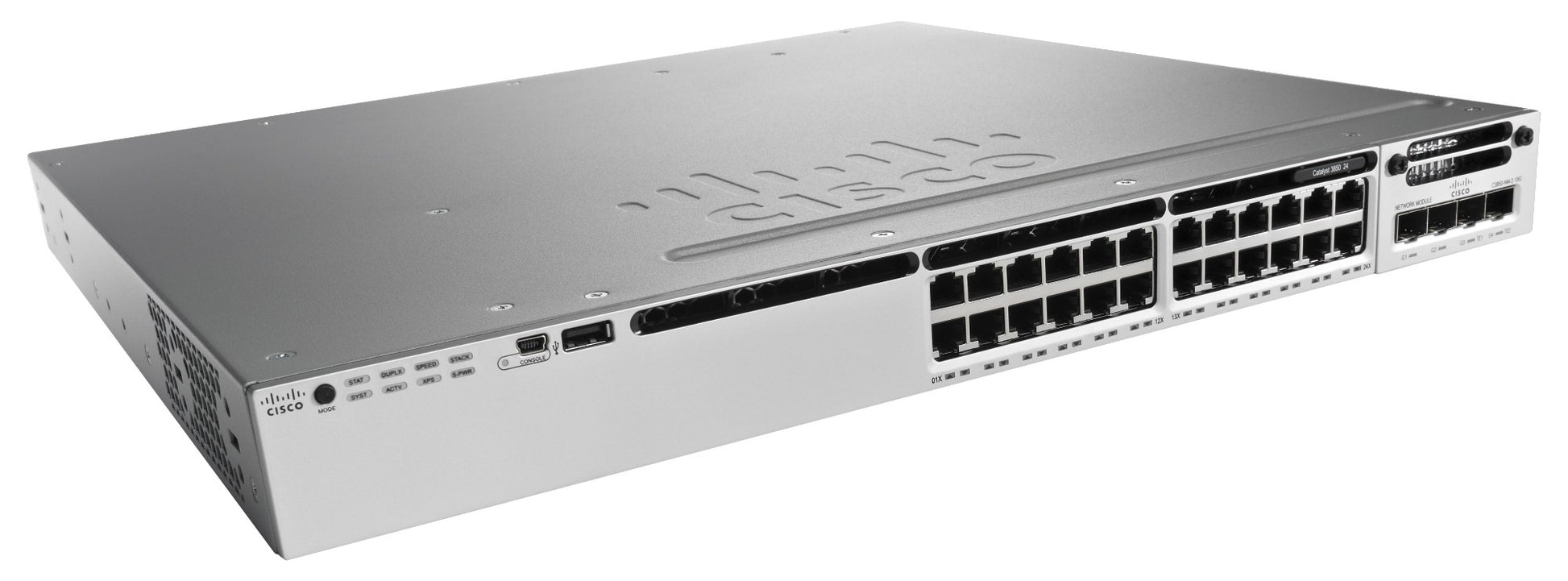

Cisco WS-C3850-24T-L | Catalyst 3850 24-Port Gigabit Switch, 350W, LAN Base

SKU:WS-C3850-24T-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port Gigabit switch is a stackable enterprise access switch for campus and branch networks that need converged wired and wireless management. It suits access-layer deployments that call for optional 10G uplinks and a basic Layer 2 feature set, and it can be positioned for SD-Access and Cisco DNA environments with an added licence.

This SKU provides 24 x 10/100/1000 data ports with no PoE, a 350W AC power supply and the LAN Base feature set. Switching capacity is 92 Gbps with a forwarding rate of 68.4 Mpps. StackWise-480 delivers 480 Gbps of stacking bandwidth, and StackPower allows power sharing across stack members. An uplink network module slot accepts the C3850-NM-4-1G (4 x 1G SFP) or C3850-NM-2-10G (2 x 10G SFP+) module. LAN Base supports limited static routing, while IP Base or IP Services licences unlock further features.

The switch accepts the PWR-C1-350WAC, PWR-C1-715WAC and PWR-C1-1100WAC AC power supplies and the PWR-C1-440WDC DC supply, with a second power supply bay for redundancy. It supports Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 access points, and stacks with other Catalyst 3850 switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wired and wireless LAN, with the switch acting as a mobility agent for access points
- StackWise-480 stacking with 480 Gbps of stack bandwidth
- StackPower power sharing across the stack
- Modular uplinks: 4 x 1G SFP or 2 x 10G SFP+ network modules
- Redundant, field-replaceable power supplies and three field-replaceable fans
- UADP ASIC with programmability for SDN readiness and OnePK SDK support
- Single universal Cisco IOS XE image across all licence levels
- Cisco Catalyst SmartOperations including Smart Install, Auto Smartports and Smart Configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Ethernet data ports
- PoE: None (data-only model)
- Feature set: LAN Base
- Default power supply: PWR-C1-350WAC (350W AC)
- Uplink network modules: C3850-NM-4-1G or C3850-NM-2-10G
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking: StackWise-480, 480 Gbps stacking bandwidth
- StackPower: Yes
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: 100 access points and 2000 clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 7.2 kg, excluding uplink module
- MTBF: 303,230 hours
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95% non-condensing

FAQs

Q: Which licence does this switch run?
A: It ships with the LAN Base feature set, indicated by the -L suffix. It uses a single universal IOS XE image, and IP Base or IP Services features are unlocked with an upgrade licence.

Q: Does it provide PoE?
A: No. This is a data-only model with 24 x 10/100/1000 ports and no PoE budget.

Q: Which uplink modules does it support?
A: The C3850-NM-4-1G (4 x 1G SFP) and C3850-NM-2-10G (2 x 10G SFP+) network modules.

Q: Which power supplies can it use?
A: It uses the PWR-C1-350WAC by default and also accepts the PWR-C1-715WAC, PWR-C1-1100WAC and PWR-C1-440WDC. A second power supply bay is available for redundancy.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3850 switches over StackWise-480 cabling for 480 Gbps of stacking bandwidth, and StackPower can share power across stack members.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
