Cisco

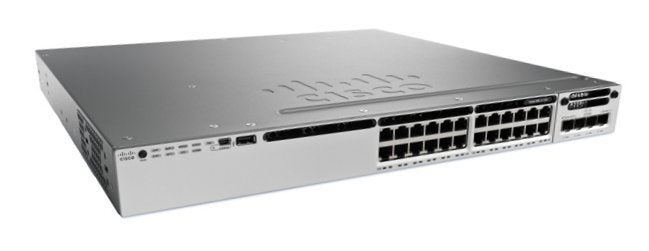

Cisco WS-C3850-24T-E | Catalyst 3850 24-Port Gigabit Switch, IP Services

SKU:WS-C3850-24T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port Gigabit switch is a stackable 1RU access switch for enterprise campus and branch networks. It combines wired access with integrated wireless controller capability, so one platform can serve converged wired and wireless deployments and Layer 3 routed access without PoE.

This SKU provides 24 x 10/100/1000 data ports with no PoE, a 350W AC power supply (PWR-C1-350WAC) and the IP Services feature set. It delivers 92 Gbps switching capacity and a 68.4 Mpps forwarding rate, with 480 Gbps StackWise-480 stacking and StackPower support. Memory is 4 GB DRAM and 2 GB flash. Optional uplink modules add 1G or 10G ports, and wireless capacity reaches up to 100 access points and 2000 clients per switch or stack. IP Services includes all LAN Base and IP Base features plus full Layer 3 routing.

It accepts the C3850-NM-4-1G and C3850-NM-2-10G uplink modules. StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M) and StackPower cables (CAB-SPWR-30CM, CAB-SPWR-150CM) are available separately. It stacks only with other Catalyst 3850 switches running the same IP Services feature set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability in mobility agent and mobility controller modes
- StackWise-480 stacking for scalability and resiliency
- StackPower for power sharing and redundancy across stack members
- UADP ASIC for uniform wired and wireless policy enforcement
- Flexible NetFlow across wired and wireless traffic
- Layer 3 routing including OSPF, EIGRP, BGP, IS-IS, PBR, VRF-Lite and PIM
- Security features including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and 128-bit MACsec
- Energy-Efficient Ethernet on RJ-45 ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Data ports: 24 x 10/100/1000
- PoE: None (data-only model)
- Feature set: IP Services
- Default AC power supply: 350W (PWR-C1-350WAC)
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackPower: Supported
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 24,000 flows
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 20 Gbps per switch, up to 100 access points, 2000 clients, 64 WLANs
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 7.2 kg
- MTBF: 303,230 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing
- Power supply input: 100-240VAC, 50-60 Hz

FAQs

Q: Which licence tier does this switch ship with?
A: It ships with the IP Services feature set (-E suffix), which includes all LAN Base and IP Base features plus full Layer 3 routing. Optional Cisco DNA Essentials or Advantage term licences are available for SD-Access and DNA Center features.

Q: Does this model provide PoE?
A: No. This is a data-only model with 24 x 10/100/1000 ports and no PoE budget. It is powered by a PWR-C1-350WAC supply, and a second PWR-C1-350WAC can be added for redundancy.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G and C3850-NM-2-10G uplink network modules. The C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G modules are not supported.

Q: Can it be stacked with other switches?
A: Yes, but only with other Catalyst 3850 switches using the same IP Services feature set. Stacks cannot mix LAN Base, IP Base and IP Services. StackWise-480 cables such as STACK-T1-50CM, STACK-T1-1M and STACK-T1-3M are required.

Q: Do I need access point licences for wireless?
A: No access point licence is needed when the switch operates as a mobility agent. Additional access point licences are required to use mobility controller mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
