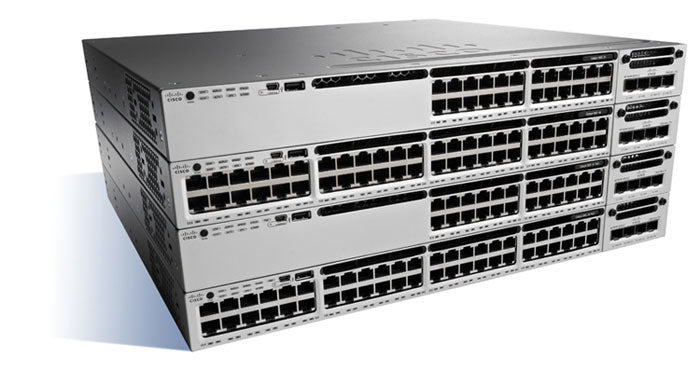

Cisco WS-C3850-24PW-S | Catalyst 3850 24-Port PoE+ Switch, 435W, IP Base

SKU:WS-C3850-24PW-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 24-port PoE+ switch is a stackable 1RU access switch with an integrated wireless controller, built for enterprise campus and branch wiring closets where wired and wireless access are converged. It supplies PoE+ to IP phones, Aironet access points and other 802.3at devices, and can terminate up to 100 access points and 2000 wireless clients per switch or stack.

It provides 24 x 10/100/1000 PoE+ ports with a 435W PoE budget from the 715W AC power supply, 92 Gbps switching capacity and a 68.4 Mpps forwarding rate. StackWise-480 delivers 480 Gbps of stack bandwidth, StackPower allows power sharing between switches, and the 24-port model supports up to 20 Gbps of wireless capacity. This SKU ships with the IP Base feature set and 5 access point licences.

Uplinks are provided by the optional C3850-NM-4-1G and C3850-NM-2-10G network modules. StackWise-480 cables in 50cm, 1m and 3m lengths are supported, along with the C3850-RAC-KIT and C3850-4PT-KIT mount kits. A switch running IP Base can only stack with other IP Base switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access on Cisco IOS XE with integrated wireless controller (mobility agent and mobility controller modes)
- Cisco UADP ASIC for uniform wired and wireless policy enforcement, application visibility and QoS
- Full IEEE 802.3at PoE+ with 30W on all copper ports
- StackWise-480 stacking of up to 9 switches with SSO resiliency, plus StackPower power sharing
- Flexible NetFlow for wired and wireless traffic visibility
- Hierarchical wireless QoS per AP, radio, SSID and user, with MQC-based modular QoS
- Security features including 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, CoPP and MACsec
- Redundant modular power supply bays and field-replaceable fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Ethernet PoE+ (IEEE 802.3at, up to 30W per port)
- Form factor: 1 RU, stackable
- Feature set: IP Base with 5 access point licences
- Default power supply: PWR-C1-715WAC (715W AC)
- Available PoE power: 435W (1535W with 1100W secondary PSU)
- Power supply input: 100-240VAC, 50-60 Hz, 10-5A
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- Wireless capacity: up to 20 Gbps
- Access points per switch/stack: 100
- Wireless clients per switch/stack: 2000
- WLANs per switch: 64
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Management: RJ-45 Ethernet management port and RJ-45 console port
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 7.4 kg
- Operating temperature: -5 C to +45 C up to 1500 m
- Relative humidity: 10% to 95%, non-condensing

FAQs

Q: Does this switch need a separate licence to run?
A: No. It ships with the IP Base feature set and 5 wireless access point licences. Upgrading to IP Services is available through RTU licences, and Cisco DNA Essentials or Advantage term licences are needed for SD-Access and DNA Center features.

Q: Can it deliver 30W PoE+ on all 24 ports?
A: With the default 715W supply the PoE budget is 435W. Full 30W on all 24 ports needs one PWR-C1-1100WAC or two PWR-C1-715WAC supplies. Adding a PWR-C1-1100WAC as the secondary supply raises the PoE budget to 1535W.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G and C3850-NM-2-10G network modules. The C3850-NM-4-10G, 8-10G and 2-40G modules are not supported on this model.

Q: Can it stack with other Catalyst 3850 switches?
A: Yes, using StackWise-480 cables (STACK-T1-50CM, 1M or 3M). A switch running IP Base can only stack with other IP Base switches.

Q: How many access points can it control?
A: As an integrated wireless controller it supports up to 100 access points and 2000 wireless clients per switch or stack. This SKU includes 5 AP licences, and additional licences (LIC-CTIOS-1A) are needed in mobility controller mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
