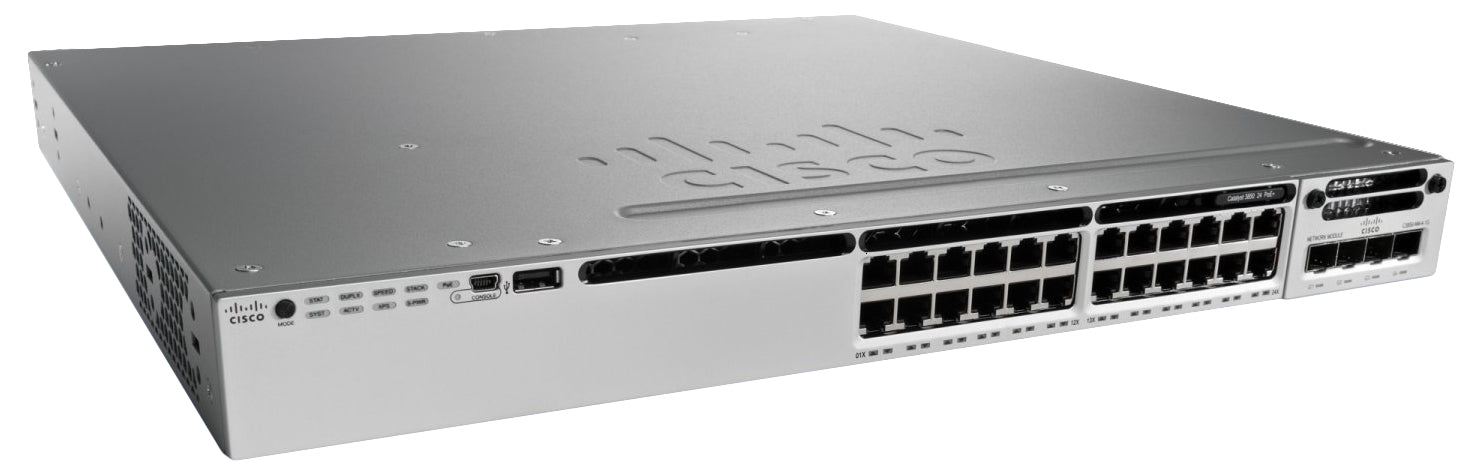

• Cisco WS-C3850-24P-L 24-port PoE+ switch with silver chassis
1 1

Cisco

Cisco WS-C3850-24P-L | Catalyst 3850 24-Port Gigabit PoE+ Switch, 435W, LAN Base

WS-C3850-24P-L

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3850-24P-L is an enterprise-class stackable access switch featuring 24 Gigabit Ethernet PoE+ ports with 435W total power budget. With LAN Base software, this 1U switch delivers comprehensive Layer 2 switching, support for up to 255 VLANs, and modular uplink flexibility via optional network modules. Ideal for campus access deployments requiring reliable power delivery to IP phones, wireless access points, and security cameras.

Features

Cisco StackWise-480 technology for high-resiliency stacking with 480 Gbps throughput
- StackPower technology for power redundancy and sharing across stack members
- Comprehensive Layer 2 switching with up to 255 VLANs (LAN Base)
- IEEE 802.3at PoE+ support delivering up to 30W per port
- Cisco Discovery Protocol v2 for granular PoE power negotiation
- Per-port power consumption control and PoE power sensing
- Energy-Efficient Ethernet (EEE) for reduced power consumption
- Flexible NetFlow (FNF) for traffic visibility and analysis
- Quality of Service (QoS) with MQC-based classification
- Advanced security: ACLs, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard
- Spanning Tree Protocols: RSTP, MSTP, PVRST+, STP Root Guard
- Link aggregation: LACP, PAgP support
- Multicast optimization: IGMP snooping, MLD snooping
- Modular and field-replaceable network modules, fans, and power supplies
- Dual redundant power supply support
- IPv4 and IPv6 dual-stack support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 Gigabit Ethernet PoE+ ports (IEEE 802.3at)
- PoE+ budget: 435W total (up to 30W per port)
- Default power supply: 715W AC (PWR-C1-715WAC)
- Uplink options: Modular network module slot supports C3850-NM-4-1G or C3850-NM-2-10G
- Switching capacity: 92 Gbps
- Forwarding rate: 68.4 Mpps
- RAM: 4 GB, Flash memory: 2 GB
- MAC address table: 32,000 entries
- VLAN support: Up to 255 VLANs (LAN Base)
- Stacking: StackWise-480 technology, up to 9 switches, 480 Gbps stack bandwidth
- StackPower support for power redundancy and sharing
- Form factor: 1U rack-mountable (44.5 x 44.5 x 4.45 cm)
- Management: CLI, web GUI, SNMPv3, USB console (Type-B), RJ-45 console, Gigabit Ethernet management port
- Dual redundant power supply support (second PSU optional)
- Software license: LAN Base (included)

FAQs

Q: What uplink modules are compatible with the WS-C3850-24P-L?
A: The WS-C3850-24P-L supports the C3850-NM-4-1G (4x 1G SFP) and C3850-NM-2-10G (2x 10G SFP+ or 4x 1G SFP) network modules. The modules are field-replaceable and hot-swappable, allowing flexible uplink configurations for fiber or higher-speed connectivity.

Q: Can I upgrade from LAN Base to IP Base or IP Services?
A: Yes, the Catalyst 3850 Series supports transparent software upgrades using Cisco's Right-To-Use (RTU) license activation via IOS CLI. You can upgrade to IP Base for enhanced Layer 3 routing and wireless controller functionality, or to IP Services for advanced features.

Q: How does StackPower work on this switch?
A: StackPower allows up to four switches to share power supplies as a common resource using dedicated StackPower cables (sold separately with LAN Base). It operates in power-sharing mode (aggregates all PSU power) or redundant mode (reserves the largest PSU for failover), eliminating the need for external redundant power systems.

Q: What is the maximum number of switches I can stack with this model?
A: You can stack up to 9 Catalyst 3850 switches with the same feature set (LAN Base) using StackWise-480 technology, providing 480 Gbps of total stack bandwidth. LAN Base switches can only stack with other LAN Base models.

Q: Does this switch support wireless controller functionality?
A: The WS-C3850-24P-L ships with LAN Base software, which does not include the integrated wireless controller feature. To enable wireless controller functionality (supporting up to 100 APs and 2,000 clients), you must upgrade to IP Base or higher license.
