Cisco

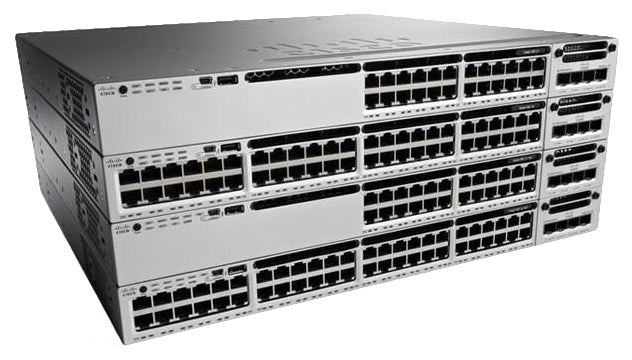

Cisco WS-C3850-24P-E | Catalyst 3850 24-Port Gigabit PoE+ Switch, 435W, IP Services

SKU:WS-C3850-24P-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 1RU enterprise access-layer switch with 24 Gigabit Ethernet PoE+ ports. It suits converged wired and wireless networks, powering IP phones, wireless access points and cameras while also working at the aggregation layer.

This SKU ships with the IP Services feature set on IOS-XE and a 715W AC power supply that leaves 435W available for PoE. It provides 92 Gbps of switching capacity, StackWise-480 stacking at 480 Gbps with up to 9 switches per stack, 4 GB DRAM and 2 GB flash. The integrated wireless controller can manage up to 100 access points and 2000 clients per switch or stack, with up to 20 Gbps of wireless bandwidth on this 24-port model.

Uplinks are added through optional network modules, including the C3850-NM-4-1G with 4 x 1GE and the C3850-NM-2-10G with 2 x 10GE. Optional 440WDC power supplies can be used for extra PoE capacity, and StackPower is supported for power sharing across a stack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability for converged wired and wireless access
- Full IEEE 802.3at PoE+ support with up to 30W per port
- StackWise-480 stacking and StackPower for resilient multi-switch deployments
- Modular, field-replaceable uplink network modules
- Redundant fans and field-replaceable, redundant power supplies
- Flexible NetFlow and Layer 2-4 switching on IOS-XE
- Part of the Cisco DNA portfolio of enterprise access and aggregation switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 PoE+ (IEEE 802.3at)
- Feature set: IP Services (IOS-XE)
- Default AC power supply: 715WAC (PWR-C1-715WAC)
- Available PoE power: 435W
- Optional 440WDC supplies: 220W PoE with 1 supply, 660W with 2 supplies
- Switching capacity: 92 Gbps
- Stacking: StackWise-480, 480 Gbps, up to 9 switches
- Optional uplink modules: C3850-NM-4-1G, C3850-NM-2-10G
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- Flexible NetFlow entries: 24,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Wireless bandwidth: up to 20 Gbps per switch
- Management ports: Ethernet management (RJ-45), console (RJ-45)
- Form factor: 1 RU rack-mountable
- Dimensions (H x W x D): 1.58 x 17.5 x 18.2 in approx.

FAQs

Q: Which licence tier does this model use?
A: WS-C3850-24P-E runs the IP Services (-E) feature set on IOS-XE. The other 24-port PoE variants are LAN Base (-L) and IP Base (-S). Wireless controller functions may need access point licences.

Q: How much PoE power does it provide?
A: The default 715WAC power supply gives 435W of PoE budget across the 24 PoE+ ports. Optional 440WDC supplies provide 220W with one supply or 660W with two.

Q: What uplink modules does it work with?
A: It accepts the C3850-NM-4-1G network module (4 x 1GE) and the C3850-NM-2-10G module (2 x 10GE, also supporting 4 x 1GE).

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3850 switches using StackWise-480 at 480 Gbps, with up to 9 members in a stack. StackPower is also supported.

Q: How does it differ from other 24-port Catalyst 3850 PoE+ models?
A: The -E suffix means the IP Services feature set with the 715WAC power supply and 435W PoE budget. The -L and -S variants carry the LAN Base and IP Base feature sets respectively.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
