Cisco

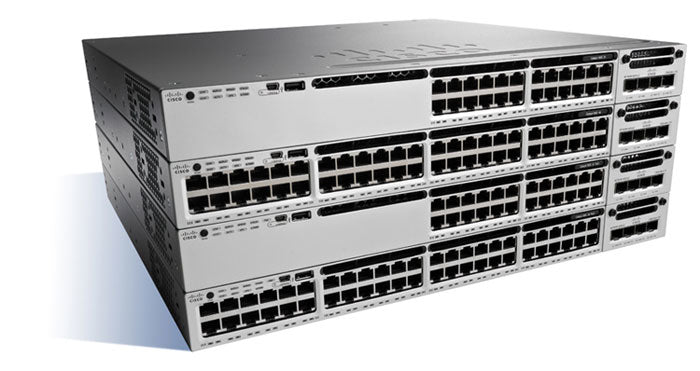

Cisco WS-C3850-16XS-S | Catalyst 3850 16-Port 10G SFP+ Switch, 350W, IP Base

SKU:WS-C3850-16XS-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-16XS-S is a 1 RU stackable Layer 3 switch for fibre-based access and aggregation in campus and branch networks. It pairs the 12-port 1/10G SFP+ base unit with the C3850-NM-4-10G uplink module, giving 16 SFP+ ports in total. With an integrated wireless controller, it suits converged wired and wireless access, EMI-sensitive environments and aggregation of smaller access switches over fibre.

The switch provides 320 Gbps of switching capacity and a 227.28 Mpps forwarding rate. Cisco StackWise-480 delivers 480 Gbps of stack bandwidth, and StackPower allows power sharing between stack members. The default 350WAC power supply (PWR-C1-350WAC) is fitted, and a second bay supports redundancy. This is a non-PoE model. The IP Base feature set covers IPv4 and IPv6 routed access, Flexible NetFlow and the wireless controller functionality, with an RTU upgrade path to IP Services.

SFP and SFP+ optics are supported in the SFP+ ports at 1G and 10G. StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M) and StackPower cables (CAB-SPWR-30CM, CAB-SPWR-150CM) connect it to other Catalyst 3850 switches running the same IP Base feature set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, mobility agent by default with mobility controller mode available on IP Base
- Cisco StackWise-480 stacking with Stateful Switchover for up to nine switches
- Cisco StackPower power sharing and redundancy among stack members
- UADP ASIC with uniform wired and wireless policy enforcement
- Flexible NetFlow, hierarchical wired and wireless QoS, and security features including 802.1X, DHCP snooping, DAI and IP source guard
- MACsec encryption with 128-bit AES and 256-bit support on SFP+ models
- Dual modular power supply bays and three field-replaceable fans
- IPv4 and IPv6 routing with static, RIP, EIGRP stub, OSPF routed access and PBR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 12 x 1/10G SFP+ fixed plus 4 x 10G SFP+ via C3850-NM-4-10G module (16 SFP+ total)
- Feature set: IP Base
- Switching capacity: 320 Gbps
- Forwarding rate: 227.28 Mpps
- Stacking: StackWise-480, 480 Gbps stack bandwidth, StackPower supported
- Power supply: PWR-C1-350WAC, 350W, 100-240VAC, 50-60 Hz
- PoE: Non-PoE model
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned): 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Memory: 4 GB DRAM, 4 GB flash
- Wireless controller: up to 100 access points and 2000 clients, up to 20 Gbps wireless capacity
- Power consumption: about 109 to 113 W with C3850-NM-4-10G, no PoE
- Dimensions (H x W x D): 1.75 x 17.5 x 17.7 in (4.45 x 44.5 x 45.0 cm)
- Weight: 12.9 lb (5.8 kg) base unit, excluding uplink module
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95% noncondensing
- MTBF: 371,440 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the IP Base feature set, indicated by the -S suffix. It can be upgraded to IP Services with an RTU licence, and term-based Cisco DNA Essentials or Advantage licences are needed for Software-Defined Access.

Q: Does it support PoE?
A: No. This is a non-PoE model, so it has no PoE budget. It uses a 350WAC power supply with a second bay available for redundancy.

Q: Can I stack it with other Catalyst 3850 switches?
A: Yes, using StackWise-480 cables for up to 480 Gbps of stack bandwidth, with StackPower cables for power sharing. All stack members must run the same IP Base feature set.

Q: Which power supplies can be fitted in the second bay?
A: The second bay supports the PWR-C1-715WAC, PWR-C1-1100WAC or PWR-C1-440WDC for redundancy alongside the default PWR-C1-350WAC.

Q: Which optics work in the SFP+ ports?
A: The SFP+ ports accept SFP and SFP+ optics at 1G and 10G, per the Cisco transceiver compatibility matrix.
