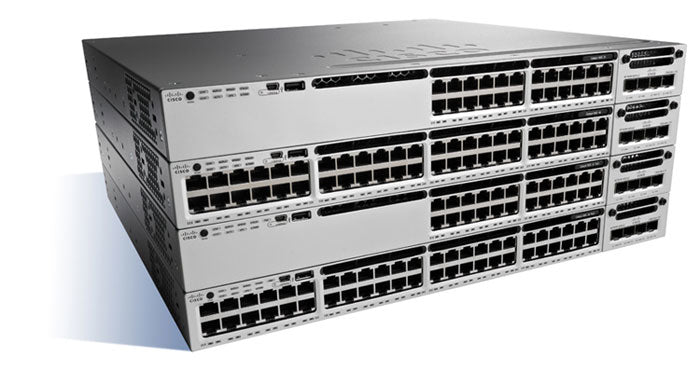

Cisco WS-C3850-16XS-E | Catalyst 3850 16-Port 10G SFP+ Switch, IP Services

SKU:WS-C3850-16XS-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Catalyst 3850 WS-C3850-16XS-E is a stackable 1RU Layer 3 switch for converged wired and wireless campus access and aggregation. With 10G SFP+ density and full routing, it suits distribution layers and small-core aggregation where fibre uplinks and Layer 3 services are needed.

This SKU provides 16 x 10G SFP+ ports: 12 fixed 1/10G SFP+ downlinks plus a 4-port 10G SFP+ network module (C3850-NM-4-10G). Switching capacity is 320 Gbps, and StackWise-480 delivers 480 Gbps of stack bandwidth. It ships with the IP Services feature set, which enables OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite. It is powered by a field-replaceable 350 W AC supply (PWR-C1-350WAC) and does not provide PoE. System resources include 4 GB DRAM, 4 GB flash, 32,000 MAC addresses and 24,000 IPv4 routes.

The fixed ports accept 1G and 10G SFP and SFP+ optics as well as DAC cables, and the switch stacks with other Catalyst 3850 switches using StackWise-480 and StackPower.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise-480 provides 480 Gbps of stack throughput
- Cisco StackPower for power redundancy across stack members
- Modular network module slot for 10G SFP+ uplinks
- IP Services feature set with full OSPF, EIGRP, BGPv4, IS-ISv4 and VRF-Lite
- Integrated wireless controller capability on the Catalyst 3850 platform
- Redundant fans and field-replaceable power supply
- Flexible NetFlow, AutoQoS and IOS XE programmability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 10G SFP+ (12 fixed 1/10G SFP+ plus 4 x 10G SFP+ on C3850-NM-4-10G module)
- Fixed downlink ports: 12 x 1/10G SFP+
- Uplink module: C3850-NM-4-10G (4 x 10G SFP+)
- Form factor: 1 RU stackable Layer 3 switch
- Feature set: IP Services
- Switching capacity: 320 Gbps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned): 24,000
- Flexible NetFlow entries: 24,000 flows
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 4 GB
- Power supply: PWR-C1-350WAC, 350 W AC, 100-240 VAC, 50-60 Hz
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 5.8 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 10% to 95%, noncondensing
- Storage temperature: -40 to 70 C
- MTBF: 371,440 hours

FAQs

Q: Which licence tier does this switch have?
A: The -E suffix means the IP Services feature set, the highest tier on the Catalyst 3850. IP Base and LAN Base are the lower tiers. Wireless controller AP licences are separate.

Q: Does this switch support PoE?
A: No. This is an SFP+ fibre model with no PoE. It runs from a 350 W AC power supply (PWR-C1-350WAC), 100-240 VAC.

Q: What optics and modules does it work with?
A: The 12 fixed ports accept 1G and 10G SFP and SFP+ optics and DAC cables. The uplink slot is documented for the C3850-NM-4-10G module, which provides 4 x 10G SFP+.

Q: Can it be stacked?
A: Yes. It stacks with other Catalyst 3850 switches using StackWise-480 for 480 Gbps of stack bandwidth, and StackPower for power redundancy.

Q: How does this differ from other 3850 SFP+ models?
A: This SKU combines the IP Services feature set with 16 x 10G SFP+ ports (12 fixed plus a 4-port module) and a 350 W AC power supply.
