Cisco

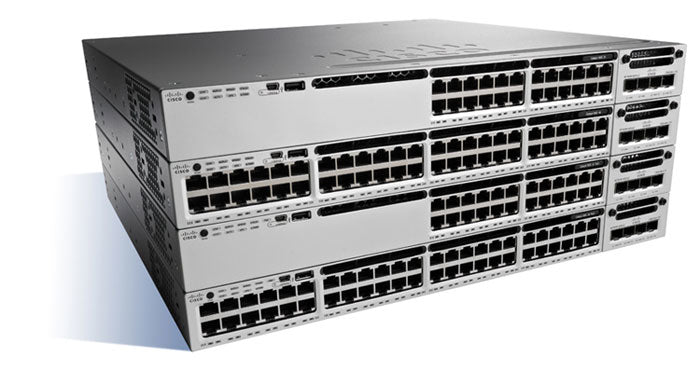

Cisco WS-C3850-12XS-E | Catalyst 3850 12-Port 10G SFP+ Switch, IP Services, 350W

SKU:WS-C3850-12XS-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 12XS is a stackable 1RU Layer 3 switch built for access and aggregation layers in campus and branch networks. It suits fibre-based 10G aggregation, converged wired and wireless access, and EMI-sensitive or secure deployments where copper is not an option.

This SKU provides 12 fixed 1/10G SFP+ ports, 320 Gbps switching capacity and a 227.28 Mpps forwarding rate, with 4 GB of DRAM and 4 GB of flash. It carries the IP Services feature set and a 350WAC power supply, with a second PSU bay for redundancy. This is a non-PoE model. StackWise-480 delivers 480 Gbps of stacking bandwidth, and the integrated wireless controller can manage up to 100 access points and 2000 clients per switch or stack.

An optional C3850-NM-4-10G uplink module adds 4 x 1G or 4 x 10G ports. Stacking is supported with other Catalyst 3850 switches running the same IP Services feature set, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M). StackPower cables are CAB-SPWR-30CM and CAB-SPWR-150CM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller with mobility agent and mobility controller modes
- Cisco StackWise-480 stacking and StackPower power sharing
- Cisco UADP ASIC with Flexible NetFlow and hierarchical wired and wireless QoS
- MACsec encryption (256-bit on SFP+ models)
- Advanced Layer 3 routing including OSPF, EIGRP, BGP, IS-IS, PIM, VRF-Lite and IPv6 routing
- Audio Video Bridging (IEEE 802.1 AVB) support
- Cisco DNA Essentials and Advantage add-on licensing for SD-Access
- Cisco Smart Install, Auto Smartports and Embedded Event Manager

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 12 x 1/10G SFP+
- Feature set: IP Services (-E)
- Default power supply: PWR-C1-350WAC
- PoE: None (non-PoE model)
- Optional network module: C3850-NM-4-10G (4 x 1G / 4 x 10G)
- Switching capacity: 320 Gbps
- Forwarding rate: 227.28 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackPower: Supported
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 24,000 flows
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Access points per switch or stack: 100
- Wireless clients per switch or stack: 2000
- WLANs per switch: 64
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1RU)
- Weight: 5.8 kg
- MTBF: 371,440 hours
- Power consumption with C3850-NM-4-10G: 109.0 W at 0% traffic, 112.7 W at 100% traffic
- PSU input: 100-240VAC, 50-60 Hz
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95% noncondensing

FAQs

Q: Which licence does this switch include?
A: This SKU includes the IP Services feature set (-E), which is required for full OSPF, EIGRP, BGP, IS-IS, PIM and VRF-Lite. Cisco DNA Essentials or Advantage term licences are optional add-ons for SD-Access and analytics.

Q: Does it support PoE?
A: No. This is a non-PoE model with no PoE budget. It is powered by a 350WAC supply (PWR-C1-350WAC) and has a second PSU bay for redundancy.

Q: Which uplink module works with this model?
A: Only the C3850-NM-4-10G (4 x 1G or 4 x 10G) is supported on 12-port SFP+ models. The C3850-NM-4-1G and C3850-NM-2-10G modules are not supported.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes, using StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M). It stacks only with other 3850 switches running the same IP Services feature set.

Q: Do I need an access point licence to use the wireless controller?
A: An access point licence is only needed when the switch operates in mobility controller mode. The switch or stack can manage up to 100 access points and 2000 clients.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
