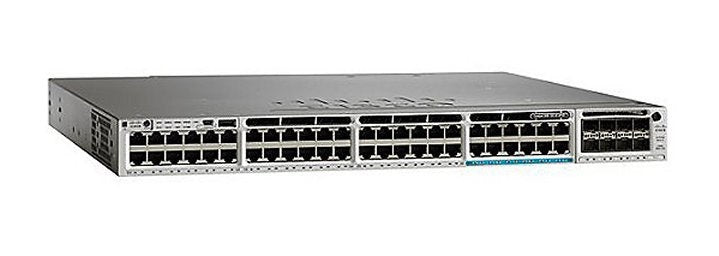

Cisco WS-C3850-12X48UW-S | Catalyst 3850 48-Port UPoE Switch, 12x mGig, IP Base

SKU:WS-C3850-12X48UW-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port UPoE switch is a stackable 1RU access-layer switch for converged wired and wireless campus and branch networks. It combines an integrated wireless controller (mobility agent and mobility controller modes) with StackWise-480 stacking, making it well suited to powering high-wattage PoE devices such as access points, IP phones, thin clients and access control hardware.

This SKU provides 48 UPoE ports, 12 of which are Multigigabit (100Mbps/1/2.5/5/10 Gbps) for 802.11ac access points, with 472 Gbps of switching capacity and a 460 Mpps forwarding rate. It ships with a single 1100W AC power supply providing 630W of PoE, rising to 1730W with a second 1100W supply. It runs the IP Base feature set and includes a bundle of 5 access point licences, supporting up to 100 access points and 2000 wireless clients per switch or stack.

Optional uplink network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G) add 1G, 10G or 40G uplinks. It stacks only with other Catalyst 3850 switches running the same feature set, using STACK-T1 cables, and supports StackPower for power sharing across the stack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller with mobility agent and mobility controller modes
- Cisco UPoE delivering up to 60W per port
- IEEE 802.3bz Multigigabit on 12 ports for speeds up to 10 Gbps over Cat5e, Cat6 and Cat6a cabling
- StackWise-480 stacking with SSO resiliency for up to nine switches
- StackPower for power sharing and redundancy across the stack
- Dual redundant modular power supplies and three field-replaceable fans
- Cisco UADP ASIC with Flexible NetFlow and hierarchical wired and wireless QoS
- MACsec encryption plus 802.1X, DHCP snooping, DAI, IP source guard and port security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x UPoE (10/100/1000), including 12 x 100Mbps/1/2.5/5/10 Gbps Multigigabit
- Feature set: IP Base with 5 access point licences
- Power supply: 1100W AC (PWR-C1-1100WAC)
- Available PoE power: 630W (1730W with a second 1100W supply)
- Switching capacity: 472 Gbps
- Forwarding rate: 460 Mpps (64B packets)
- Stacking bandwidth: 480 Gbps (StackWise-480)
- StackPower: Yes
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 100 access points and 2000 clients per switch or stack
- WLANs per switch: 64
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 8.0 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing
- MTBF: 202,030 hours
- Form factor: 1 RU

FAQs

Q: What licensing does this switch ship with?
A: It ships with the IP Base feature set, which includes mobility agent and mobility controller functionality, plus a bundle of 5 access point licences. IP Services can be reached with an RTU upgrade licence, and additional AP licences (LIC-CTIOS-1A) are needed for mobility controller mode beyond the bundled five.

Q: How much PoE power does it provide?
A: With the single 1100W AC power supply it provides 630W of PoE. Adding a second PWR-C1-1100WAC raises the budget to 1730W. UPoE at 60W per port on up to 30 ports of this 48-port switch requires two 1100W supplies.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G network modules.

Q: Can it be stacked with other switches?
A: Yes, using StackWise-480 at 480 Gbps with STACK-T1-50CM, 1M or 3M cables. It stacks only with other Catalyst 3850 switches running the same IP Base feature set.

Q: Which access points and wireless controllers does it work with?
A: It works with Cisco WLC 5760, WLC 5508 and WiSM2 as central mobility controllers, and supports Aironet 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points.
