Cisco

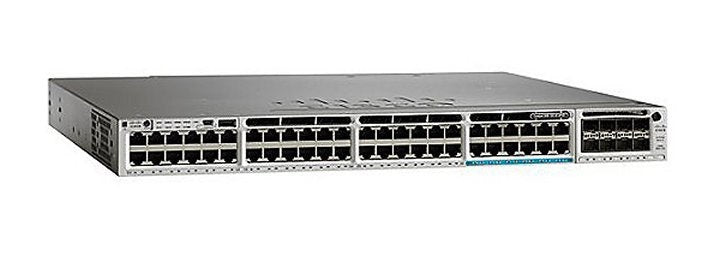

Cisco WS-C3850-12X48U-S | Catalyst 3850 48-Port UPoE Switch, 12x MultiGig, IP Base

SKU:WS-C3850-12X48U-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 WS-C3850-12X48U-S is a stackable 1RU enterprise access switch for campus and branch networks that need converged wired and wireless access. It suits 802.11ac Wave 2 access points that need 2.5 or 5 Gbps over existing Cat5e or Cat6 cabling, and UPoE endpoints such as VDI clients, IP turrets, compact switches and access control devices.

This model provides 48 UPoE ports, 12 of which are Multigigabit (100Mbps/1/2.5/5/10 Gbps). Cisco UPoE delivers up to 60W per port, with 630W of available PoE from the default 1100W AC power supply. Switching capacity is 472 Gbps with a 460 Mpps forwarding rate, and StackWise-480 provides 480 Gbps of stack bandwidth. It ships with the IP Base feature set, which includes entry-level Layer 3 features, routed access and Flexible NetFlow, and it can be upgraded to IP Services through an RTU licence.

Uplinks are provided by modular network modules, including the C3850-NM-4-1G, NM-2-10G, NM-4-10G, NM-8-10G and NM-2-40G. StackWise-480 stacking cables and StackPower cables are available for stacking and power sharing, and the switch works with Cisco WLC 5760, WLC 5508 and WiSM2 controllers as well as Prime Infrastructure, ISE and DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability in mobility agent and mobility controller modes
- Multigigabit 2.5/5/10 Gbps support over Cat5e, Cat6 and Cat6a with IEEE 802.3bz
- Cisco StackWise-480 stacking for up to 9 switches, plus StackPower sharing and redundancy
- Dual redundant modular power supplies and three field-replaceable fans
- UADP ASIC with hierarchical wired and wireless QoS and Flexible NetFlow
- Security features including 802.1x, DHCP snooping, DAI, IP source guard, MACsec and CoPP
- Smart Install, Auto Smartports and Embedded Event Manager for simplified deployment and automation
- SD-Access ready through term-based Cisco DNA Essentials or Advantage add-on licences

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C3850-12X48U-S
- Ports: 48 x 10/100/1000 UPoE, including 12 x 100Mbps/1/2.5/5/10 Gbps Multigigabit ports
- PoE standard: Cisco UPoE, up to 60W per port
- Available PoE power: 630W with default 1100W AC power supply
- PoE budget with 1100W secondary power supply: 1730W
- Default power supply: 1100W AC (PWR-C1-1100WAC)
- Switching capacity: 472 Gbps
- Forwarding rate: 460 Mpps (64B packets)
- Stacking: StackWise-480, 480 Gbps stack bandwidth
- StackPower: Supported
- Modular uplinks: C3850-NM-4-1G, NM-2-10G, NM-4-10G, NM-8-10G, NM-2-40G
- Feature set: IP Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Access points per switch or stack: 100
- Wireless clients per switch or stack: 2000
- Dimensions (H x W x D): 1.75 x 17.5 x 17.7 in (4.45 x 44.5 x 45.0 cm)
- Weight: 17.6 lb (8.0 kg)
- Operating temperature (AC PSU): -5 to 45 C up to 1500 m
- MTBF: 202,030 hours

FAQs

Q: Which licence does this switch ship with?
A: The -S suffix indicates the IP Base feature set. It can be upgraded to IP Services using an RTU licence (C3850-48-S-E). Cisco DNA Essentials or Advantage term licences are optional and are needed for SD-Access and DNA Center features.

Q: How many UPoE ports can it power at the full 60W?
A: With the default 1100W AC power supply the switch provides 630W of PoE. Full UPOE on 48-port models is supported on a maximum of about 30 ports and requires two PWR-C1-1100WAC supplies, which raises the PoE budget to 1730W.

Q: Which uplink modules does it use?
A: It accepts the C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G network modules.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes. It supports StackWise-480 with 480 Gbps stack bandwidth using STACK-T1 cables, and StackPower using CAB-SPWR cables. LAN Base, IP Base and IP Services switches cannot be mixed in the same stack.

Q: How does it differ from other 48-port Catalyst 3850 UPoE models?
A: This SKU has 12 Multigigabit UPoE ports with 630W of PoE and the IP Base feature set. The -S suffix distinguishes it from siblings with other feature sets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
