Cisco

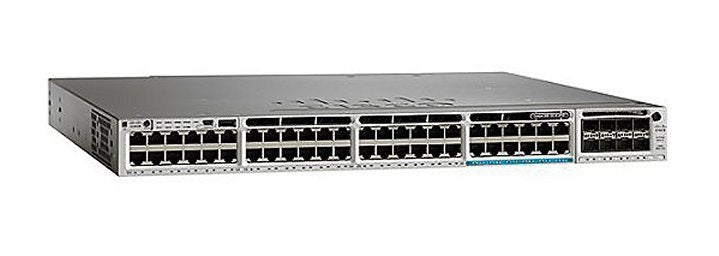

Cisco WS-C3850-12X48U-L | Catalyst 3850 48-Port UPOE Switch, 12x mGig, LAN Base

SKU:WS-C3850-12X48U-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 is a stackable 48-port 10/100/1000 UPOE access switch for campus and branch networks that need converged wired and wireless access. This model pairs 48 UPOE ports with 12 Multigigabit ports (100Mbps/1/2.5/5/10 Gbps), which suits 802.11ac Wave 2 access points, IoT devices and 60W endpoints such as VDI clients and IP turrets.

It supplies Cisco UPOE at up to 60W per port and ships with one 1100W AC power supply (PWR-C1-1100WAC), giving 630W of available PoE power, or 1730W with a second 1100W supply fitted. Switching capacity is 472 Gbps with a forwarding rate of 460 Mpps, and StackWise-480 provides 480 Gbps of stack bandwidth in a 1 RU chassis. This SKU carries the LAN Base feature set, with an upgrade path to IP Base or IP Services via RTU licences, and it stacks only with other Catalyst 3850 LAN Base switches.

Optional uplink network modules include C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G. Integrated wireless controller capability supports up to 100 access points and 2000 wireless clients per switch or stack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE delivering up to 60W per port
- Multigigabit Ethernet (802.3bz) with 2.5/5 Gbps over Cat5e/Cat6 and up to 10 Gbps over Cat6a
- Cisco StackWise-480 stacking with Stateful Switchover (SSO)
- Cisco StackPower power sharing and redundancy across stack members
- Integrated wireless controller capability in mobility agent and mobility controller modes
- Dual redundant modular power supplies and three field-replaceable fans
- MACsec encryption with 128-bit AES on all models and 256-bit AES on Multigigabit models
- Flexible NetFlow, hierarchical wired and wireless QoS and Energy-Efficient Ethernet
- Cisco SmartOperations including Smart Install, Auto Smartports and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 UPOE, of which 12 are Multigigabit (100Mbps/1/2.5/5/10 Gbps)
- PoE: Cisco UPOE, up to 60W per port
- Feature set: LAN Base
- Power supply: 1 x 1100W AC (PWR-C1-1100WAC), second PSU optional
- Available PoE power: 630W with one 1100W PSU, 1730W with a second 1100W PSU
- Switching capacity: 472 Gbps
- Forwarding rate: 460 Mpps (64B packets)
- Stacking: StackWise-480, 480 Gbps stack bandwidth
- StackPower: Supported
- Uplinks: Optional modular uplink network modules
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Wireless: up to 100 access points and 2000 clients per switch or stack
- Form factor: 1 RU
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 8.0 kg
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Power input: 115-240VAC, 50-60 Hz

FAQs

Q: Which licence does this switch carry, and can it be upgraded?
A: This SKU ships with the LAN Base feature set. It can be upgraded to IP Base or IP Services using RTU licences such as L-C3850-48-L-S and L-C3850-48-L-E. Optional Cisco DNA Essentials or Advantage term licences are available for SD-Access and DNA features.

Q: How much PoE power is available?
A: With one 1100W power supply the switch provides 630W of available PoE power. Fitting a second PWR-C1-1100WAC raises the PoE budget to 1730W. Two supplies are required to deliver full UPOE (60W per port) on up to 30 ports.

Q: Which uplink modules and power supplies does it work with?
A: Uplink modules supported are C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G. Compatible power supplies are PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC and PWR-C1-440WDC.

Q: Can it be stacked with other Catalyst 3850 switches?
A: Yes, using StackWise-480 stacking cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M), but only with other Catalyst 3850 LAN Base switches. StackPower cables CAB-SPWR-30CM and CAB-SPWR-150CM add power sharing across the stack.

Q: How does this model differ from other Catalyst 3850 SKUs?
A: It combines the LAN Base feature set, an 1100W AC power supply and 12 Multigigabit UPOE ports among its 48 ports. Other 3850 SKUs differ in feature set, power supply rating or the number of Multigigabit ports.
