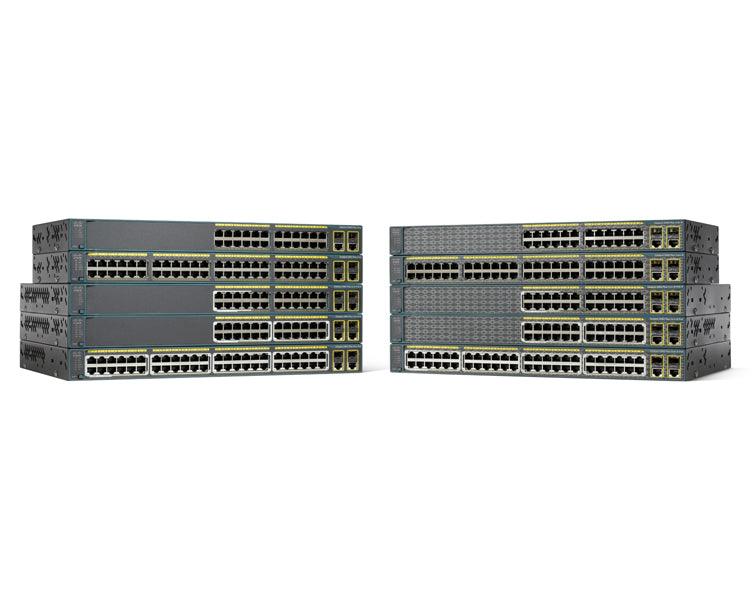

Cisco WS-C2960+48TC-L | Catalyst 2960-Plus 48-Port Fast Ethernet Switch, LAN Base
SKU:WS-C2960+48TC-L
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 2960-Plus 48TC-L is a fixed-configuration Layer 2 Fast Ethernet switch built for branch offices, remote sites, retail locations and conventional desktop workspaces. It also suits building infrastructure and physical security deployments that need dependable, non-PoE access ports.
It provides 48 x 10/100 Ethernet ports plus 2 dual-purpose uplinks that accept either SFP modules or 1000BASE-T copper. Forwarding bandwidth is 16 Gbps with a 10.1 Mpps forwarding rate on 64-byte Layer 3 packets, and it supports 255 active VLANs from a pool of 4K VLAN IDs. Memory is 64 MB flash and 128 MB DRAM. This is a non-PoE model running the LAN Base Cisco IOS feature set, so it suits access ports that do not need to power connected devices.
It is a 1RU rack-mount unit using an internal auto-ranging AC supply at roughly 30 W typical draw. The Cisco RPS 2300 can be attached for redundant power, and the uplinks work with Cisco SFP modules.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise-class Layer 2 switching for branch offices and workspaces
- Cisco Catalyst SmartOperations: Smart Install, Auto Smartports and Smart Troubleshooting
- Cisco EnergyWise technology for managing the energy use of connected devices
- Security: Flexible Authentication, 802.1x Monitor Mode, RADIUS Change of Authorization, Port Security, Dynamic ARP Inspection, IP Source Guard and Private VLAN Edge
- QoS: four egress queues per port, strict priority queuing, SRR scheduling, WTD congestion avoidance and up to 64 policers per port
- 802.1p CoS and DSCP classification
- Optional redundant power via the Cisco RPS 2300
- Supported by Cisco Prime Infrastructure
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco Catalyst 2960-Plus 48TC-L
- 10/100 Ethernet ports: 48
- Uplinks: 2 x dual-purpose (SFP or 1000BASE-T)
- Cisco IOS feature set: LAN Base
- PoE: None (non-PoE)
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 10.1 Mpps
- Maximum active VLANs: 255
- VLAN IDs available: 4K
- Flash memory: 64 MB
- DRAM: 128 MB
- Maximum transmission unit (L3 packet): 9000 bytes
- Jumbo frame (Ethernet frame): 9018 bytes
- Dimensions (H x W x D): 4.4 x 45.0 x 24.2 cm
- Weight: 3.6 kg
- Operating temperature up to 1500 m: -5 to 45 C
- Operating temperature up to 3000 m: -5 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 10% to 95% non-condensing
- AC input: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Power consumption: approx. 30 W typical
- MTBF: 623,000 hours
- Acoustic noise (sound pressure, typical/maximum): 33 / 36 dBA
FAQs
Q: Which software feature set does this switch run?
A: It runs the LAN Base Cisco IOS feature set, indicated by the -L suffix. Each model is tied to its feature level, and LAN Lite (-S) models cannot be upgraded to LAN Base.
Q: Does this switch provide PoE?
A: No. This is a non-PoE model with no available PoE power, so it will not power phones or access points. It is fed by an internal auto-ranging AC supply of 100 to 240 VAC.
Q: What can I use in the two uplink ports?
A: The 2 dual-purpose uplinks accept either SFP modules or 1000BASE-T copper connections. Refer to the Cisco SFP transceiver compatibility matrix for supported modules.
Q: Can I add redundant power?
A: Yes. The Cisco RPS 2300 (PWR-RPS2300) can be attached for redundant power, using a 3A at 12V DC input.
Q: How is it mounted?
A: It is a 1RU rack-mount switch measuring 4.4 x 45.0 x 24.2 cm. Cisco rack-mount kits RCKMNT-1RU= and RCKMNT-REC-1RU= are available for it.
