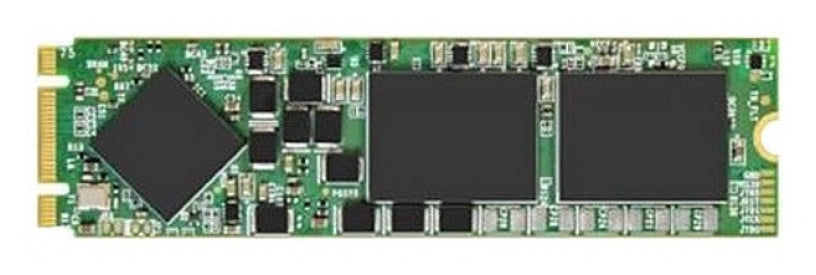

Cisco UCSXE-M2480OA1V | Unified Edge 480GB M.2 SATA Boot SSD, Solidigm S4520

UCSXE-M2480OA1V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 480GB M.2 SATA boot SSD is based on the Solidigm S4520 and is designed for the Cisco Unified Edge platform. It is orderable for the Cisco UCS XE130c M8 compute node in the UCSXE-9305 chassis and serves as the operating system boot device for edge and branch deployments.

The drive uses the M.2 form factor with a SATA 6Gb/s interface and a 1X endurance class, with a capacity of 480GB. It connects through the compute node's M.2 SATA RAID controller (UCSXE-M2-HWRD2), which supports RAID 1 and JBOD. On the XE130c M8, M.2 drives are installed in pairs and capacities cannot be mixed, so a matched pair of these drives provides mirrored boot under RAID 1. This SKU is the 480GB option, while UCSXE-M2240OA1V is the 240GB sibling.

The host platform boots in UEFI mode only, and drive replacement is not hot-plug, so the compute node must be powered off first. Volume and drive configuration and monitoring are supported through Cisco Intersight. This is a Unified Edge part and is not interchangeable with the UCSX- (X-Series) or UCS-M2 (C-Series) boot drives.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Boot-optimised M.2 SATA SSD intended for OS boot on the compute node
- Works with the 6Gb/s SATA boot-optimised M.2 RAID controller (UCSXE-M2-HWRD2)
- RAID 1 mirrored boot supported on a matched pair of drives, with JBOD also available
- Volume and M.2 drive configuration and monitoring supported through Cisco Intersight
- Boot-only role, with E3.S NVMe drives usable for boot where no M.2 drives are fitted

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 480GB
- Form factor: M.2
- Interface: SATA 6Gb/s
- Drive family: Solidigm S4520, 1X endurance class
- Product ID description: 480GB M.2 Boot Solidigm S4520 SATA 1X SSD
- Drive model: SSDSCKKB480GZK
- Host platform: Cisco UCS XE130c M8 compute node in the UCSXE-9305 chassis
- Controller: UCSXE-M2-HWRD2 M.2 SATA RAID controller
- RAID support: RAID 1 and JBOD
- Boot mode: UEFI only (legacy boot not supported)
- Ordering rule: M.2 drives are ordered in pairs (quantity 0 or 2), capacities cannot be mixed
- Hot-plug replacement: not supported, compute node must be powered off
- Host operating temperature: -5 to 45 C
- Host non-operating temperature: -40 to 85 C
- Host operating humidity: 5% to 85% noncondensing

FAQs

Q: Which Cisco platform does this SSD fit?
A: It is for the Cisco UCS XE130c M8 compute node in the Cisco Unified Edge UCSXE-9305 chassis, installed through the UCSXE-M2-HWRD2 M.2 SATA RAID controller.

Q: Do I need to buy these in pairs?
A: On the XE130c M8, M.2 drives are ordered in pairs (quantity 0 or 2) and capacities cannot be mixed. A matched pair allows mirrored boot using RAID 1.

Q: Does this drive need a licence?
A: No licence is required for the drive itself. The host platform is managed through Cisco Intersight, which has its own licensing requirements.

Q: Can I swap it while the server is running?
A: No. Hot-plug replacement is not supported, so the compute node must be powered off before the drive is replaced.

Q: How does it differ from UCSXE-M2240OA1V?
A: They are the same Solidigm S4520 M.2 SATA boot drive type for Unified Edge. This SKU is 480GB, while UCSXE-M2240OA1V is 240GB.
