Cisco UCSXE-9305-CHS | Unified Edge UCS XE9305 3RU Chassis, 5 Node Slots, No NFC
SKU:UCSXE-9305-CHS
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

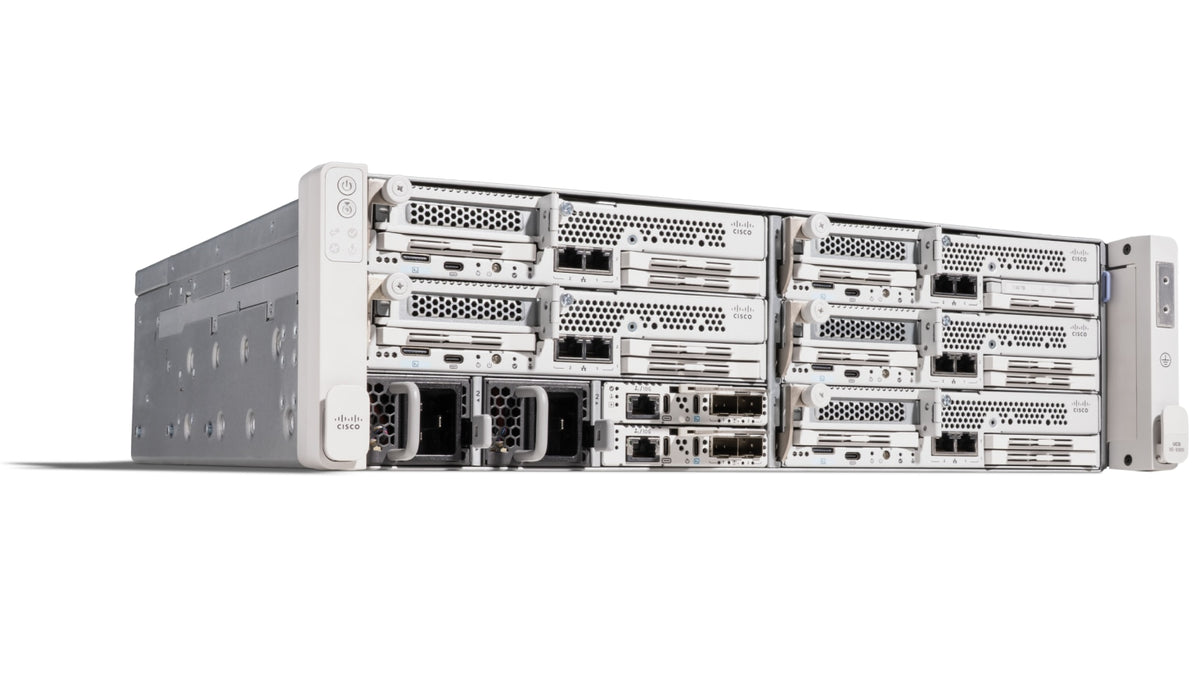

The UCS XE9305 is the 3RU modular chassis at the core of Cisco Unified Edge. It suits distributed edge sites such as retail, branch and remote locations, where compute, networking and security need to run in space-, power- and noise-constrained environments with centralised management at scale.
The chassis has five front-facing node slots for compute nodes and future networking or security nodes, five hot-swappable 80 mm dual-rotor fan modules, and two power supply bays for 2400 W Titanium PSUs in N+N redundancy. Two hot-swappable Edge Chassis Management Controllers each carry an embedded 25 Gbps switch, with five internal node-facing ports and two front SFP+ uplinks per controller. A dedicated PCIe Gen5 slot takes a 75 W half-height, half-length GPU such as the NVIDIA L4. This SKU includes the fans and uses the left slam latch without NFC.
The chassis accepts UCS XE130c M8 and UCS XE150c M8 compute nodes, plus up to two Cisco C8255-G2-UCSXE Secure Router Nodes. Management is through Cisco Intersight, which needs an Intersight licence and Intersight Managed Mode. The chassis itself carries no licence.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Modular, edge-optimised platform combining compute, storage, networking and security
- Short-depth, multi-mountable chassis with five slots for sled-style nodes that are easy to service
- Active-active embedded 25 Gbps switches on the chassis management controllers give high-bandwidth inter-node connectivity
- Hot-swappable PSUs, fans and controllers that can be serviced without special tools
- Quiet, extended-temperature operation for non-datacentre locations
- Optional locking security bezel with a separately replaceable air filter
- Flexible mounting with 4-post sliding rails, 2-post static kit, wall brackets and shelf brackets
- Zero-touch deployment and fleet management through Cisco Intersight
- AI-ready, with a GPU slot and support for Nutanix, Red Hat, VMware and SUSE software
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 3 RU, 5.12 in (13 cm) high
- Width: 17.32 in (44 cm)
- Depth: 18 in (45.7 cm) server only; 23 in (58.4 cm) with security bezel or air filter
- Node slots: 5 front-facing
- Chassis management controllers: 2 hot-swappable Cisco Edge Chassis Management Controllers
- Embedded switch fabric: 25 Gbps per controller, 5 internal node-facing ports and 2 front SFP+ uplinks
- Controller connectivity: 1 x RJ45 management uplink and 2 x USB-C ports per controller
- GPU: 1 dedicated PCIe Gen5 slot for a 75 W HH/HL GPU, such as the NVIDIA L4
- Fan modules: 5 x 80 mm hot-swappable dual-rotor fans
- Power supply bays: 2, for 2400 W Titanium PSUs
- Power redundancy: N+N (Grid)
- AC input voltage: 100 to 127 VAC; 200 to 240 VAC
- Frequency: 47 to 63 Hz
- Output voltage: 12 V
- Power connector: IEC320 C20
- Management: Cisco Intersight
- Operating altitude: 0 to 10,000 ft (0 to 3000 m)
- Sound pressure level: 40s dBA at under 20% load and 25 C
- Weight (empty chassis with 5 fans, 2 PSUs and 2 eCMCs): 37.94 lbs (17.21 kg)
- Left slam latch: without NFC
FAQs
Q: Does this chassis need a licence?
A: The chassis itself has no licence. It is managed through Cisco Intersight, which needs an Intersight licence or subscription and Intersight Managed Mode.
Q: What power supplies does it use?
A: It has two hot-swappable bays for 2400 W Titanium PSUs in N+N redundancy, AC (UCSXE-PSU-2400W) or DC (UCSXE-PSU-2400WDC). At low-line AC (100 to 127 V) each PSU delivers less power, so fewer nodes can be installed. The Cisco UCS Power Calculator helps with planning.
Q: Which nodes can be installed in it?
A: It accepts UCS XE130c M8 (12, 20 or 32-core) and UCS XE150c M8 (20 or 32-core) compute nodes, plus up to two Cisco C8255-G2-UCSXE Secure Router Nodes.
Q: How does this SKU differ from other XE9305 chassis options?
A: This SKU is the chassis with fans and the left slam latch without NFC. Versions with the NFC-enabled latch are separate part numbers.
Q: Can it be mounted in different ways?
A: Yes. Mounting options include the 4-post sliding rail kit (UCSXE-RAIL), the 2-post static kit (UCSXE-RKMT2P), wall brackets and shelf brackets.
Q: Can it take a GPU?
A: Yes. It has one dedicated PCIe Gen5 slot for a 75 W half-height, half-length GPU, such as the NVIDIA L4.
