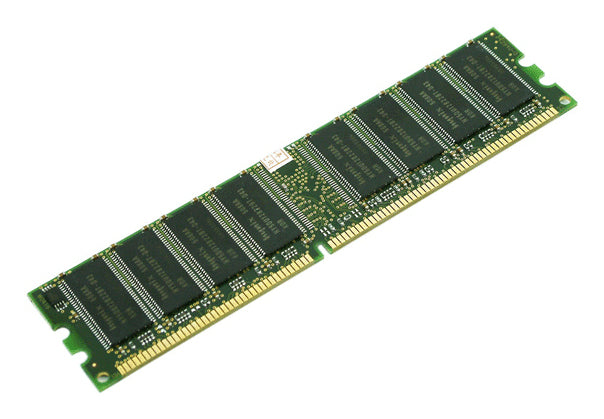

Cisco UCSX-MCX32G2RE11 | UCS X-Series M8 32GB DDR5 MRDIMM 8800, 2Rx8

UCSX-MCX32G2RE11

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR5 MRDIMM (Multiplexed Rank DIMM) is built for Cisco UCS X210c M8 compute nodes running Intel Xeon 6 processors. It suits memory-intensive workloads on 1-socket and 2-socket configurations where higher memory bandwidth matters.

The module is rated at 8800 MT/s and uses a dual-rank x8 (2Rx8) organisation with 16Gb DRAM density, operating at 1.1 V. On Intel Xeon 6 CPUs at one DIMM per channel it runs at up to 8000 MT/s, limited by the CPU memory controller. Each CPU has eight MRDIMM channels, so a 2-socket server takes up to 16 modules. This 32GB 2Rx8 part is distinct from the 64GB 2Rx4 UCSX-MCX64G2RE11.

It is supported in the UCS X210c M8 and is not supported in the X410c M8. It requires Intel Xeon 6 SKUs 6787P, 6781P, 6767P, 6761P or 6747P. Populate slots A1 to H1 (blue slots) on each CPU, with an identical memory configuration across all sockets.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multiplexed Rank DIMM technology for higher memory bandwidth on Intel Xeon 6 platforms
- Dual-rank x8 organisation with 16Gb DRAM density
- Low 1.1 V DDR5 operating voltage
- Cisco-validated for UCS M8 servers
- Balanced configuration across all CPU sockets required
- One DIMM per channel population for maximum memory speed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 32GB
- Module type: DDR5 MRDIMM (Multiplexed Rank DIMM)
- Rated speed: 8800 MT/s
- Operating speed: up to 8000 MT/s on Intel Xeon 6 CPUs at 1 DPC
- Organisation: 2Rx8 (dual rank, x8)
- DRAM density: 16Gb
- Operational voltage: 1.1 V
- Memory channels: 8 MRDIMM channels per CPU
- Population: 1 DIMM per channel, slots A1-H1 (blue slots), 8 per CPU
- Modules per server: 8 per CPU, 16 for a 2-CPU server
- Supported compute node: UCS X210c M8
- Not supported: UCS X410c M8
- Supported CPUs: Intel Xeon 6 SKUs 6787P, 6781P, 6767P, 6761P, 6747P
- Cisco PID: UCSX-MCX32G2RE11

FAQs

Q: Which UCS compute nodes support this memory?
A: It is supported in the UCS X210c M8 compute node. It is not supported in the UCS X410c M8.

Q: Which processors does it require?
A: It requires an Intel Xeon 6 CPU, specifically SKUs 6787P, 6781P, 6767P, 6761P or 6747P.

Q: How should the modules be populated?
A: Install 8 modules per CPU in slots A1 to H1 (the blue slots), at one DIMM per channel. The memory configuration must be identical on every CPU socket.

Q: Does it run at the full 8800 MT/s rating?
A: On Intel Xeon 6 CPUs at one DIMM per channel it operates at up to 8000 MT/s, which is the maximum the CPU memory controller supports.

Q: How does it differ from UCSX-MCX64G2RE11?
A: This SKU is a 32GB 2Rx8 module with 16Gb DRAM. UCSX-MCX64G2RE11 is the 64GB 2Rx4 MRDIMM.
