Cisco UCSC-C480-M5ML | UCS C480 ML M5 4RU Rack Server, Service-Only Chassis
SKU:UCSC-C480-M5ML
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

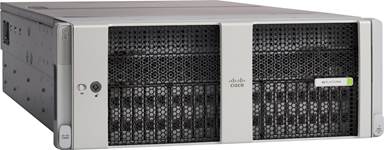

The UCS C480 ML M5 is a 4RU rack server from the Cisco UCS C-Series, built for deep learning training and other dense GPU workloads. It supports eight NVIDIA SXM2 V100 32GB modules linked by NVLink alongside two Intel Xeon Scalable CPUs, and suits teams that need fast model training with high-speed local NVMe storage. It can be deployed standalone or in a Cisco UCS-managed environment.
This SKU is the service-only chassis, supplied without GPUs, power supplies, CPUs, memory, drives or PCIe cards, so those components are specified separately. The platform offers 24 DDR4 DIMM slots running up to 2933 MHz, with up to 3 TB using 128GB DIMMs or up to 7.5 TB with Intel Optane DC Persistent Memory. Front storage takes up to 24 hot-swappable 2.5-inch SAS/SATA drives, including up to six NVMe drives, with dual M.2 SATA SSDs for boot. Four PCIe 3.0 slots and dual 10GBASE-T Intel X550 ports cover expansion and networking.
The server uses hot-pluggable, redundant 1600W AC power supplies, which must be an identical pair. It works with 1st and 2nd generation Intel Xeon Scalable CPUs, the Cisco 12-Gbps modular RAID controller, and Cisco 10/25G and 40/100G VICs. Management is through Cisco Intersight, Cisco IMC or UCS Manager.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Eight NVIDIA SXM2 V100 32GB modules with NVLink for fast deep learning model training
- Up to 24 front-accessible hot-swappable 2.5-inch HDDs or SSDs
- Up to 3 TB of memory with 128GB DIMMs, or up to 7.5 TB with Intel Optane DCPMM
- Up to six NVMe Gen3 x4 drives for high I/O performance
- Four PCIe 3.0 slots supporting 10/25G or 40/100G Cisco VICs
- Hot-swappable redundant power supplies for high availability
- Integrated dual 10-Gbps Ethernet ports
- Managed via Cisco Intersight, standalone IMC (Redfish, IPMI 2.0, SNMP, HTML5 vKVM, CLI, XML API) or Cisco UCS Manager
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 4RU rack server
- Processors: up to 2 x Intel Xeon Scalable (1st or 2nd generation)
- GPU: up to 8 x NVIDIA SXM2 V100 32GB modules with NVLink
- Memory: 24 DDR4 DIMM slots, 16, 32, 64 and 128 GB, up to 2933 MHz
- Persistent memory: Intel Optane DC Persistent Memory (128G, 256G, 512G) supported
- PCIe slots: 4 x PCIe 3.0
- RAID controller: Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 4-GB FBWC, up to 24 SAS/SATA drives
- Internal storage: up to 24 hot-swappable 2.5-inch SFF drives, up to 6 PCIe NVMe drives, DVD drive option
- Boot storage: dual M.2 SATA SSD drives
- Embedded NICs: dual 10GBASE-T Intel X550 Ethernet ports
- Power supplies: hot-pluggable, redundant 1600W AC (UCSC-PSU1-1600W), 200-240 VAC input, 80Plus Platinum
- Management: Cisco Intersight, Cisco IMC, Cisco UCS Manager
- Rack options: Cisco ball-bearing rail kit with optional reversible cable management arm
- Height: 7.0 in. (177.8 mm), 4RU
- Width: 19.0 in. (482.6 mm)
- Depth (including front handles and PSUs): 32.7 in. (830.6 mm)
- Maximum weight (fully loaded chassis): 146 lb (66.2 kg)
- Operating temperature: 5 to 35 C (derate 1 C per 305 m altitude)
- Operating humidity: 10 to 90% RH
- Operating altitude: 0 to 3048 m
FAQs
Q: What is missing from this service-only chassis?
A: This SKU is the bare chassis without GPUs, power supplies, CPUs, memory, drives or PCIe cards. Each of these components must be specified separately to build a working server.
Q: Does it need a licence to operate?
A: No licence is needed to operate the server itself. Cisco Intersight and UCS Manager management features are subject to Cisco's separate licensing tiers.
Q: What power supplies does it use?
A: It uses hot-pluggable, redundant 1600W AC power supplies (UCSC-PSU1-1600W) with a 200-240 VAC input. Both power supplies must be identical.
Q: Which processors, memory and cards does it work with?
A: It supports 1st and 2nd generation Intel Xeon Scalable CPUs, DDR4 DIMMs, Intel Optane DC Persistent Memory, the Cisco 12G modular RAID controller and Cisco 10/25G and 40/100G VICs.
Q: What rack mounting options are available?
A: The Cisco ball-bearing rail kit is supported, with an optional reversible cable management arm.
