Cisco UCSC-C245-M8SX | UCS C245 M8 2RU Rack Server, 24x SFF, No CPU/RAM
SKU:UCSC-C245-M8SX
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

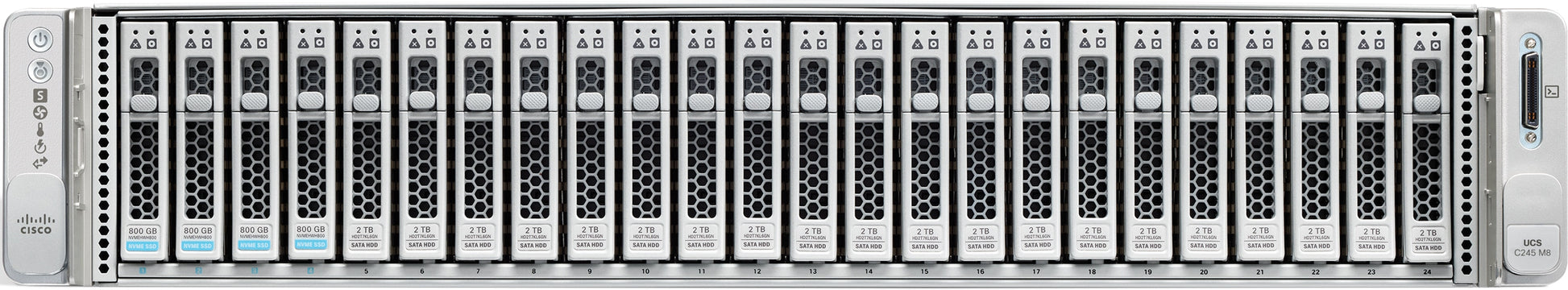

The Cisco UCS C245 M8 is a 2RU, dual-socket AMD EPYC rack server built for storage- and I/O-intensive workloads. It suits virtualisation and consolidation, big data and analytics, AI/ML, small and medium-sized business databases, storage servers and enterprise high-performance appliances. UCSC-C245-M8SX is the standard SFF-drive chassis, supplied as the base server node with no CPU or memory fitted.
This chassis supports up to 2 x 5th Gen or 4th Gen AMD EPYC processors and 24 DDR5 DIMM slots for up to 6 TB of memory. Storage is up to 28 x 2.5-inch SAS, SATA or NVMe drive bays (24 front SFF), with up to 8 direct-attach NVMe drives, plus dual M.2 SATA/NVMe boot with hardware RAID. Expansion includes up to 8 PCIe Gen 4.0 or up to 4 PCIe Gen 5.0 slots, a dedicated mLOM/OCP 3.0 slot, and support for up to 3 NVIDIA RTX PRO 4500 Blackwell Server Edition GPUs. Hot-pluggable redundant power supplies are available in 1050W DC, 1600W AC, 1200W AC and 2300W AC options.
The server works with Cisco UCS VIC 15000 Series adapters, Cisco 24-Gbps tri-mode RAID and HBA controllers, and the Cisco ball-bearing rail kit with optional cable management arm. It can be managed standalone through Cisco IMC, or through Cisco Intersight or UCS Manager.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-socket support for 5th Gen or 4th Gen AMD EPYC CPUs, up to 320 cores per server
- AMD Infinity Guard security features
- Tri-mode RAID controller supporting SAS4 and NVMe hardware RAID
- Dual M.2 boot drives with hardware RAID, up to two 960GB SATA or NVMe
- Support for up to 8 GPUs, including up to 3 NVIDIA RTX PRO 4500 Blackwell Server Edition
- Modular LOM/OCP 3.0 slot supporting Cisco UCS VIC 15000 Series adapters and third-party NICs
- Out-of-band management via Cisco IMC with Redfish, IPMI 2.0, SNMP v2/v3, Syslog, SMTP, KMIP, cKVM, CLI and XML API
- SDK and DevOps integrations for Python, PowerShell, Ansible, Puppet and Chef
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2RU rack server
- Processors: 1 or 2 x 5th Gen or 4th Gen AMD EPYC (up to 160 cores per socket)
- Memory: 24 DDR5 DIMM slots, 16 to 256 GB DIMMs, up to 6 TB
- Memory speed: up to 6000 MT/s with 5th Gen EPYC, up to 4800 MT/s with 4th Gen EPYC
- Internal storage: up to 28 x 2.5-inch SAS, SATA or NVMe drive bays (up to 8 NVMe direct attach)
- Boot storage: dual M.2 SATA/NVMe with hardware RAID
- PCIe expansion: up to 8 x PCIe Gen 4.0 or up to 4 x PCIe Gen 5.0 slots
- Dedicated slots: 1 RAID controller slot (24-Gbps), 1 mLOM/OCP 3.0 slot (PCIe Gen5 x16)
- GPU support: up to 3 x NVIDIA RTX PRO 4500 Blackwell Server Edition
- Power supplies: hot-pluggable redundant, Platinum 1050W DC and 1600W AC, Titanium 1200W AC and 2300W AC
- Management: Cisco Intersight, Cisco IMC, Cisco UCS Manager
- Rack options: Cisco ball-bearing rail kit with optional reversible cable management arm
- System requirement: IMC Release 4.3(5)
- Height: 3.42 in (86.4 mm)
- Width: 16.9 in (429.0 mm)
- Depth: 30 in (740.3 mm) server only, 31.5 in (787.4 mm) with slide rail
- Weight: 35.7 lb (16.2 kg) empty chassis, up to 61.7 lb (28 kg) fully configured with rail kit
- Operating temperature: 10 to 35 C, extended 5 to 40 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 5 to 85% long term, 5 to 93% short term
FAQs
Q: Does this server include a CPU and memory?
A: No. UCSC-C245-M8SX is the base server node with no CPU or RAM, so processors, DDR5 memory and drives are selected separately.
Q: Which power supplies does the C245 M8 use?
A: It uses hot-pluggable redundant power supplies. Platinum 1050W DC and 1600W AC options and Titanium 1200W AC and 2300W AC options are available.
Q: How is this server licensed and managed?
A: It can be managed standalone through Cisco IMC, or through Cisco Intersight or UCS Manager. The specific licence tier is selected when configuring the UCS M8 Major Line Bundle.
Q: What network adapters and storage controllers does it work with?
A: The mLOM/OCP 3.0 slot accepts Cisco UCS VIC 15000 Series adapters and OCP 3.0 third-party NICs. Storage options include Cisco 24-Gbps tri-mode RAID and passthrough HBA controllers and the Cisco 12-Gbps 9500-8e external SAS HBA.
Q: Can it run GPUs?
A: Yes. It supports up to 3 NVIDIA RTX PRO 4500 Blackwell Server Edition GPUs, using the available PCIe Gen 5.0 slots.
Q: What software release does it need?
A: It requires Cisco IMC release 4.3(5) or later.
