Cisco

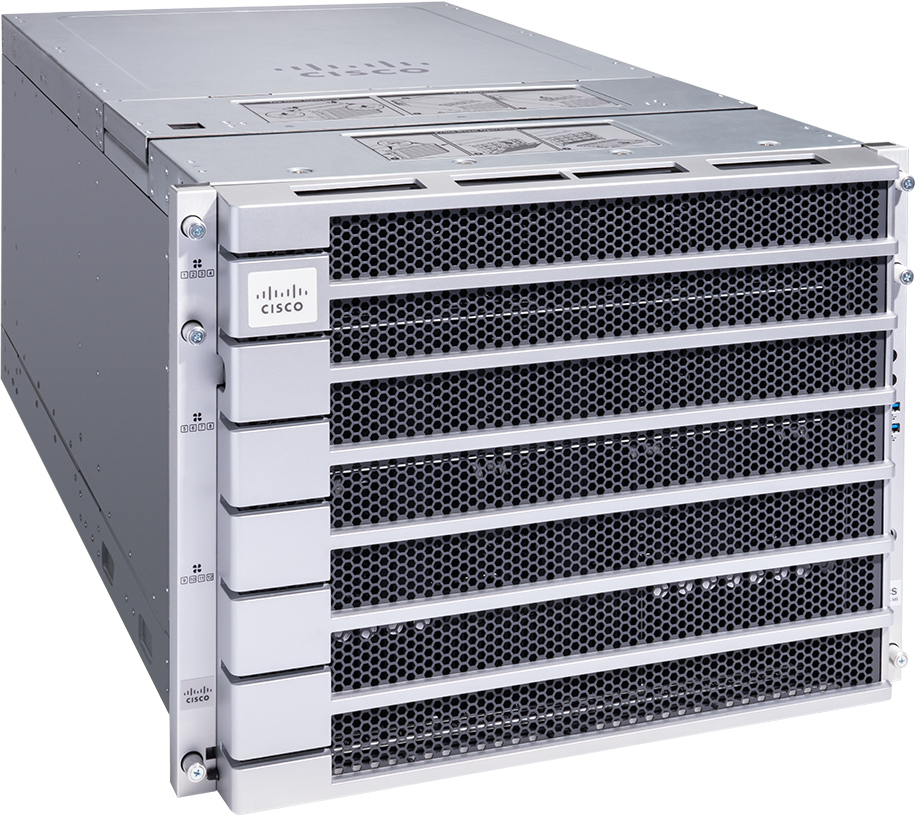

Cisco UCSC-885A-M8-H20 | UCS C885A M8 8RU AI Server, H200 GPU, 1.5TB, 2x CX-7

SKU:UCSC-885A-M8-H20

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The UCS C885A M8 is a dense-GPU rack server in an 8RU chassis, built for AI model training, generative AI and HPC in enterprise data centres, including Cisco AI POD and NVIDIA Enterprise Reference Architecture deployments. This configuration uses an NVIDIA HGX H200 SXM 8-GPU baseboard.

This UCS C885A M8 variant pairs two AMD EPYC 9535 CPUs at 2.4 GHz (up to 4.3 GHz boost) with 1.5TB of system memory. North-south networking comes from two NVIDIA ConnectX-7 2x200GbE NICs on PCIe Gen5 x16 FHHL cards, and no east-west NICs are fitted. The platform supports up to 16 x 2.5-inch U.2 NVMe SSDs for local data. Power is delivered by six 3000W @54V AC supplies in a 4+2 redundant arrangement, 80 PLUS Titanium rated, with a maximum system draw of approximately 12.5 kW from a 200-240 VAC supply.

The platform supports NVIDIA ConnectX-7 (2x200G) and BlueField-3 B3220 and B3240 NICs, and is validated in Cisco AI POD designs with Cisco Nexus 9364E-SG2 switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- NVIDIA HGX H200 GPUs for demanding AI model training and inference
- Dense 8-GPU design in an 8RU chassis
- Hot-swappable redundant power supplies for high availability
- Dual AMD EPYC 9535 CPUs to feed the GPU baseboard
- Two 2x200GbE ConnectX-7 NICs for high-bandwidth north-south connectivity
- Supported in Cisco AI POD reference architectures with Nexus 9364E-SG2 switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 8RU rack server
- GPU: NVIDIA HGX H200 SXM (8-GPU baseboard)
- CPU: 2 x AMD EPYC 9535, 2.4 GHz (max boost 4.3 GHz)
- Memory: 1.5TB
- North-south NICs: 2 x NVIDIA ConnectX-7 2x200GbE (PCIe Gen5 x16 FHHL)
- East-west NICs: None
- Storage: up to 16 x 2.5-inch U.2 NVMe SSDs
- Power supplies: six 3000W @54V AC, 4+2 redundant, 80 PLUS Titanium
- Maximum system power: approximately 12.5 kW
- System PSU input: 200-240 VAC, 50-60 Hz, 16A per PSU (six max)
- CPU tray PSU input: 200-240 VAC, 50-60 Hz, 14.5A or 16A per PSU (two max)
- Height: 353 mm (13.9 in)
- Width: 447 mm (17.6 in)
- Depth: 800 mm (31.5 in)
- Weight (approximate): 120 kg (265 lb)
- Operating temperature: 5 C to 35 C (45 F to 95 F)
- Front panel: power button with LED, UID button with LED, 2 x USB 2.0 ports, thermal sensor

FAQs

Q: What power supply does this server need?
A: It uses six 3000W @54V AC power supplies in a 4+2 redundant arrangement, rated 80 PLUS Titanium. Input is 200-240 VAC only, and maximum system power is approximately 12.5 kW.

Q: Does this configuration include east-west NICs?
A: No. This SKU has no east-west NICs fitted. Its networking is two NVIDIA ConnectX-7 2x200GbE north-south NICs.

Q: Which NICs does the UCS C885A M8 platform support?
A: The platform supports NVIDIA ConnectX-7 (2x200G) and BlueField-3 B3220 and B3240 NICs, plus Intel X710-T2L and OCP X710 NICs across the family.

Q: Which switches is it validated with?
A: It is validated in Cisco AI POD designs with Cisco Nexus 9364E-SG2 switches.

Q: How does this SKU differ from other UCS C885A M8 configurations?
A: This SKU combines H200 GPUs, no east-west NICs, two ConnectX-7 2x200GbE NICs and 1.5TB of memory. Other SKUs in the family vary the GPU, NIC and memory configuration.
