Cisco

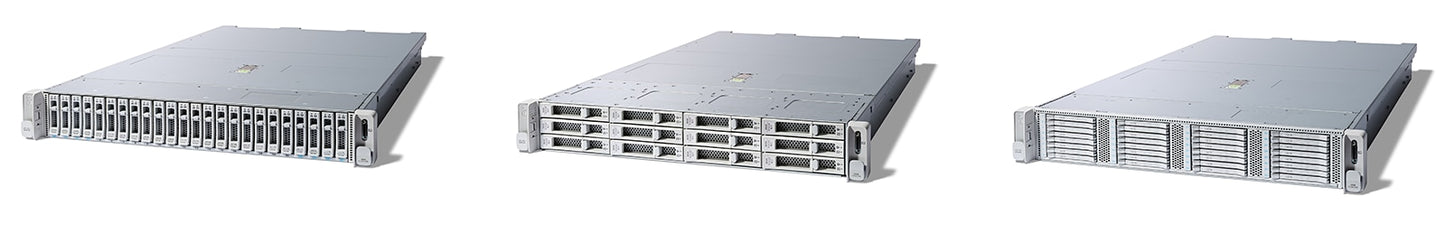

Cisco UCSC-240M8E3-32X4 | UCS C240 M8 2U Rack Server, 32x E3.S NVMe, x4, Riser 3

SKU:UCSC-240M8E3-32X4

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The UCS C240 M8 EDSFF E3.S is a 2RU, two-socket Cisco rack server built for NVMe-dense workloads that need maximum per-drive PCIe Gen5 bandwidth. This configuration suits high-performance storage and compute deployments that run standalone or inside a Cisco UCS domain managed through Intersight.

This SKU is the Performance Optimized cabling option with 32 front E3.S 1T NVMe bays, each connected at PCIe Gen5 x4, and rear Riser 3 only. It supports up to two Intel Xeon 6 Scalable processors with up to 86 cores each, and this cabling option requires both CPUs to be fitted. Memory is 32 DDR5-6400 DIMM slots, 16 per CPU, scaling to 8TB with 256GB DIMMs. Rear connectivity includes a 1 x mLOM/OCP 3.0 slot, a 1GbE dedicated management port, serial, VGA and two USB 3.0 ports. Up to two hot-swap power supplies in 1+1 redundancy can be fitted, in 1050W DC, 1200W AC, 1600W AC or 2300W AC ratings.

Riser 1 and Riser 2 are not supported with this option, and the rear storage riser 3D is not supported. The server works with Cisco UCS 6400, 6500 and 6600 Series Fabric Interconnects and the UCSX-S9108-100G, with CIMC 4.3(6) or later. A Cisco Intersight licence is required for each server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Performance Optimized x4-lane cabling gives each of the 32 E3.S NVMe drives a PCIe Gen5 x4 connection
- Intel Xeon 6 processors with DDR5-6400 memory
- Hot-swappable E3.S NVMe drives, power supplies and fans
- Cisco Intersight SaaS management for lifecycle and monitoring
- Runs standalone or connected to UCS Fabric Interconnects in IMM or UCSM mode
- mLOM/OCP 3.0 slot supports 10GbE to 200GbE connectivity
- Boot Optimized RAID Controller with up to 2 SATA M.2 SSDs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis: 2RU rack server
- Front drive bays: 32 x E3.S 1T direct-attach NVMe, PCIe Gen5 x4 per drive
- Drive cabling type: Performance Optimized, 2-CPU configurations only
- CPU: Up to 2 x Intel Xeon 6 Scalable processors, up to 86 cores each, up to 350 W
- CPU interconnect: Up to 4 UPI links at 24 GT/s
- Memory: 32 x DDR5-6400 DIMM slots (16 per CPU), 8 channels per CPU
- Maximum memory: 8TB with 32 x 256GB DIMMs
- Rear risers (this SKU): Riser 3 only (3A or 3C)
- Boot storage: Boot Optimized RAID Controller with up to 2 SATA M.2 SSDs, 8GB FlexMMC
- Network slot: 1 x mLOM/OCP 3.0
- Management port: 1 x 1000BASE-T RJ-45
- Rear ports: 1 x RS-232 serial (RJ45), 1 x DB15 VGA, 2 x USB 3.0
- Front interface: 1 x KVM connector (2 x USB 2.0, 1 x VGA, 1 x serial)
- Video: Matrox G200e via CIMC, up to 1920 x 1200 16bpp at 60Hz
- Power supplies: Up to 2 hot-swap (1+1), 1050W DC, 1200W AC, 1600W AC or 2300W AC
- Cooling: Six hot-swap fans, front-to-rear airflow
- Management: Cisco IMC 4.3(6) or later, Cisco Intersight
- Firmware standards: UEFI 2.9, ACPI 6.5, SMBIOS 3.7
- Dimensions (H x W x D): 8.7 cm x 42.9 cm x 76.2 cm
- Weight (fully loaded, no rail kit): 26.47 kg
- Operating temperature: 5 to 35 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 8% to 90% non-condensing
- Operating altitude: up to 3050 m

FAQs

Q: Does this server need a licence?
A: Yes. Every server needs a Cisco Intersight licence, either Infrastructure Services Essentials or Advantage, and a management mode (IMM, UCSM or standalone) must be selected.

Q: How many CPUs does this configuration require?
A: This Performance Optimized x4 cabling option is supported with 2-CPU configurations only, using Intel Xeon 6 Scalable processors.

Q: Which risers can be used with this SKU?
A: Only rear Riser 3 (3A or 3C) is supported. Riser 1, Riser 2 and the rear storage riser 3D are not supported with this option.

Q: Which power supplies does it take?
A: Up to two identical hot-swap PSUs in 1+1 redundancy: 1050W DC, 1200W AC, 1600W AC or 2300W AC. Use Cisco's UCS power calculator to size the supply for your configuration.

Q: Which Fabric Interconnects is it compatible with?
A: It works with Cisco UCS 6400, 6500 and 6600 Series Fabric Interconnects and the UCSX-S9108-100G, with CIMC 4.3(6) or later.
