Cisco

Cisco UCSC-240M8E3-32X2 | UCS C240 M8 2U Server, 32x E3.S NVMe, Riser 1/2/3

SKU:UCSC-240M8E3-32X2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

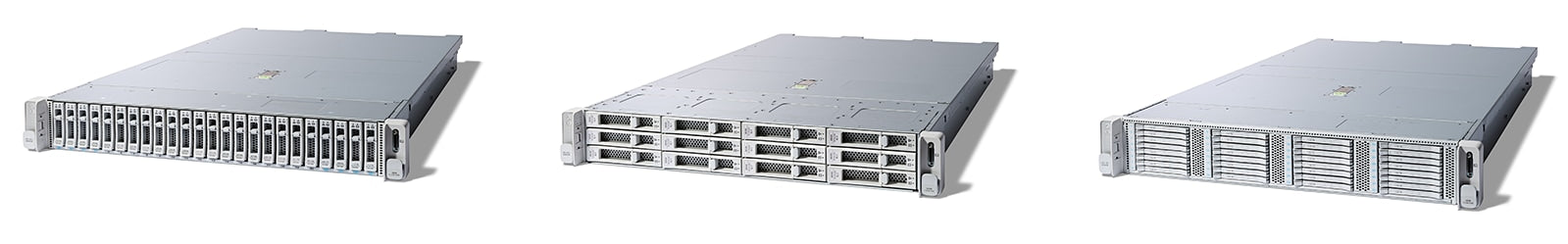

The UCS C240 M8 is a 2RU Cisco rack server for high-capacity NVMe storage and I/O-intensive workloads such as software-defined storage, AI and analytics, databases and virtualisation. This E3.S configuration is the Capacity and I/O Optimized option, built on the UCSC-C240-M8E3S chassis with a 32-drive backplane.

This cabling option connects all 32 front E3.S 1T NVMe bays at PCIe Gen5 x2 lanes per drive while leaving Risers 1, 2 and 3 available for PCIe cards. The platform takes one or two Intel Xeon 6 Scalable processors with up to 86 cores each and up to 350 W TDP, plus 32 DDR5 DIMM slots for up to 8 TB of memory. It has a single mLOM/OCP 3.0 slot and a dedicated 1GbE management port. Power is supplied by up to two hot-swap PSUs in 1050W DC, 1200W AC, 1600W AC or 2300W AC ratings, with six hot-swappable fans providing front-to-rear cooling.

It requires the UCSC-C240-M8E3S base server with Intel Xeon 6 CPUs, and Riser 2 and Riser 3 need two CPUs installed. A Cisco Intersight licence is required for every server, and the management mode (IMM, UMM or standalone ISM) is selected at order.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Capacity and I/O optimised cabling keeps all three riser positions usable alongside 32 front NVMe drives
- PCIe Gen5 throughout, including the risers and E3.S NVMe drives
- GPU support, up to three double-wide or eight single-wide cards
- Standalone operation or managed via UCS Fabric Interconnects (IMM/UCSM) or Cisco Intersight
- Compatible with UCS 6400, 6500 and 6600 Series and UCSX-S9108-100G fabric interconnects
- TPM 2.0 and chassis intrusion switch options for security
- Tool-less rail kit and optional reversible cable management arm

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU rack server
- Height: 3.42 in. (8.7 cm)
- Width (including slam latches): 16.9 in. (42.9 cm)
- Depth: 30 in. (76.2 cm)
- Drive bays: Up to 32 front-facing E3.S 1T direct-attach NVMe SSDs, hot-swap
- Drive cabling: 32 drives, PCIe Gen5 x2 per drive, Riser 1, 2 and 3 available, Capacity & I/O Optimized
- Processors: One or two Intel Xeon 6 Scalable processors, up to 86 cores, up to 350 W TDP
- Cache: Up to 336 MB
- UPI: Up to 4 links at 24GT/s
- Memory: 32 DDR5 RDIMM slots (16 per CPU), up to 6400 MT/s at 1DPC and 5200 MT/s at 2DPC
- Maximum memory: 8TB (32x 256GB)
- Rear storage risers: Riser 1D and 3D (2x E3.S each)
- Expansion risers: 1A, 1C, 2A, 2C, 3A and 3C, all PCIe Gen5
- RAID: No RAID controller support for NVMe drives; optional Boot Optimized M.2 RAID controller for up to 2 SATA M.2 SSDs
- Network: One mLOM/OCP 3.0 slot and 1x 1GBase-T RJ-45 management port
- Rear interfaces: 1x RS-232 serial (RJ45), 1x DB15 VGA, 2x USB 3.0
- Front interfaces: 1x KVM connector (2x USB 2.0, VGA, serial)
- Power supplies: Up to 2 hot-swap, 1050W DC, 1200W AC, 1600W AC or 2300W AC
- Cooling: Six hot-swappable fans, front-to-rear airflow
- Management: Cisco IMC 4.3(6) or later, Cisco Intersight
- Operating temperature: 5 to 35 C
- Operating humidity: 8% to 90% non-condensing
- Weight: 26.47 kg (58.36 lb) in the reference configuration

FAQs

Q: Does this server need a licence?
A: A Cisco Intersight licence (Essentials or Advantage tier) is required for every server. The management mode is chosen at order: IMM-managed, UMM-managed or standalone ISM-managed.

Q: Which base server does this cabling option work with?
A: It is for the UCSC-C240-M8E3S E3.S chassis with the 32-drive backplane and Intel Xeon 6 processors. It is not field upgradable once configured.

Q: Can I use all three PCIe risers with this option?
A: Yes, Risers 1, 2 and 3 are all available. Riser 2 and Riser 3 require two CPUs to be installed.

Q: How does this differ from the 16-drive x4 option?
A: This option connects 32 E3.S drives at PCIe Gen5 x2 per drive, while UCSC-240M8E3-16X4 uses 16 drives at x4. The UCSC-P-N3140H card is supported only with the 16X4 option.

Q: What power supplies does it use?
A: It takes up to two hot-swap PSUs in 1050W DC, 1200W AC, 1600W AC or 2300W AC ratings. One is required and a second provides 1+1 redundancy.

Q: Does it support hardware RAID for the NVMe drives?
A: No RAID controller is supported for the NVMe drives. An optional Boot Optimized M.2 RAID controller supports up to two SATA M.2 SSDs.
