Cisco

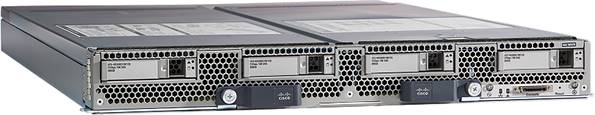

Cisco UCSB-B480-M5-BR | UCS B480 M5 4-Socket Blade Server, Barebone

SKU:UCSB-B480-M5-BR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The UCS B480 M5 is a full-width, four-socket blade server from the Cisco UCS B-Series M5 generation. It is built for memory-intensive, mission-critical enterprise applications and demanding virtualisation and database workloads such as Oracle, SAP, SQL, VDI and Microsoft Azure Stack. Up to four blades mount in a single Cisco UCS 5108 chassis.

This is the Barebone (-BR) SKU, the base blade supplied without CPUs, memory, drive bays, HDDs or mezzanine adapters. The platform supports four Intel Xeon Scalable or 2nd Generation Intel Xeon Scalable processors with up to 28 cores per socket on the Intel C621 series chipset. It provides 48 DDR4 DIMM slots running up to 2933 MHz, for up to 12 TB of DDR4, or up to 18 TB when paired with Intel Optane DC Persistent Memory. Five PCIe 3.0 mezzanine slots (one mLOM, two rear and two front) support Cisco VIC adapters, storage accelerators and up to four NVIDIA GPUs, with up to 160 Gigabit Ethernet of I/O throughput.

It requires Cisco UCS Manager to operate and works with the Cisco VIC 1440 mLOM and VIC 1480, 1340 and 1380 adapters. Processors, DIMMs, FlexStorage controllers, drives and GPUs are selected to suit the workload. Power and cooling are provided by the chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-socket, full-width form factor for enterprise and mission-critical applications
- Support for 256 GB DDR4 DIMMs and Intel Optane DC Persistent Memory modules
- Cisco FlexStorage subsystem with SAS RAID or NVMe passthrough options
- Five mezzanine slots with support for up to four NVIDIA GPUs
- Cisco UCS VIC mLOM and mezzanine adapters for up to 160 GbE of I/O
- Internal Secure Digital (SD) and M.2 boot options
- Stateless computing with Cisco UCS Manager and SingleConnect technology
- Optional Trusted Platform Module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Full-width blade server for the Cisco UCS 5100 Series chassis
- Blades per chassis: Up to 4 UCS B480 M5 blades
- Processors: Four Intel Xeon Scalable or 2nd Generation Intel Xeon Scalable, up to 28 cores per socket
- Chipset: Intel C621 series
- Memory slots: 48 DDR4 DIMM slots, 16 to 256 GB DIMMs up to 2933 MHz
- Maximum memory: Up to 12 TB DDR4, or up to 18 TB with Intel Optane DC Persistent Memory
- Mezzanine slots: 5 PCIe 3.0 (1 mLOM, 2 rear mezzanine, 2 front mezzanine)
- Storage: Up to 4 front-accessible 2.5-inch SAS/SATA/NVMe drives with optional Cisco FlexStorage controller
- Internal boot: Dual FlexFlash SD cards or dual M.2 SATA SSDs, internal USB 3.0 port
- GPU support: Up to 4 NVIDIA GPUs
- I/O throughput: Up to 160 Gigabit Ethernet
- Video: Matrox G200e via CIMC, up to 1920 x 1200 at 60 Hz
- Management: Cisco UCS Manager, Intersight, UCS Central, UCS Director
- Minimum Cisco IMC: 3.1(2)
- Height: 1.95 in. (50 mm)
- Width: 16.5 in. (419 mm)
- Depth: 24.4 in. (620 mm)
- Weight (base server): 17.78 lb (8.1 kg)
- Configuration: Barebone, no CPU, memory, drive bays, HDD or mezzanine adapters

FAQs

Q: Does the UCSB-B480-M5-BR include a licence?
A: No licence is bundled with the hardware. The blade requires Cisco UCS Manager to operate as part of a UCS system. Management through Cisco Intersight, UCS Central and UCS Director is licensed separately.

Q: What does Barebone mean for this blade?
A: The -BR SKU is the base blade with no CPUs, memory, drive bays, HDDs or mezzanine adapters. These components are selected separately to suit the workload.

Q: Which chassis does the B480 M5 fit?
A: It mounts in the Cisco UCS 5108 chassis, with up to four B480 M5 blades per chassis. Power and fans are provided by the chassis.

Q: Which software versions are required?
A: UCS Manager 3.2(2) or later is required for Xeon Scalable processors, and 4.0(4b) or later for 2nd Generation Xeon Scalable processors. Cisco IMC 3.1(2) or above is needed.

Q: Which network adapters are supported?
A: The VIC 1440 mLOM and the VIC 1480, 1340 and 1380 adapters, along with Port Expander options, are supported. VIC 1400 series adapters work with 6200, 6300, 6400 and 6536 Series Fabric Interconnects.

Q: How much memory and storage can it hold?
A: It has 48 DDR4 DIMM slots for up to 12 TB of memory, or 18 TB with Intel Optane DC Persistent Memory. With an optional FlexStorage controller it takes up to four front-accessible 2.5-inch SAS, SATA or NVMe drives.
