Cisco UCSB-B200-M6 | UCS B200 M6 Blade Server, 2x Xeon Gen3, Base Blade
SKU:UCSB-B200-M6
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

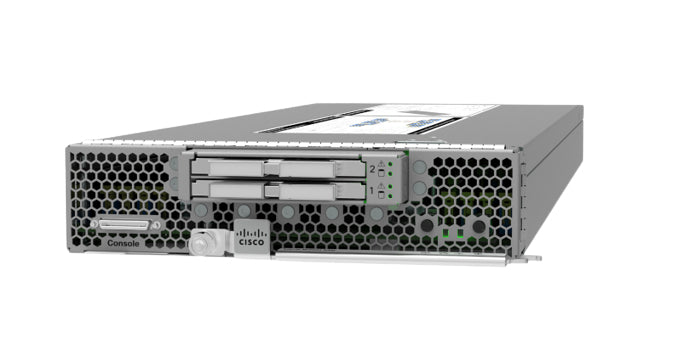

The UCS B200 M6 is a half-width blade server for the Cisco UCS 5108 chassis, built on 3rd Gen Intel Xeon Scalable processors. It suits data centre, cloud and remote site deployments, including VDI, web infrastructure, distributed databases, converged infrastructure and enterprise applications such as Oracle and SAP HANA.
This SKU is the base blade, supplied without CPU, memory, drives or mezzanine cards, so it can be configured to the workload. It supports one or two Xeon Scalable processors with up to 40 cores per CPU, and 32 DDR4 DIMM slots running at up to 3200 MHz. Sixteen of those slots are ready for Intel Optane persistent memory. Connectivity comes from an mLOM slot for the Cisco UCS VIC 1440 and a rear mezzanine slot for a VIC 1480 or port expander, giving up to 80 Gbps of I/O throughput. Local storage uses two hot-pluggable 7 mm SSD or NVMe drives, or up to four M.2 drives, through a front FlexStorage controller.
Up to eight blades fit in a 6RU UCS 5108 chassis. Management is through Cisco UCS Manager Release 4.2(1) or later, or Cisco Intersight. Compatible fabric extenders are the UCS 2204, 2208, 2304 and 2408, and compatible fabric interconnects include the 6332-16UP, 6332, 6324 and 6454.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Half-width blade, with up to eight per 6RU UCS 5108 chassis for high density
- Dual 3rd Gen Intel Xeon Scalable processors with up to 40 cores per CPU
- 32 DDR4 DIMM slots up to 3200 MHz, with 16 slots Optane PMem-ready
- mLOM slot for the Cisco UCS VIC 1440 with 2 x 40GbE FCoE capability
- Optional rear mezzanine VIC for up to 80 Gbps of I/O to the server
- Optional front FlexStorage RAID, pass-through or M.2 boot controllers
- Stateless deployment through Cisco UCS Manager and Intersight with SingleConnect technology
- Configurable to local storage needs, so unneeded components are not purchased, powered or cooled
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Half-width blade for UCS 5108 chassis
- Blades per chassis: Up to 8 per 6RU UCS 5108
- Processors: 1 or 2 3rd Gen Intel Xeon Scalable, up to 40 cores per CPU
- Memory slots: 32 DDR4 DIMM slots, up to 3200 MHz
- Persistent memory: 16 DIMM slots ready for Intel Optane PMem, up to 12 TB
- mLOM: 1 slot for Cisco UCS VIC 1440 (2 x 40GbE, FCoE)
- Rear mezzanine: 1 slot for Cisco UCS VIC 1480 or port expander
- Front mezzanine: 1 slot for FlexStorage SAS RAID, pass-through or M.2 boot controller
- Internal storage: 2 hot-pluggable 7 mm SSD or NVMe drives, or up to 4 M.2 drives
- SSD capacity: Up to 7.6 TB per drive
- NVMe capacity: Up to 7.7 TB per drive
- M.2 capacity: Up to 960 GB per drive
- I/O throughput: Up to 80 Gbps
- Management: Cisco UCS Manager 4.2(1) or later, Cisco Intersight, UCS Central, UCS Director
- Operating temperature: 10 to 35 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 5% to 93% non-condensing
- Operating altitude: 0 to 3000 m
FAQs
Q: Does this blade need a licence?
A: No licence is required for the base blade itself. It is managed through Cisco UCS Manager 4.2(1) or later, or Cisco Intersight, and any licensing for those management tools is separate.
Q: Which chassis does the UCS B200 M6 fit?
A: It is a half-width blade for the Cisco UCS 5108 Blade Server Chassis, which holds up to eight of these blades in 6RU. It connects through UCS 2204, 2208, 2304 or 2408 fabric extenders.
Q: Which fabric interconnects does it work with?
A: It works with the Cisco UCS 6332-16UP, 6332, 6324 and 6454 fabric interconnects, running UCS Manager Release 4.2(1) or later.
Q: How does this SKU differ from the upgrade version?
A: UCSB-B200-M6 is the base blade supplied without CPU, memory, drives or mezzanine cards. UCSB-B200-M6-U is the separate upgrade SKU.
Q: What network adapters can this blade use?
A: The mLOM slot takes the Cisco UCS VIC 1440, and the rear mezzanine slot takes a Cisco UCS VIC 1480 or a port expander card, for up to 80 Gbps of I/O.
Q: What storage options are available?
A: Up to two hot-pluggable 7 mm SSD or NVMe drives, or up to four M.2 drives. Drives require a FlexStorage RAID or pass-through controller in the front mezzanine slot.
