Cisco

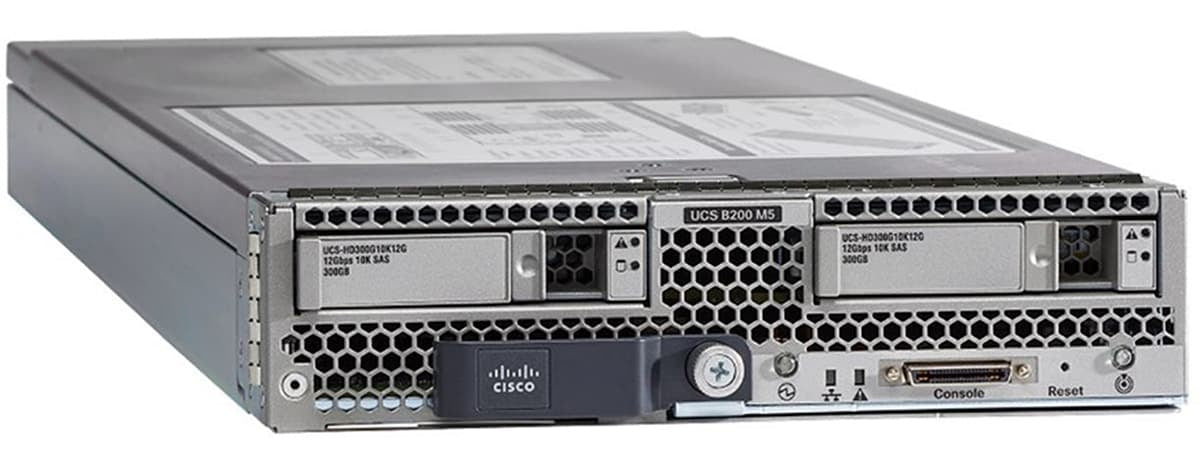

Cisco UCSB-B200-M5 | UCS B200 M5 Half-Width Blade Server, No CPU/RAM

SKU:UCSB-B200-M5

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Cisco UCS B200 M5 is a density-optimised, half-width, two-socket blade server in the UCS B-Series range. It suits virtualisation, distributed databases, converged infrastructure and enterprise applications such as Oracle and SAP HANA, in data centres and at remote sites.

This SKU is the base blade without CPU, memory, drives or mezzanine adapters, so you specify the processors, DIMMs and adapters to suit the workload. It takes one or two Intel Xeon Scalable or 2nd Gen Intel Xeon Scalable processors with up to 28 cores per CPU, and has 24 DDR4 DIMM slots for up to 3 TB. Twelve slots are ready for Intel Optane DC Persistent Memory. Storage is two hot-pluggable front 2.5-inch SAS, SATA or NVMe bays, with a RAID or pass-through controller fitted in the front mezzanine slot. Network I/O comes from one mLOM slot and one rear mezzanine slot, for up to 80 Gigabit Ethernet.

The blade installs in the Cisco UCS 5108 chassis, with up to eight half-width blades per 6RU chassis. It connects through UCS 2408, 2208XP, 2204XP or 2304V2 Fabric Extenders to UCS Fabric Interconnects and is managed through Cisco UCS Manager and Cisco Intersight.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless physical and virtual workload deployment through Cisco UCS Manager and Cisco Intersight
- Cisco SingleConnect simplified server access
- Support for Intel Optane DC Persistent Memory for large memory footprints
- Intel AES-NI enabled in BIOS
- Flexible front storage mezzanine for RAID, pass-through or GPU
- Up to 2 GPUs for graphics and compute acceleration
- Flexible boot options with SD card or M.2 SATA
- Half-width design allows up to 8 blades in a 6RU chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Half-width blade server, up to 8 per 6RU UCS 5108 chassis
- Processors: 1 or 2 Intel Xeon Scalable or 2nd Gen Intel Xeon Scalable, up to 28 cores per CPU
- Chipset: Intel C621 series (Lewisburg)
- Memory slots: 24 x DDR4 DIMM slots
- Memory capacity: Up to 3072 GB DDR4 (24 x 128 GB DIMMs)
- Memory speed: Up to 2933 MHz with 16, 32, 64 and 128 GB DIMMs
- Memory types: Advanced ECC, RDIMM, LR-DIMM, PMem
- Persistent memory: 12 slots for Intel Optane DC Persistent Memory, 128, 256 and 512 GB, up to 6 TB
- Drive bays: 2 x hot-pluggable front 2.5-inch SAS, SATA or NVMe
- Storage controller: RAID or pass-through controller in the front mezzanine slot (Cisco FlexStorage)
- Boot storage: Optional SD card up to 128 GB or M.2 SATA drives
- Expansion: 1 x mLOM slot and 1 x rear mezzanine slot
- GPUs: Up to 2 optional GPUs
- Internal USB: One 16 GB internal flash USB drive supported
- Network I/O: Up to 80 Gigabit Ethernet
- Supported Fabric Extenders: UCS 2408, 2208XP, 2204XP, 2304V2
- Dimensions: 50 mm H x 203 mm W x 620 mm D
- Weight: 4.31 kg base, 7.25 kg fully configured
- Management: Cisco UCS Manager and Cisco Intersight

FAQs

Q: Does this blade need a licence?
A: No licence is required for the blade hardware itself. It is managed through Cisco UCS Manager, which is included with UCS Fabric Interconnects, or Cisco Intersight, which has its own subscription tiers.

Q: How is the blade powered?
A: It is powered from the UCS 5108 chassis power supplies and has no standalone power supply. Power draw depends on the CPU, memory and adapter configuration, which you can estimate with the Cisco UCS Power Calculator.

Q: Which chassis and fabric extenders does it work with?
A: It installs in the Cisco UCS 5108 chassis, up to eight half-width blades per chassis. It connects through UCS 2408, 2208XP, 2204XP or 2304V2 Fabric Extenders to UCS Fabric Interconnects.

Q: What do I need to add to make this blade operational?
A: This base SKU needs at least one Intel Xeon Scalable processor, DDR4 memory and a VIC adapter in the mLOM slot. A RAID or pass-through controller is also needed if you plan to use the front drive bays.

Q: What network adapters does it support?
A: It has one mLOM slot for VIC 1340 or 1440 adapters and one rear mezzanine slot for additional adapters, giving up to 80 Gigabit Ethernet of network I/O.
