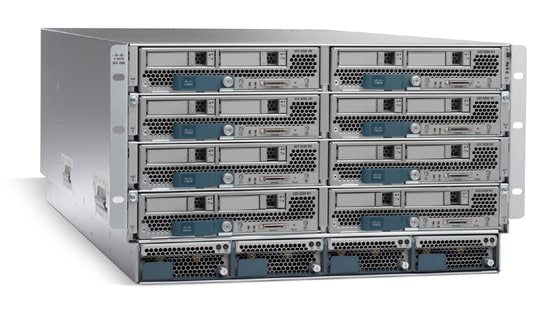

Cisco UCSB-5108-AC2 | UCS 5108 8-Slot Blade Chassis, AC2, 0 PSU, 8 Fans, 0 FEX
SKU:UCSB-5108-AC2
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The UCS 5108 is a 6RU, 19-inch rack-mount blade chassis in the Cisco UCS 5100 Series. It holds up to eight half-width or four full-width Cisco UCS B-Series blade servers, and suits data-centre virtualisation, private cloud and high-density enterprise workloads. It also forms the base of UCS Mini deployments for branch and edge sites.
This UCSB-5108-AC2 is the AC-powered chassis with 8 fan modules, 0 power supplies and 0 fabric extenders. It offers 8 blade slots, 2 FEX or I/O module slots, 4 power supply bays and 8 fan bays, with 1.2 Tb of aggregate backplane throughput. Each optional hot-swap AC power supply delivers 2500 W at 200 to 240 VAC, with N+1 redundancy available. The power supplies and fabric extenders are ordered separately.
The two I/O bays accept Cisco UCS 2200 and 2300 Series Fabric Extenders such as the UCS 2208XP, or the UCS 6324 Fabric Interconnect for UCS Mini. The chassis is managed through Cisco UCS Manager and needs no licence of its own.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive midplane with up to 2 x 40 GbE per blade slot in high-availability mode
- 1.2 Tb of Ethernet throughput across 8 blades for future I/O requirements
- Supports half-width and full-width blades in any combination that fits
- Hot-swappable power supplies and fans, accessible from the front of the chassis
- Chassis auto-discovery and configuration through Cisco UCS Manager and service profiles
- Supports UCS 2200 and 2300 Series Fabric Extenders or the UCS 6324 Fabric Interconnect
- UCS Mini capable with built-in UCS 6324 Fabric Interconnects
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 6RU, 19-inch rack-mountable
- Blade server slots: 8 half-width or 4 full-width
- FEX slots: 2 (0 FEX included)
- Power supply bays: 4 (0 PSU included)
- Fan module bays: 8 (8 fans included)
- Backplane throughput: 1.2 Tb aggregate
- Dimensions (H x W x D): 26.7 x 44.5 x 81.2 cm (10.5 x 17.5 x 32 in)
- Weight (empty chassis): 40.83 kg (90 lbs)
- Weight (fan module): 0.82 kg (1.8 lbs)
- Weight (FEX): 1.13 kg (2.5 lbs)
- Weight (fully populated): approx. 115.66 kg (255 lbs), depending on models and options
- Power supply output per PSU: 2500 W at 200 to 240 VAC
- AC input voltage: 200 to 240 VAC nominal (180 to 264 VAC range)
- AC input frequency: 50 to 60 Hz nominal (47 to 63 Hz range)
- Maximum AC input current: 15.5 A at 200 VAC
- Maximum input VA: 2790 VA at 200 VAC
- Input connector: IEC320 C20
- Power redundancy: N+1 with optional power supplies
- Maximum heat output: 8525 BTU
- Operating temperature (0 to 3,000 m): 10 to 35 C
- Non-operating temperature: -40 to 65 C
FAQs
Q: Does this chassis need a licence?
A: No licence is required for the chassis itself. It is managed through Cisco UCS Manager, and UCS Manager 2.2 or later is needed for the UCS Mini configuration with the UCS 6324.
Q: What power does the UCSB-5108-AC2 need?
A: It has 4 power supply bays and takes hot-swap AC power supplies rated at 2500 W each at 200 to 240 VAC. Each PSU draws up to 15.5 A at 200 VAC through an IEC320 C20 connector, and N+1 redundancy is available with optional supplies.
Q: Which blade servers and I/O modules does it work with?
A: It supports Cisco UCS B-Series blade servers in half-width and full-width form factors. The two I/O bays take UCS 2200 and 2300 Series Fabric Extenders such as the UCS 2208XP, or the UCS 6324 Fabric Interconnect for UCS Mini.
Q: How does this SKU differ from other UCS 5108 variants?
A: The AC2 designation is the AC-input version with 8 fans, 0 PSU and 0 FEX. The UCS 6324 Fabric Interconnect is supported only in this AC2 chassis and the DC2 variant.
