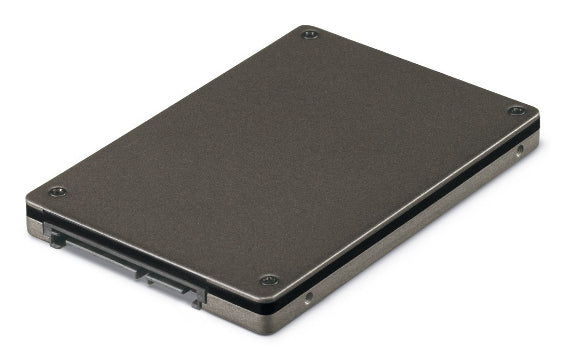

Cisco UCSAI-NVES3T8M1VE | 3.84TB E1.S NVMe Gen5 SSD, FIPS SED, 15mm

UCSAI-NVES3T8M1VE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 3.84TB PCIe Gen5 x4 NVMe SSD in the E1.S 15mm form factor is a data-cache drive for the Cisco UCS C880A M8 AI rack server. It is the FIPS-capable self-encrypting variant of the Micron 9550 PRO, built for AI and machine learning workloads that need encrypted, high-throughput local storage on an NVIDIA GPU, 6th Gen Intel Xeon platform.

The drive delivers up to 14,000 MB/s sequential read and 10,000 MB/s sequential write, with up to 3,300 KIOPS random 4KB read and 720 KIOPS random 4KB write. It is a read-intensive 1 DWPD model with 7,008 TB of endurance on 4K random writes and 29,400 TB on 128K sequential writes. Typical queue-depth-1 latency is 60 us for reads and 10 us for writes. Security covers TCG Opal 2.02 self-encryption, FIPS 140-3 Level 2 certifiable operation and digitally signed firmware. This SKU uses a 512-byte sector size.

The UCS C880A M8 accepts up to eight PCIe Gen5 x4 E1.S NVMe SSDs as data cache alongside two M.2 SATA boot drives. Larger capacities in the same FIPS SED family are available as UCSAI-NVES7T6M1VE= (7.68TB) and UCSAI-NVES15TM1VE= (15.36TB).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PCIe Gen5 NVMe performance for AI data-cache workloads
- FIPS-capable self-encrypting drive using TCG Opal 2.02
- Digitally signed firmware (FIPS 186-5)
- Enterprise power-loss protection and OCP 2.0 end-to-end data protection
- Hot-plug capable with surprise insertion and removal support
- SMART monitoring with field-upgradeable firmware and activation without reset
- OCP 2.0 Datacenter NVMe SSD compliance with OCP 2.5 telemetry features

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 3.84TB (3840GB unformatted)
- Form factor: E1.S 15mm (33.75 x 118.75 x 15 mm)
- Interface: PCIe Gen5 x4, single port, NVMe 2.0b
- Underlying drive family: Micron 9550 PRO, read intensive, 1 DWPD
- Micron MPN: MTFDLCE3T8THA-1BK1DFCYY
- Sequential read (128KB): up to 14,000 MB/s
- Sequential write (128KB): up to 10,000 MB/s
- Random read (4KB): up to 3,300 KIOPS
- Random write (4KB): up to 720 KIOPS
- Typical latency (QD1): read 60 us, write 10 us
- Endurance (4K random): 7,008 TBW
- Endurance (128K sequential): 29,400 TBW
- Sector size: 512-byte on this SKU (512 / 4096 configurable)
- Security: FIPS 140-3 L2 certifiable, TCG Opal 2.02 SED, digitally signed firmware
- Power supply: 12V +/-10%, AUX 3.3V +/-15%
- Active read power: 18 W maximum
- Active write power: 19 W maximum
- Idle power: 5 W average
- MTTF: 2.0M hours at 0 to 55 C, 2.5M hours at 0 to 50 C
- UBER: less than 1 sector per 10^17 bits read
- Operating temperature: 0 to 70 C (measured by SMART)

FAQs

Q: Which server is this SSD designed for?
A: It is listed for the Cisco UCS C880A M8 AI rack server, which supports up to eight PCIe Gen5 x4 E1.S NVMe SSDs as data cache plus two M.2 SATA boot drives.

Q: Does this drive support self-encryption?
A: Yes. It is a self-encrypting drive using TCG Opal 2.02 and is FIPS 140-3 Level 2 certifiable, with digitally signed firmware.

Q: How does this SKU differ from the other UCSAI E1.S drives?
A: This is the 3.84TB FIPS SED model. UCSAI-NVES7T6M1VE= is the 7.68TB FIPS SED model, UCSAI-NVES15TM1VE= is the 15.36TB FIPS SED model, and UCSAI-NVES3T8M1V= is the non-SED 3.84TB model.

Q: What power does the drive draw?
A: It runs from a 12V main rail with 3.3V AUX. Maximum active power is 18 W for reads and 19 W for writes, with 5 W average at idle.

Q: What is the endurance rating?
A: This 1 DWPD read-intensive model is rated for 7,008 TB written with 4K random writes and 29,400 TB with 128K sequential writes.
