Cisco

Cisco UCSAI-M2-960G | UCS C880A M8 960GB M.2 SATA Boot SSD, Micron G2

UCSAI-M2-960G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

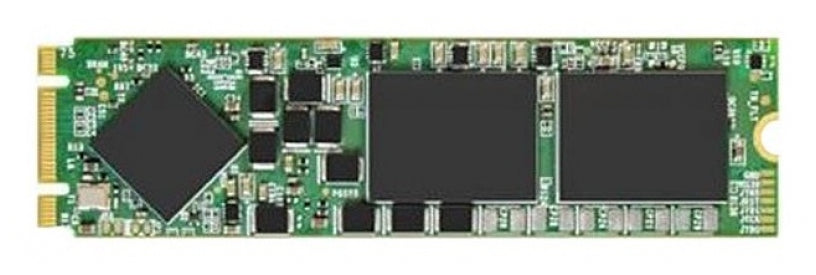

This 960GB M.2 SATA solid-state drive from Micron is the boot device for the Cisco UCS C880A M8 AI rack server. It is intended for OS and hypervisor boot volumes on GPU-dense AI servers, and is typically deployed as a mirrored pair.

The drive offers 960 GB of capacity in an M.2 SATA form factor and is a Micron G2 SSD. Up to two drives are installed per UCS C880A M8 server on the M.2 module, managed by the UCSAI-M2-HWRAID Cisco boot-optimized M.2 RAID controller, which supports RAID 0 and RAID 1. Using M.2 boot drives frees the front E1.S NVMe bays, up to eight PCIe Gen5 x4 slots, for data cache.

The drive takes its power from the host server, so no separate power connection is needed. It is designed for the Cisco UCS C880A M8 Rack Server, a 10RU platform with eight NVIDIA HGX B300 NVL8 GPUs and two 6th Gen Intel Xeon processors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated boot drive for the UCS C880A M8 AI server platform
- Pairs with the Cisco boot-optimized M.2 RAID controller for RAID 0/1 mirroring of the boot volume
- Frees the front E1.S NVMe bays (up to 8x PCIe Gen5 x4) for data cache
- Micron G2 SSD with 960 GB capacity in a compact M.2 SATA form factor
- Suited to OS and hypervisor boot volumes on GPU-dense AI servers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSAI-M2-960G
- PID description: 960GB M.2 SATA Micron G2 SSD
- Capacity: 960 GB
- Form factor and interface: M.2 SATA
- SSD type: Micron G2
- Role: Boot drive
- Drives per server: up to 2
- Companion controller: UCSAI-M2-HWRAID Cisco boot-optimized M.2 RAID controller
- RAID support: RAID 0/1 via the M.2 RAID controller
- Host platform: Cisco UCS C880A M8 Rack Server (10RU, 8x NVIDIA HGX B300 NVL8, two 6th Gen Intel Xeon processors)
- Power: drawn from the host server

FAQs

Q: Which server is this M.2 SSD designed for?
A: It is designed for the Cisco UCS C880A M8 Rack Server, using the UCSC-880A-M8-B300 and B303 server nodes.

Q: Do I need a RAID controller to use it?
A: The drives are managed by the UCSAI-M2-HWRAID Cisco boot-optimized M.2 RAID controller, with one controller per server. It supports RAID 0 and RAID 1 across the M.2 drives.

Q: How many of these drives can be installed in one server?
A: Up to two 960GB M.2 SATA drives can be installed per UCS C880A M8 server, commonly mirrored as a RAID 1 pair for the boot volume.

Q: Does it need its own power supply?
A: No. The drive is powered by the host server, so there is no separate power requirement.

Q: What is it typically used for?
A: It serves as the OS and hypervisor boot drive, which leaves the front E1.S NVMe bays free for data cache.
