Cisco

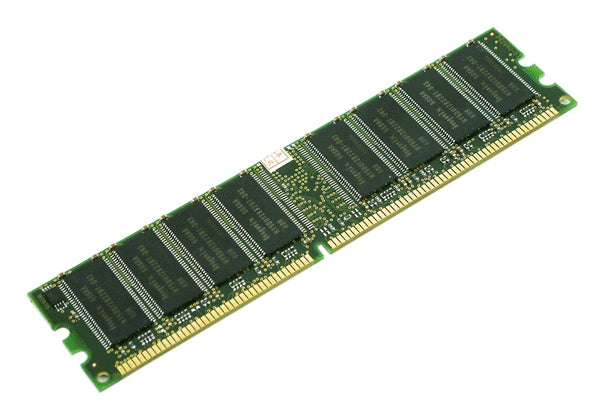

Cisco UCS-MR2X32G1RE5 | UCS M8 64GB (2x 32GB) DDR5-6400 RDIMM Memory, 1Rx4

UCS-MR2X32G1RE5

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco UCS M8 memory kit is a matched pair of two 32GB DDR5-6400 registered DIMMs, giving 64GB in total. It is designed for Cisco UCS M8 servers built on Intel Xeon 6 processors, and suits memory upgrades or expansion in virtualisation, database, AI, analytics and general data-centre workloads.

Each module is a 32GB 1Rx4 RDIMM using 16Gb DRAM and running at 1.1 V. On Intel Xeon 6 CPUs the memory runs at up to 6400 MT/s with one DIMM per channel, dropping to up to 5200 MT/s when two DIMMs per channel are populated. For the 32GB 1Rx4 option, the allowed DIMM count is 8 per server with one CPU and 16 with two CPUs.

The modules are powered from the host server and need no separate supply. All DIMMs in a system must be the same DDR5 RDIMM type, every CPU socket should be populated identically, and slot 1 of each channel is filled first. Check the specific server specification sheet for supported DIMM counts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Matched pair of two 32GB DDR5-6400 RDIMMs
- DDR5 operation at 1.1 V
- Designed for Cisco UCS M8 servers using Intel Xeon 6 CPUs
- Suitable for 64GB and 32GB RDIMM population in balanced configurations
- Balanced population required, with every CPU socket configured identically
- Powered from the host server, no separate power supply needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Kit capacity: 64GB (2 x 32GB matched pair)
- Capacity per DIMM: 32GB
- DIMM type: DDR5 RDIMM (registered)
- Speed: 6400 MT/s at 1 DIMM per channel
- Speed at 2 DIMMs per channel: up to 5200 MT/s
- Operating voltage: 1.1 V
- DRAM density: 16Gb
- Rank and organisation: 1Rx4
- Memory channels: eight per CPU, up to 2 DIMMs per channel
- Allowed DIMM count for the 32GB 1Rx4 option: 8 (1-CPU), 16 (2-CPU)
- Supported servers: C220 M8, C240 M8, X210c M8
- SDDC/ADDDC RAS: not supported on x8 DIMMs

FAQs

Q: Which servers does this memory work with?
A: It is intended for Cisco UCS Intel M8 servers, including the C220 M8, C240 M8 and X210c M8 compute node. Check the specific server specification sheet for supported DIMM counts.

Q: What speed does it run at?
A: It runs at up to 6400 MT/s with one DIMM per channel on Intel Xeon 6 CPUs. With two DIMMs per channel the maximum speed is 5200 MT/s.

Q: Can I mix it with other memory types in the same server?
A: No. All DIMMs in a system must be the same type, so DDR5-6400 RDIMMs should not be mixed with other DIMM types. Every CPU socket should also be populated identically.

Q: How many DIMMs can I install?
A: For the 32GB 1Rx4 option the allowed count is 8 DIMMs with one CPU and 16 DIMMs with two CPUs. Populate slot 1 of each memory channel first.

Q: How does this differ from a single 32GB DIMM?
A: This SKU is sold as a matched pair of two 32GB 1Rx4 DDR5-6400 RDIMMs, giving 64GB in total, rather than a single module.
