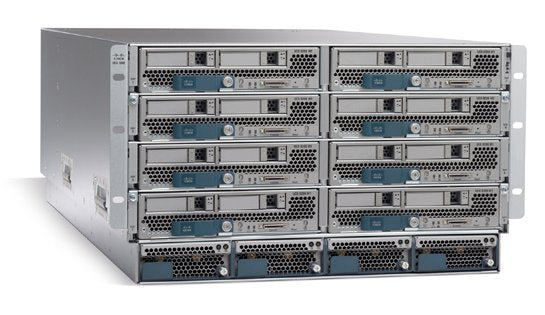

Cisco UCS-MINI-SEED-5108 | UCS Mini 5108 AC2 Blade Chassis, UCS 6324 FI, No Blades
SKU:UCS-MINI-SEED-5108
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The UCS Mini seed bundle pairs a Cisco UCS 5108 AC2 blade chassis with UCS 6324 in-chassis Fabric Interconnects in its two I/O bays, supplied without blades. It is the starting point for a self-contained UCS Mini domain and suits branch and remote offices, point-of-sale sites and other small-footprint deployments that do not want separate external fabric interconnects.
The 6RU chassis provides eight half-width blade slots, or four full-width slots, with up to four hot-swap power supplies supporting N, N+1 and N+N grid redundancy. Eight hot-swap fan modules cool the chassis, and the midplane delivers 1.2 Tbps of aggregate throughput, with support for up to 80 Gb Ethernet to each half-width blade slot. The UCS 6324 combines Fabric Extender and Fabric Interconnect functions in one module and connects uplinks directly to an external switch. The chassis is managed by Cisco UCS Manager 3.0 or higher.
The chassis supports Cisco UCS B200 M3/M4 and B420 M3/M4 blades. The UCSB-PSU-2500ACDV power supply delivers 2500 W at 200-240 VAC or 1300 W at 100-120 VAC.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- UCS Manager consolidates management into the chassis, making it stateless
- Unified fabric reduces the NICs, HBAs, switches and cables required
- UCS 6324 combines Fabric Extender and Fabric Interconnect functions in one plug-in module
- Up to two 6324 Fabric Interconnects for redundancy or bandwidth aggregation
- Chassis Management Controller regulates fan speeds to hold airflow to the minimum needed
- Hot-swappable power supplies, fans, blades and fabric interconnects
- Auto-discovery of components by UCS Manager
- Tool-free installation with mounting rails
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Chassis: Cisco UCS 5108 AC2, 6RU rack-mount
- Blade capacity: up to 8 half-width or 4 full-width blades, or combinations
- Blades: none supplied
- Fabric Interconnect slots: 2, compatible with the Cisco UCS 6324
- Power supplies: up to 4 hot-swap, N, N+1 and N+N grid redundancy
- Fans: 8 hot-swap fan modules, each with 2 redundant fans
- Midplane throughput: 1.2 Tbps aggregate, 10BASE-KR for 8 blades
- PSU output (UCSB-PSU-2500ACDV): 2500 W at 200-240 VAC, 1300 W at 100-120 VAC
- PSU efficiency: 80Plus Platinum
- PSU input connector: IEC320 C20
- Chassis dimensions (H x W x D): 26.7 cm x 44.5 cm x 81.2 cm
- Chassis weight: 40.83 kg empty, 115.66 kg fully configured
- UCS 6324 FI dimensions (H x W x D): 19.41 cm x 3.45 cm x 18.29 cm
- UCS 6324 FI weight: 1.13 kg
- Operating temperature: 10 to 35 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 10 to 90% non-condensing
- Operating altitude: 0 to 3,000 m
- Management: Cisco UCS Manager 3.0 or higher
- Regulatory: CE, FCC Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR22
FAQs
Q: Does this chassis need a separate licence?
A: It is managed by Cisco UCS Manager 3.0 or higher. Fabric Interconnect functions are provided by the in-chassis UCS 6324 modules, so no separate external fabric interconnects are needed.
Q: Which blades can I install?
A: The chassis supports Cisco UCS B200 M3/M4 and B420 M3/M4 blades. UCS Manager 3.1 or higher is required for the B420 M4.
Q: What power does the chassis need?
A: It supports up to four hot-swap power supplies in N, N+1 or N+N grid redundancy. The UCSB-PSU-2500ACDV delivers 2500 W at 200-240 VAC or 1300 W at 100-120 VAC.
Q: How does the UCS 6324 connect to the network?
A: The UCS 6324 connects uplinks directly to an external switch such as a Nexus, so the domain is self-contained and needs no external fabric interconnects.
Q: How does this SKU differ from other UCS 5108 chassis options?
A: This SKU is the AC2 chassis bundled with UCS 6324 Fabric Interconnects and supplied without blades, as the seed for a UCS Mini system.
